Place of Origin:
China
Brand Name:
Lijiang
Certification:
CE
Model Number:
LJZK 2025

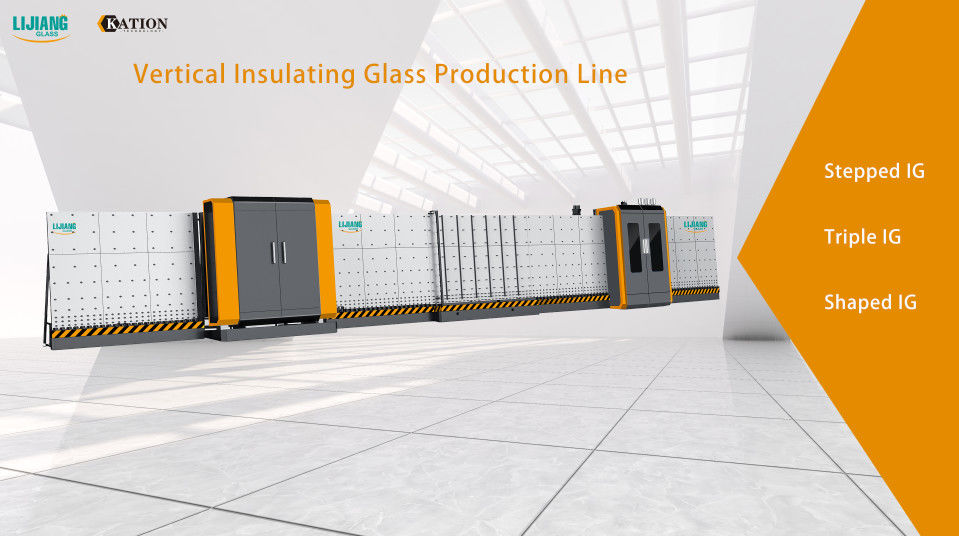

Double Glass Insulating Machine Double Building Low E Insulation Glass Machine
The insulated glass machine can complete the following functions: glass cleaning, placement of aluminum frame, normal double glazing, normal 3 glazing, molded glass and second pressing of double glazing.
Insulated glass machinery is a special equipment in the production of aluminum strip insulated glass, which has the advantages of small footprint, high efficiency, reliable performance, and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, easy and intelligent operation.
2, the world-famous brand of major components guarantees stable operation and long service life.
3, Designed for high quality glass processing such as reflective glass, Low-E glass, tempered glass and laminated glass.
4, large glass processing scale, various models and customization available;
5, big output capacity, 1,000 output in one business day;
6, Can be used for double layer, triple layer, stepped sheet and abnormal shaped insulating glass.
7, automatic argon air gas filling during the glass sheet assembly process;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
