Place of Origin:
China
Brand Name:
Lijiang
Certification:
CE
Model Number:
LJZK 2535

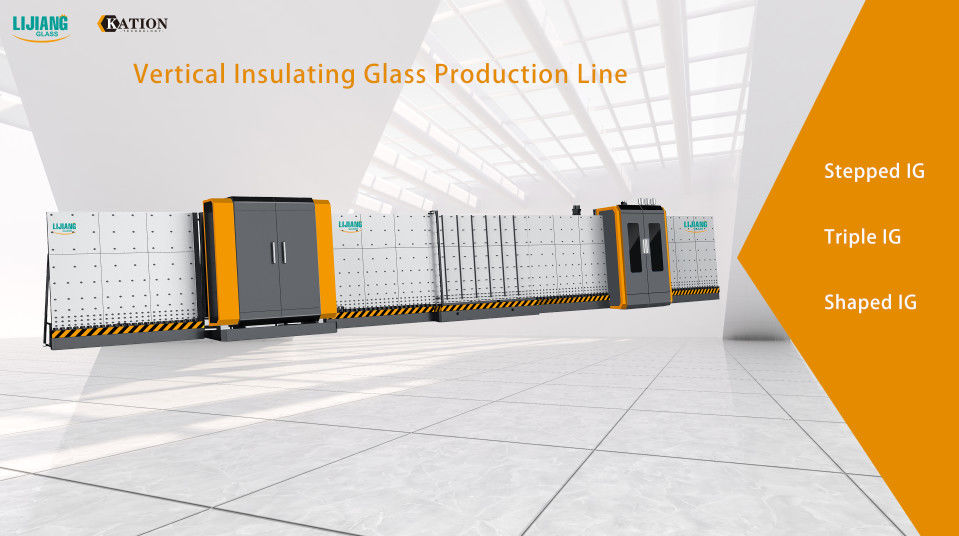

insulating glass line double glass insulating production line
The insulating glass machine can complete the following tasks: cleaning the glass, positioning the aluminum frame, ordinary double glass, three ordinary glasses, shaped glass and second pressing of the double glass.
Insulating glass machine The machine specializes in the production of insulating glass with aluminum strips, which has the advantages of a small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, Europe design concept, easy and intelligent operation;
2, key components of the world famous brand, ensure stable operation and long life;
, Designed for the processing of high quality glass, such as reflective glass, low glass and, tempered glass and laminated glass;
, Measurement of large glass processing, various models and customizations available;
,, Large output capacity, 1,000 pieces in one business day;
Suitable for double layer, triple layer, stepped sheet and unusual shaped insulating glass;
, When the automatic assembly process of the argon air gas filling glass plate;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
