Place of Origin:
China
Brand Name:
Lijiang
Certification:
CE
Model Number:
LJZK 2535

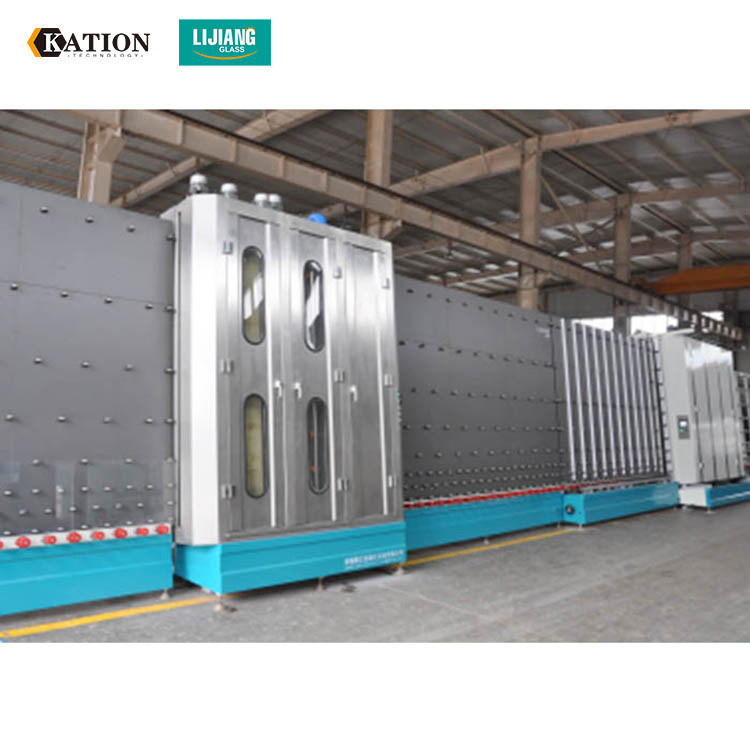

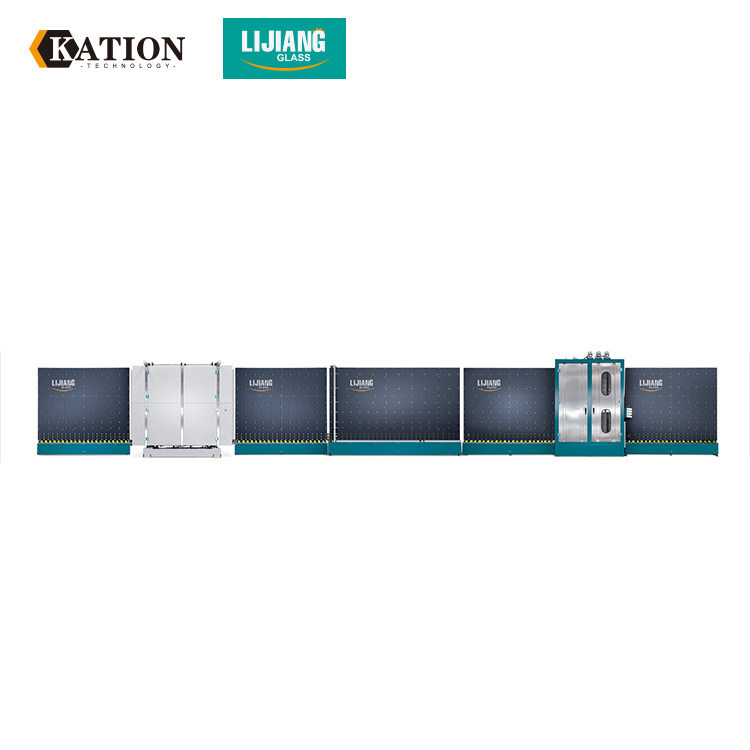

The fast insulating glass line low-e insulating glass production line
The non-insulating glass machine can perform the following functions: glass cleaning, aluminum frame placement, double-sided glass, simple three-glass, shaped glass and double-pressing glass.
Non-insulating glass machine is a special tool for the production of aluminum strip insulating glass, which has the advantages of small traces, high efficiency, reliable operation and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, simple and smart work;
2, world-famous brands of key components, ensure stable operation and long service life;
3, For high-quality processing of glass, such as reflective glass, Low E glass, tempered glass and laminated glass;
4, large scale of glass processing, there are different models and configurations;
5, large output power, 1000 units per working day;
6, for double-layer, triple-layer, stepped sheet and unusually shaped insulating glass;
7, automatic filling of argon with air during glass sheet assembly;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
