Place of Origin:
China
Brand Name:
Lijiang
Certification:
CE
Model Number:
LJZK 2535

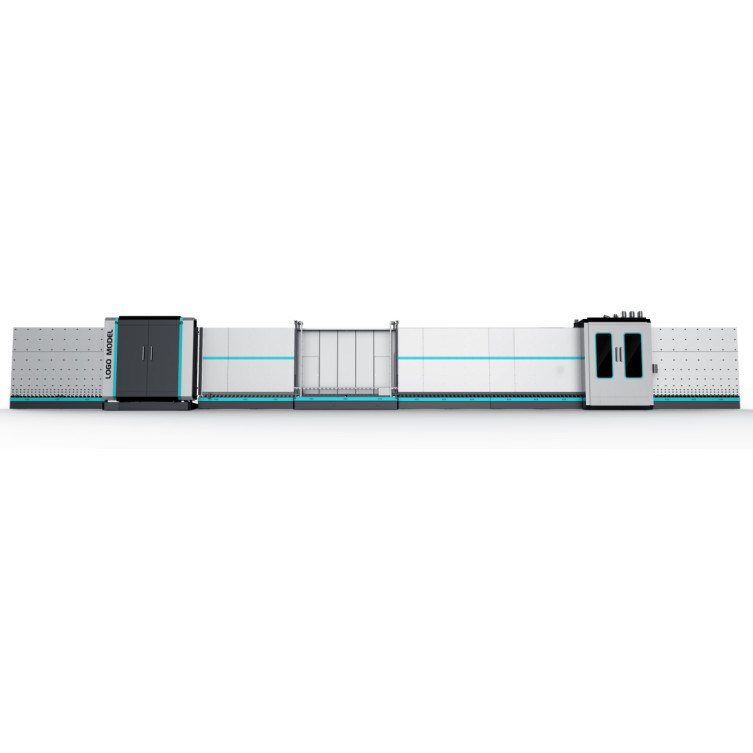

windows insulation glass machine vertical insulating glass production line
The insulating glass machine can perform the following functions: Glass cleaning, Aluminum frame placement, normal double glazing, ordinary triple glazing, shaped glass and double glazing.
Insulating glass machine is a special device in the production of aluminum strip insulating glass with the advantage of small footprint, high productivity, reliable performance and convenient service.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, easy and smart operation;
2, world-famous brands of key components, ensure stable performance and long service life;
3, Designed for high quality glass processing such as reflective glass, Low E glass, tempered glass and laminated glass;
4, wide glass processing scale, various models and customization are available;
5, Large production capacity, output of 1000pcs per working day;
6, working for double layer, triple layer, stepped layer and abnormally shaped insulating glass;
7, automatic argon air gas filling in the glass sheet assembly process;
8, PLC control system, touch screen;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
