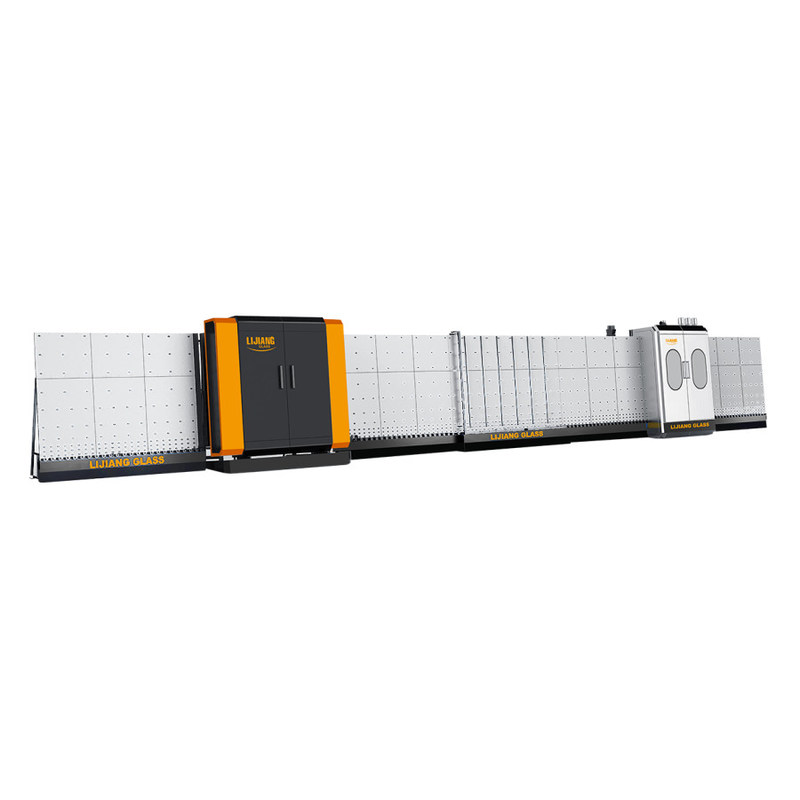

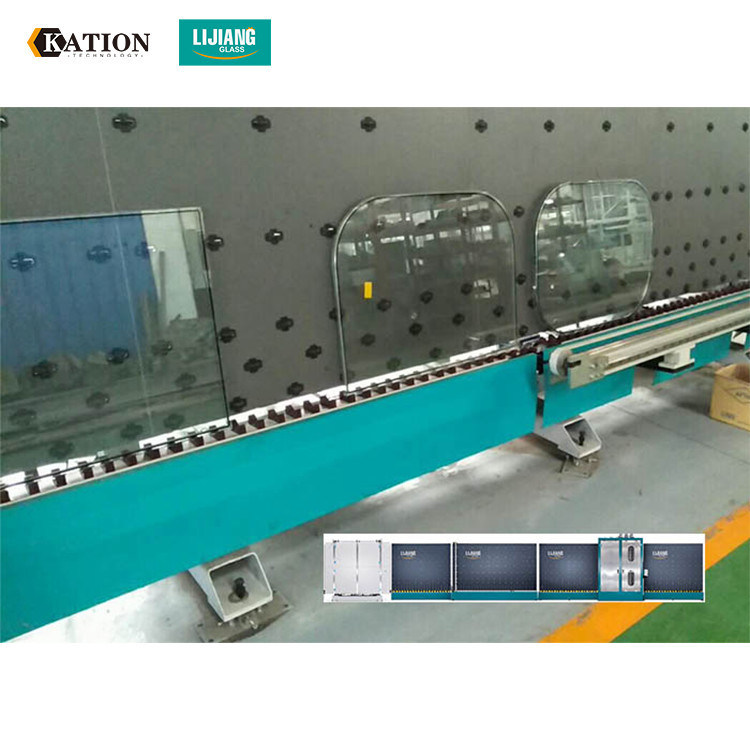

Product Details:
|
| Name: | 1.Vertical Insulating Glass Production Line | Water Supply: | Water Consumption:0.5t/h Conductivity：40μs/cm |
|---|---|---|---|
| Air Supply: | Flow: 0.8m/min | Air Pressure: | ≥0.8MPa |
| Total Power: | 3P 380V 50HZ 40KW | ||
| High Light: | 45m/min insulating glass machine,15mm double glazing glass machine,Siemens control Insulating glass equipment |
||
Main Features:
• Adopt SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Automatically adjust the depth of glue with digital display
• Using servo to control system, modular function, superposition function
• Applicable to produce stepped IG, triple IG and shaped IG
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Min & Max glass sizes can be optional
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
Main Features
• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%.
• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time.
• High-speed IG processing line
• Solving the problem of waiting for working on the sealing robot. Improve work efficiency highly.
• Installing two spacer frames for two IGU by one workman.
• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system.
• From transfer part to pressing part, each part is divided.
• Suitable for mass production in a factory, Ultra-fast speed.
JINAN KATION TRADING CO.,LTD.
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery and related
auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the
professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the
related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows
& doors solution for domestic and foreign customers well
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer
to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
