Place of Origin:
China
Brand Name:
LIJIANG
Certification:
CE
Model Number:
LJQX2500
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Servo motor | Japan | FUJI |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| NAME | ORIGIN | BRAND |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Transfer motor | Taiwan | LINHAI |
| Brush motor | Taiwan | LINHAI |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
1.There is the Low-e glass sensor in the washing machine
This sensor is installed before washing machine. It can automatically recognize Low-e glass surface fast and precisely, preventing the glass from dropping Low-e surface.
2.The washing machine uses 304 stainless steel materials
The entire washing and drying part is made of 304 stainless steel, including dinner plates and internal spare parts.

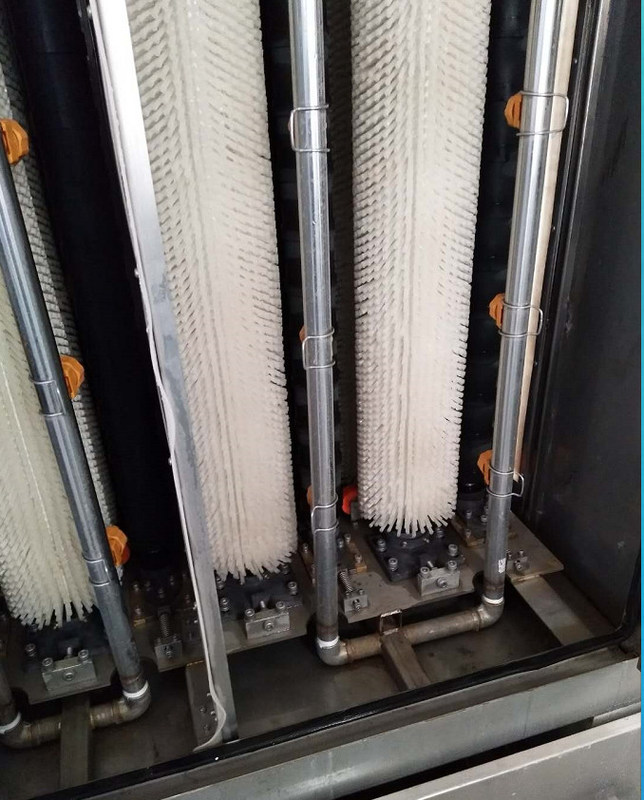

3.The washing machine uses six soft (Low-e) brushes with the 0.1mm diameter only.
It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.
4.Using Europe's advanced anti-noise system to create a good working environment for employees
The noise can be controlled below 90 decibels by using nylon gear and sponges.
