Place of Origin:
China
Brand Name:
Lijiang
Certification:
CE
Model Number:
LJXJ300

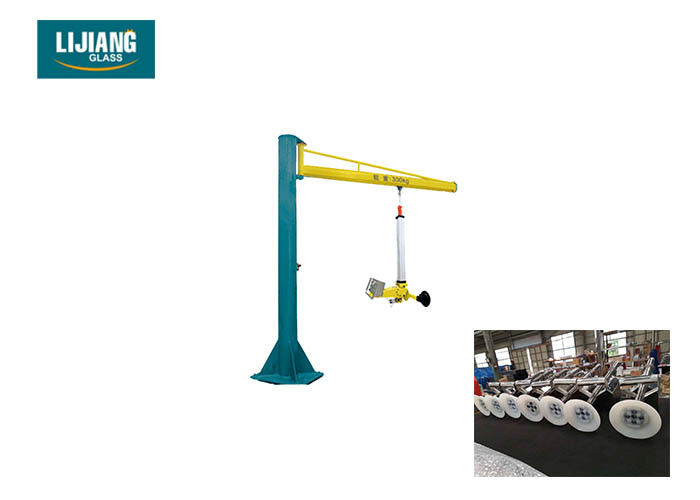

Cantilever crane LJXJ300

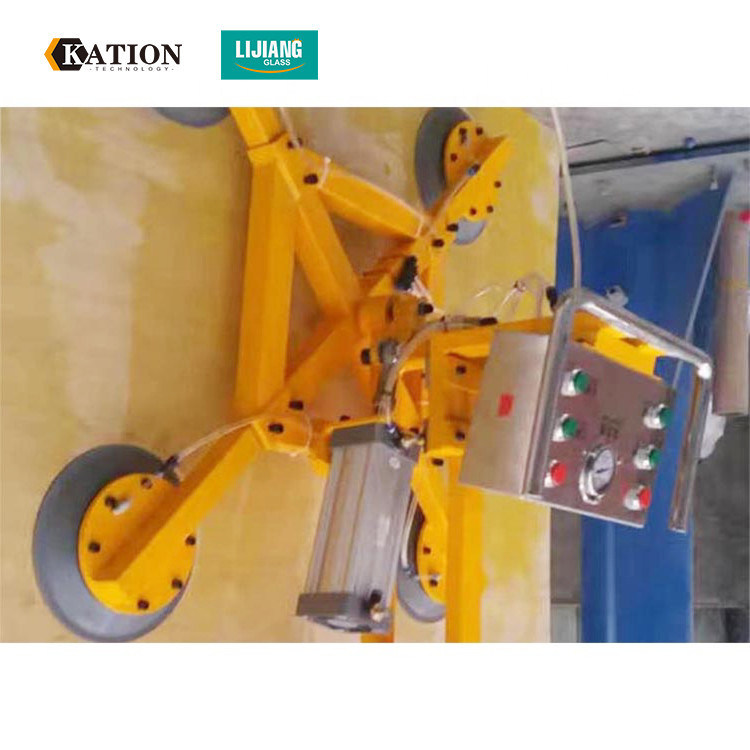

1. This vacuum glass lifter is for handling insulating glass sheet.
2. This glass lifter is able to lift the glass sheet with 800kg
3. It is equip with 5 suckers. But the sucker can be add according to need of the client.
4. The equipment is Stable, Easy to use and safe.
5. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
Parameter:
| Safety-absorption | 200KG/400kg/600kg/800kg |
| Performance | Rotation 0-90 degree and lifting 600-1200mm |
| Quantity and size of sucker | 2/4/6/8 |
| Working gas source | 5-8 Pa |
| Outer size | L 1120xW660XH620mm |
| Net weight | 550kg |
Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.

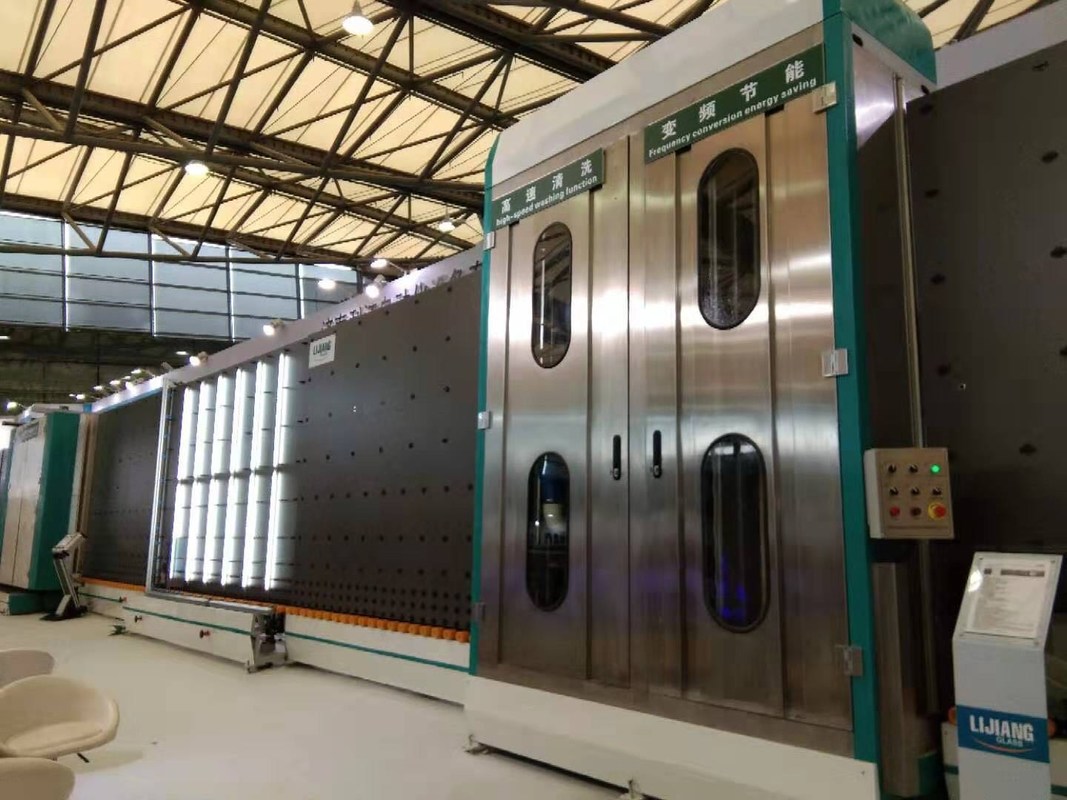

Glass Washing Machine LJLBQJ2500
• Using 6 pieces of soft brushes
• Wash online and offline low-e glass, automatically recognizes Low-e film
• Washing part adopts the design of upper and lower layered structure
• Adopt variable frequency fan, energy efficient, good cleaning effect
• The air knife can automatically adjust the width of the air knife according to the thickness
• Using intelligent intermittent energy-saving working methods
• Hierarchical type washing system
• Water tank automatic temperature control, water replenishing system
• European silencer system
• 304 stainless steel materials
