Product Details:
|
Name: | Two Component Sealant Spreading Machine | Working Air Pressure: | >0.6MPa |
---|---|---|---|
Sealant Volume: | 4L/min | Sealant Spreading Pressure: | 15-20MPa |
Diameter Of A/B Sealant: | 570mm/280mm | Sealant Spreading Air Pressure Ratio: | 50:1 |
Capacity Of The Glue Drum: | 200-300 Ml/200 Kg | ||
High Light: | Glass small extruder machine,4L/min silicone extruder machine |

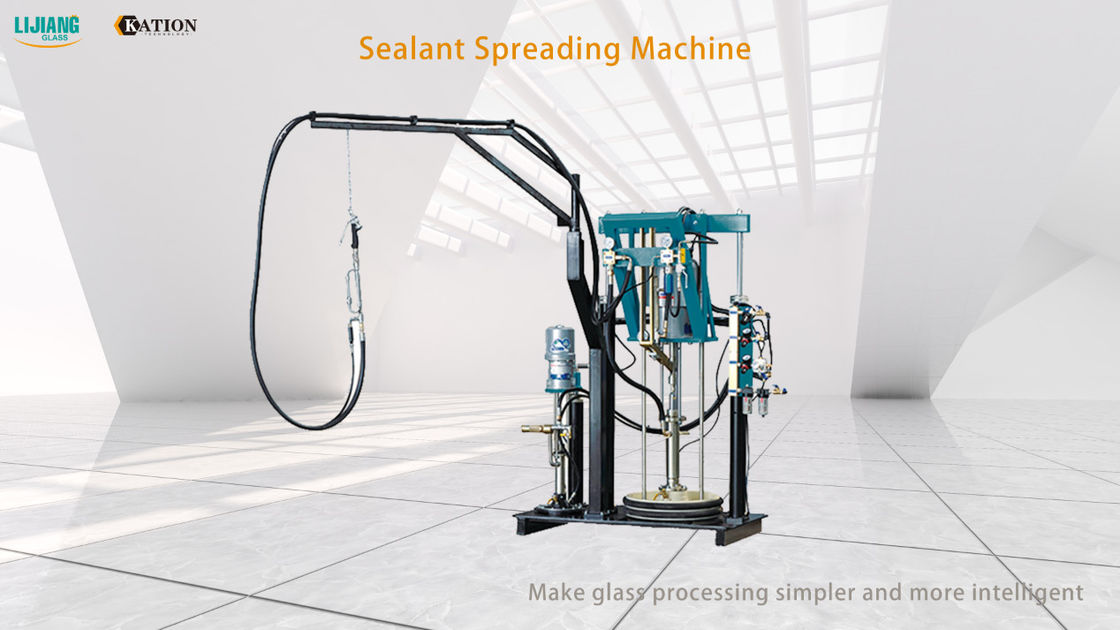

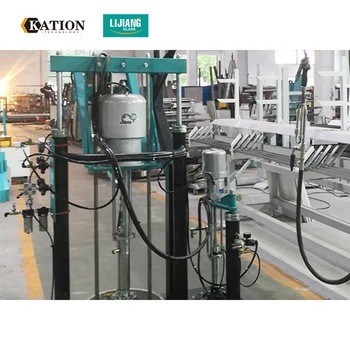

Description of Two component sealant spreading machine
Two pump Sealant-spreading Machine LJST03 is designed by advanced technology from abroad and inside of China.
Sealant-spreading Machine is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
The feature of Two pump sealant spreading machine
1.Sealant extruder machine is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
2.Pneumatic control ,split type structure ,easy to operate
3.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.
4.The rotating arm is equipped with a universal device, flexible and portable .
5.Special check valve in proportioning pump to make the sealant coming out more fluently , suitable for all kinds of sealant ,avoid incomplete mixing .
Main technical parameter of Silicone sealant spreading machine
Working air pressure | 0.3-0.6MPa |
Sealant spreading pressure | 15-20MPa |
Sealant volume | 4L/min |
Diameter of A/B sealant | 570mm/280mm |
Sealant spreading air pressure ratio | 50:1 |
Mixed rate | 6:1-14:1 |
Air supply | Flow 0.8m3/min |
Air pressure | ≥0.8MPa |
Overall dimension | 1100*950*1630mm |
Weight | 490kg |
Capacity of the glue drum | 200-300 ml/200 kg |
Related products
Rotated Sealant Spreading Table LJSK02
Technical data
Power supply | 380V 50Hz |
Total power | 0.37kw |
Operating dimension | 1500*1500mm |
Dimension | 600*550*985mm |
Main feature
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
Freezer LJSGF01
Main feature
• It is used for storing the gun when manual glue gun stop work during the process of gluing insulating glass
• Storing at low temperature,to prevent sealant solidify
• Apply to polysulfide and silicone
• Can be effectively reduced waste when cleaning the glue
Technical data
Max refrigerating temperature | 70ºC |
Min heating temperature | -40ºC |
Total power | 3.8kw |
Refrigerating | <150min |
Overall dimension | 1550*60*1300mm |
