Place of Origin:
China
Brand Name:
Lijiang
Certification:
CE
Model Number:
LJZK 2025

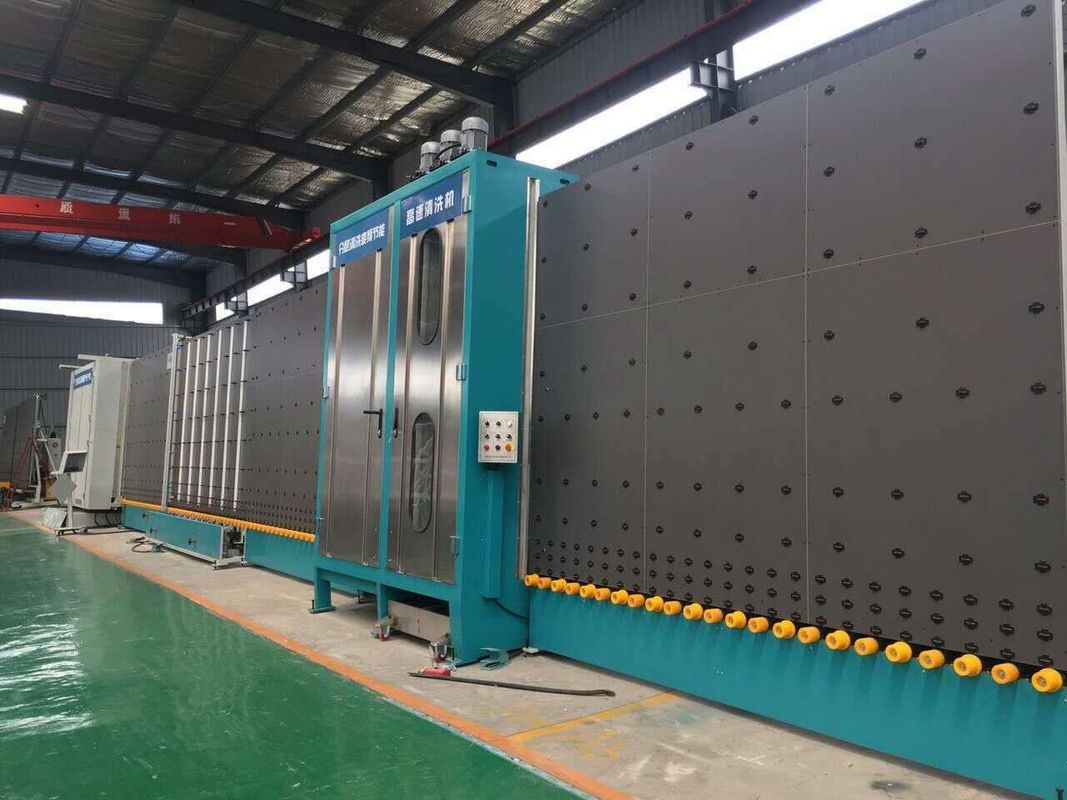

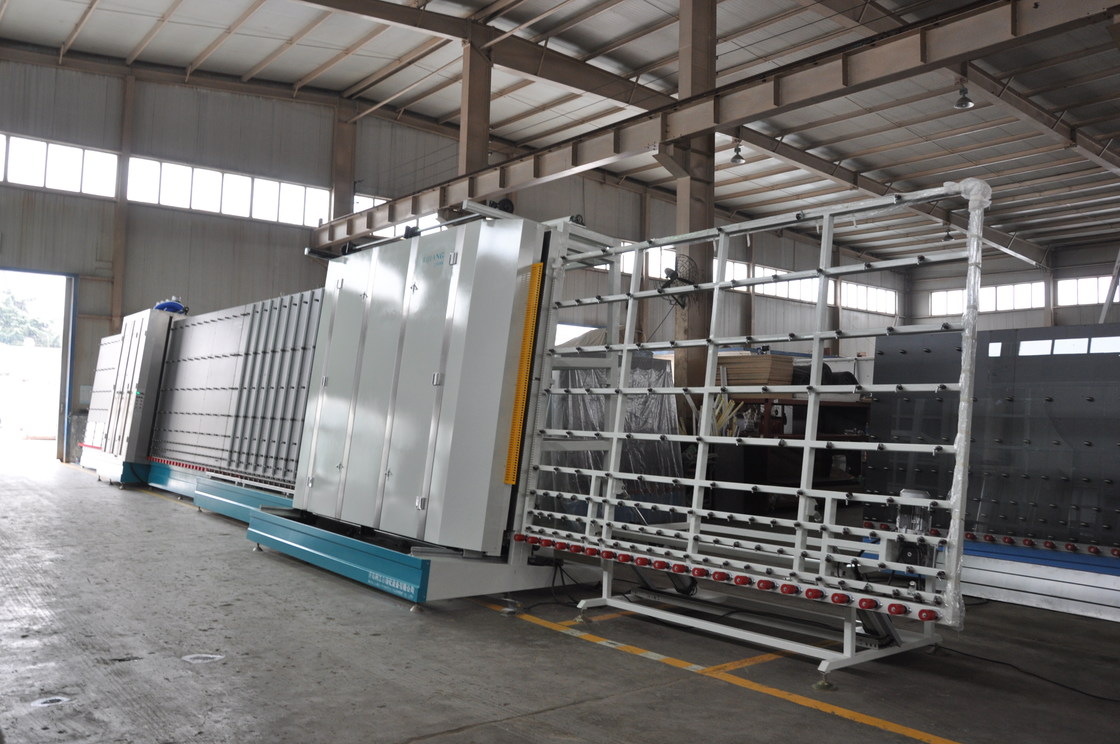

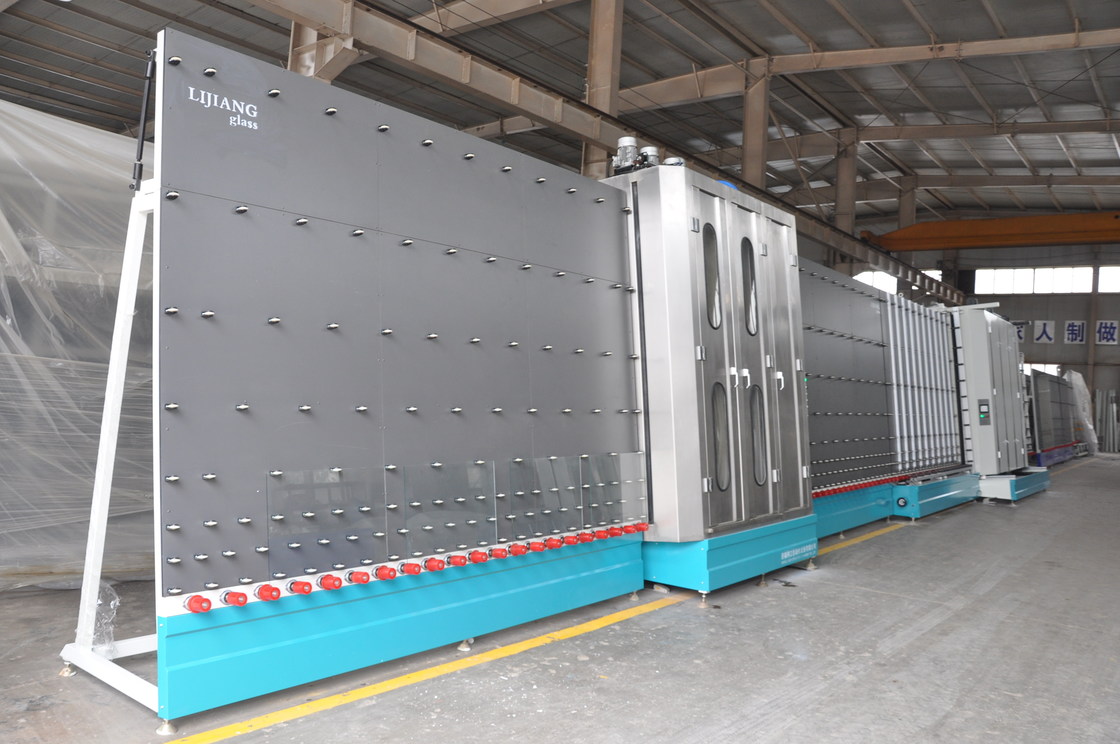

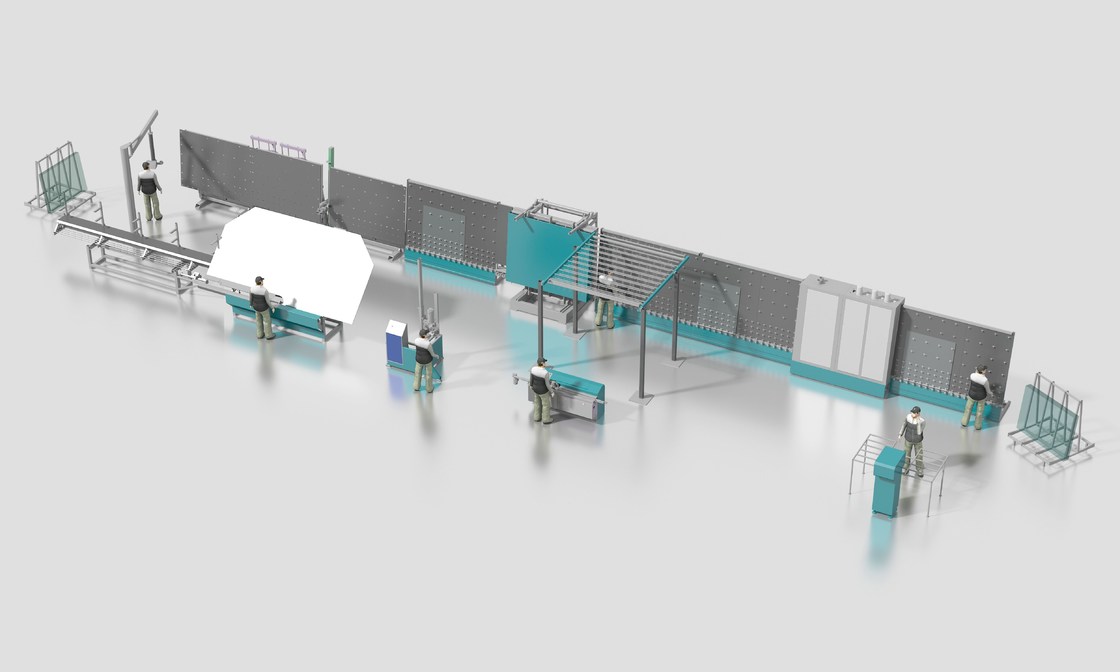

Silicone sealant insulating glass igu line with automatic gas filling
The insulated glass machine can do the following functions: cleaning glass, setting aluminum frame, plain double glass, three plain glass, shaped glass and second double pressure glass.
The insulated glass machine is a special equipment in the production of insulating glass for aluminum strip, which features small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, Europe design concept, easy and smart operation;
2, World famous brands of major components, ensuring stable operation and long service life;
3, Designed to handle high quality glass, such as reflective glass, low E glass, tempered glass and laminated glass;
4, large glass processing scale, various models and customization available;
5, Large production capacity, output 1000pcs in one working day;
6, practical for double layer, triple layer, gradient paper and abnormal insulating glass;
7, Automatic argon gas filling during the assembly of the glass panels;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
