Place of Origin:
China
Brand Name:
Lijiang
Certification:
CE
Model Number:
LJZK 2025

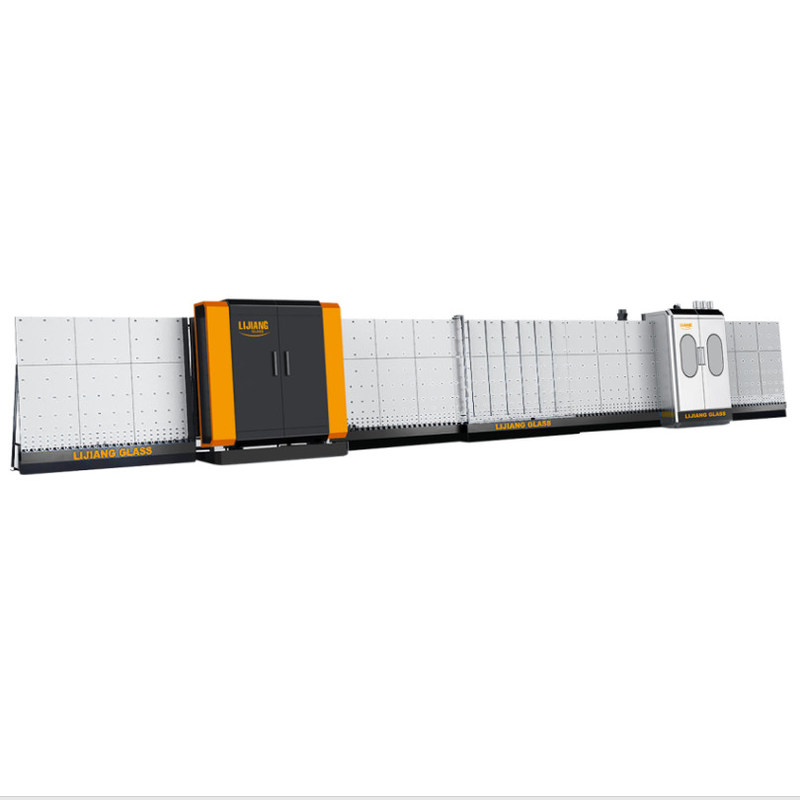

butyl extruder insulating glass process machine insulating glass line
Insulatiing glass machine can complete the following functions : Glass cleaning, Aluminum frame placement ,normal double glass, ordinary three glass, shaped glass and double glass second pressing.
Insulatiing glass machine is a special equipment in the production of aluminum strip insulating glass , which has the advantage of small footprint , high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, lightweight and intelligent work;
2, world-famous brands of key components that ensure stable operation and long service life;
3, Designed for processing high-quality glass, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4, Large scale glass processing, various models and settings are available;
5, large output power, output 1000 pcs. In one business day;
6, working for double layer, triple layer, stepped sheet and anomalous insulating glass;
7, automatic filling of argon air with gas during the assembly of a glass sheet;
8, PLC control system, touch screen;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
