Grinding Wheel Low E Coating Edge Deletion Machine

Grinding Wheel Low E Coating Edge Deletion Machine
Grinding Wheel Low E Coating Edge Deletion Machine Grinding Wheel Low E Coating Edge Deletion Machine Grinding Wheel Low E Coating Edge Deletion Machine Grinding Wheel Low E Coating Edge Deletion Machine

Large Image :  Grinding Wheel Low E Coating Edge Deletion Machine

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJCM2545
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 20set/month
Contact Now

Grinding Wheel Low E Coating Edge Deletion Machine

Description
Name: Low-e Deletion Machine Color: Can Be Request
Wearing Part: Grainding Weels Can Be Customized
High Light:

glass processing machines

,

double glazing production

Full Automatic Vertical Low-e Coating Edge Deletion Machine and High Quality Grinding wheel



Smart Vertical Low-e Edge Deleting Machine is specialized for low-e glass deleting edge with vertical structure and convenient production line connection.Transmission adopts imported servo control system, accurate positioning and smooth operation. High quality grinding wheels are durable and can produce neat and beautiful grinding crack. Distance can be set among 10 ~ 150 mm arbitrarily. This machine always work together with insulating galss production line and automatic glass cutting line without low-e deletion fuction.PLC and servo motors contrl system is usefut to make machine working stable and fast.

►Main feature

1.Two-way glass access

2.Auto measure the size and the thickness

3.Auto distinguish coating side of low-e glass(optional)

4.Auto-modified function

5.The pressure of edge deleting is stable and adjustable

6.Safety protection device auto-dedusting function

7.PLC control system,touch screen interface

8.Six servo control systems





Grinding Wheel Low E Coating Edge Deletion Machine 0

►Main technical parameter

Transmission speed 2~29m/min
Edge finish speed 2~29m/min
Glass thickness 3~15mm
Diameter of grinding wheel 200mm
Width of grinding wheel 10/12/15mm
Grinding wheel speed 0~3000r/min
Min.Glass 400×400mm
Max. Glass 2500×4000mm
Conveyor height 500mm
Total air consumption 100L/ min
Total weight 3700KG
Dimensions 9700×2500×3400mm

Grinding Wheel Low E Coating Edge Deletion Machine 1Grinding Wheel Low E Coating Edge Deletion Machine 2

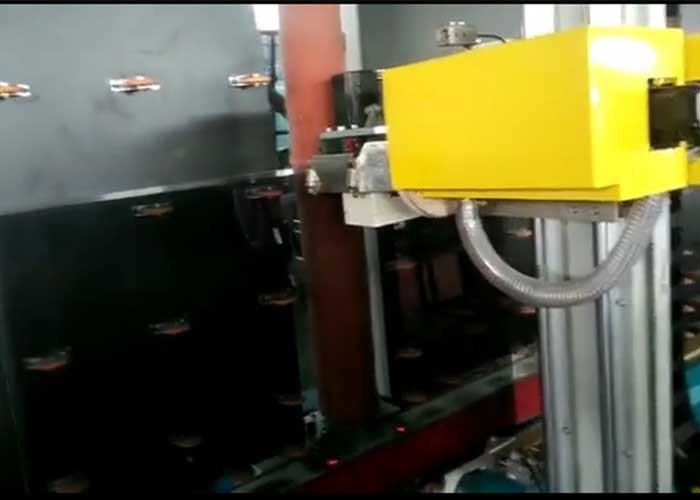

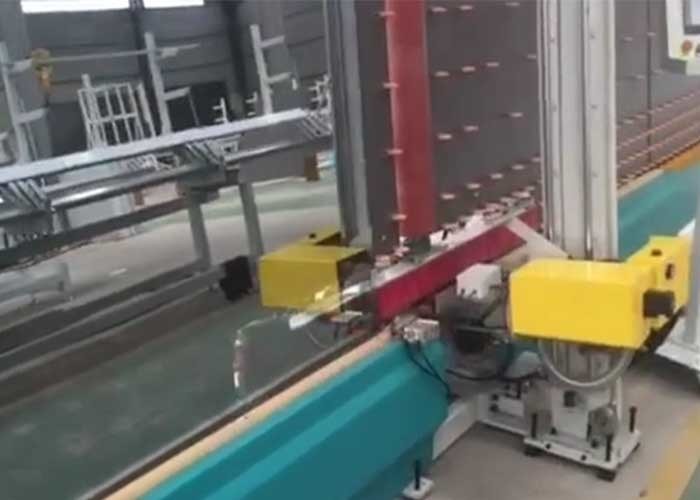

                               low-e coating deleting realult showing



Grinding Wheel Low E Coating Edge Deletion Machine 3

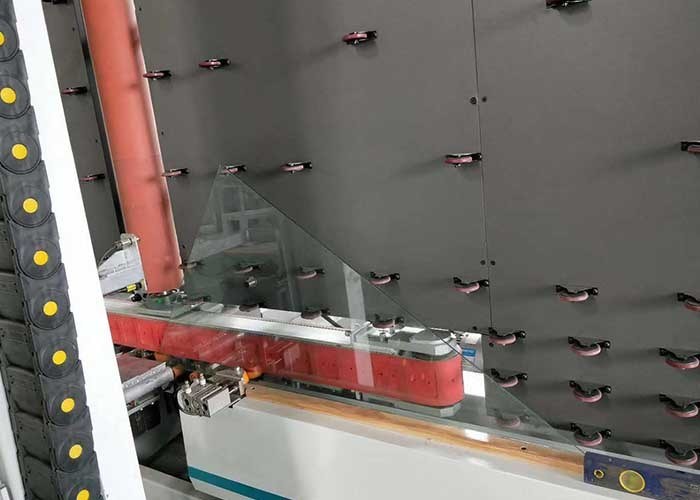

Grinding wheels for glass machine  can be customized

Products of special specifications can be customized.

Grinding Wheel Low E Coating Edge Deletion Machine 4Grinding Wheel Low E Coating Edge Deletion Machine 5



Abrasive wheel width:10/12/15mm
Edge deleting width:10-150mm
Edge deleting speed:0-15m/min
Grinding wheel speed:0~3000r/min
FAQ
Q: What is the system of Kation’s after sale service?
A: We has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Grinding Wheel Low E Coating Edge Deletion Machine 6Grinding Wheel Low E Coating Edge Deletion Machine 7Grinding Wheel Low E Coating Edge Deletion Machine 8Grinding Wheel Low E Coating Edge Deletion Machine 9
