Product Details:
|
Name: | Automatic Insulating Glass Production Line | Glass Thickness: | 3-15mm |
---|---|---|---|
Insulating Glass Thickness: | 50mm / 60mm | Glass Washing Speed: | 2-10m/min |
Air Pressure: | ≥0.8MPa | Name: | Insulating Glass Production Line |
Highlight: | glass processing machines,double glazing production |
APPLICATION

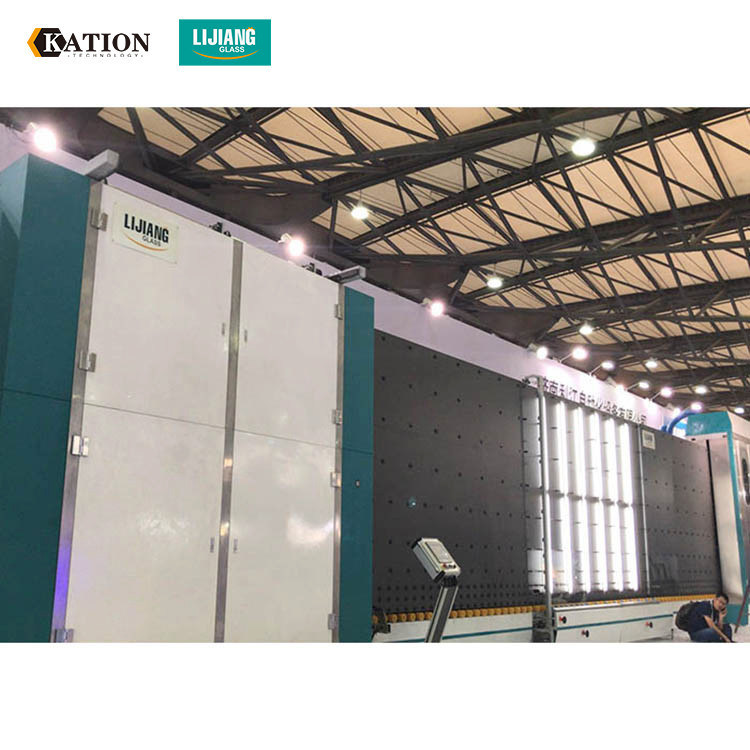

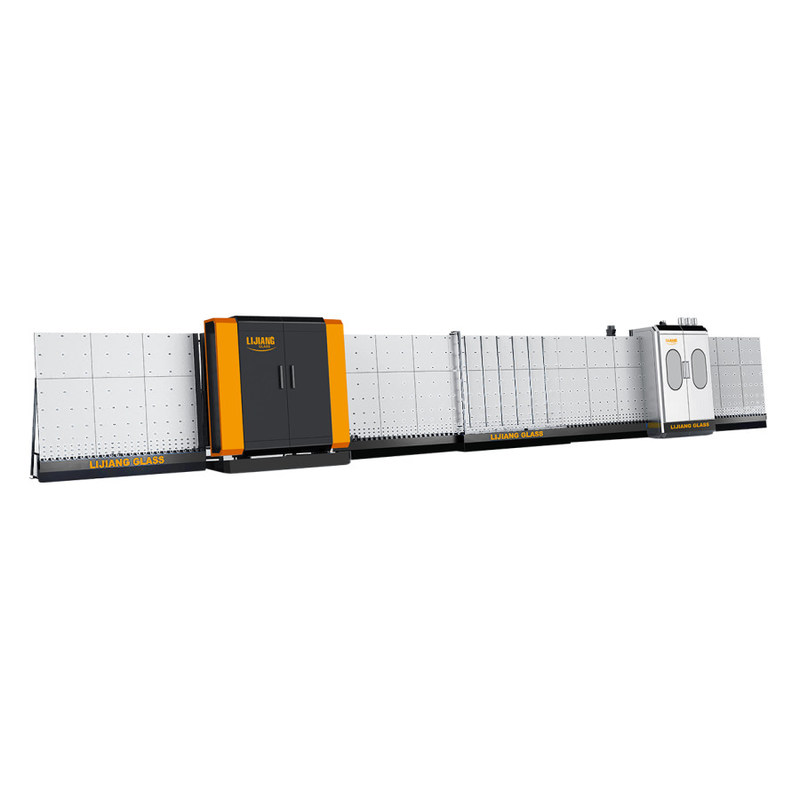

The Lijiang IG production line uses the latest technology. Its main purpose is to create high-end quality and provide a large number of useful functions, improve production efficiency, save production costs and generate maximum benefits.
Now Lijiang mainly has two hollow lines with different technologies. One is to use transfer wheels to transport glass, and the other is to use air floatation technology to transport glass. This new technology is to prevent the glass from being contaminated by the wheels and leaving traces, so new technology is adopted to improve the high quality of IG production.
Max. glass size | 2500mm*3500mm |
Min. glass size | 280mm*400mm |
Glass thickness | 3-15mm |
Insulating glass thickness | 50mm / 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
NAME | ORIGIN | BRAND |
Transfer motor | Germany | SIEMENS |
Brush motor | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
Touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
Electric gauge | China | MIRAN |
Photoelectric switch | Korea | AUTONICS |
