2~29m/Min Transmission Low E Edge Deleting Machine

2~29m/Min Transmission Low E Edge Deleting Machine
2~29m/Min Transmission Low E Edge Deleting Machine 2~29m/Min Transmission Low E Edge Deleting Machine 2~29m/Min Transmission Low E Edge Deleting Machine

Large Image :  2~29m/Min Transmission Low E Edge Deleting Machine

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJCM2545
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 10set/month

2~29m/Min Transmission Low E Edge Deleting Machine

Description
Name: Vertical Low-e Edge Deleting Machine Advantage: Servo Motor Control
Working Speed: 2-29m/m Type: Low E Edge Deleting Machine
High Light:

glass processing machines

,

double glazing production



            LIJIANG GLASS-SERVICE FOR GLASS MANUFACTURE IN THE WORLD



2~29m/Min Transmission Low E Edge Deleting Machine 0

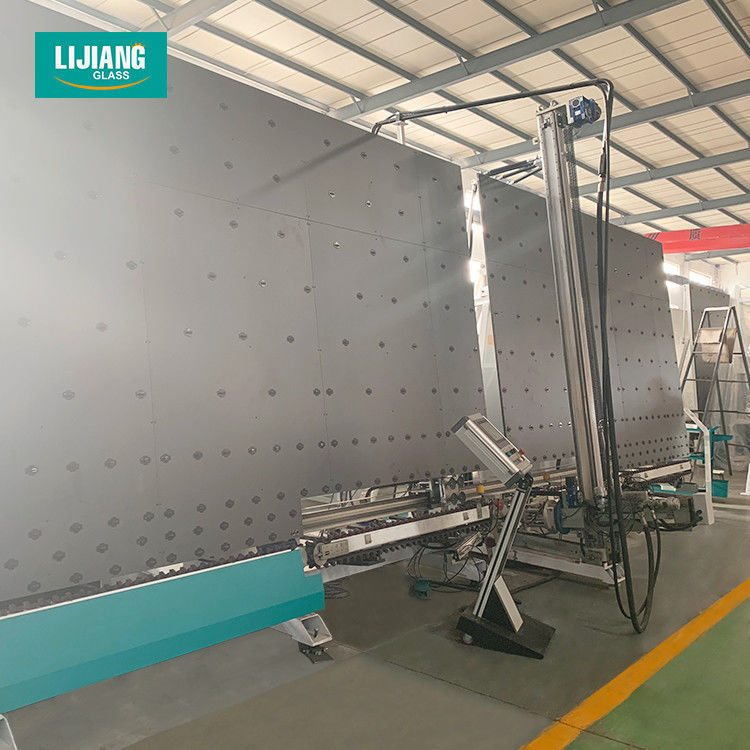

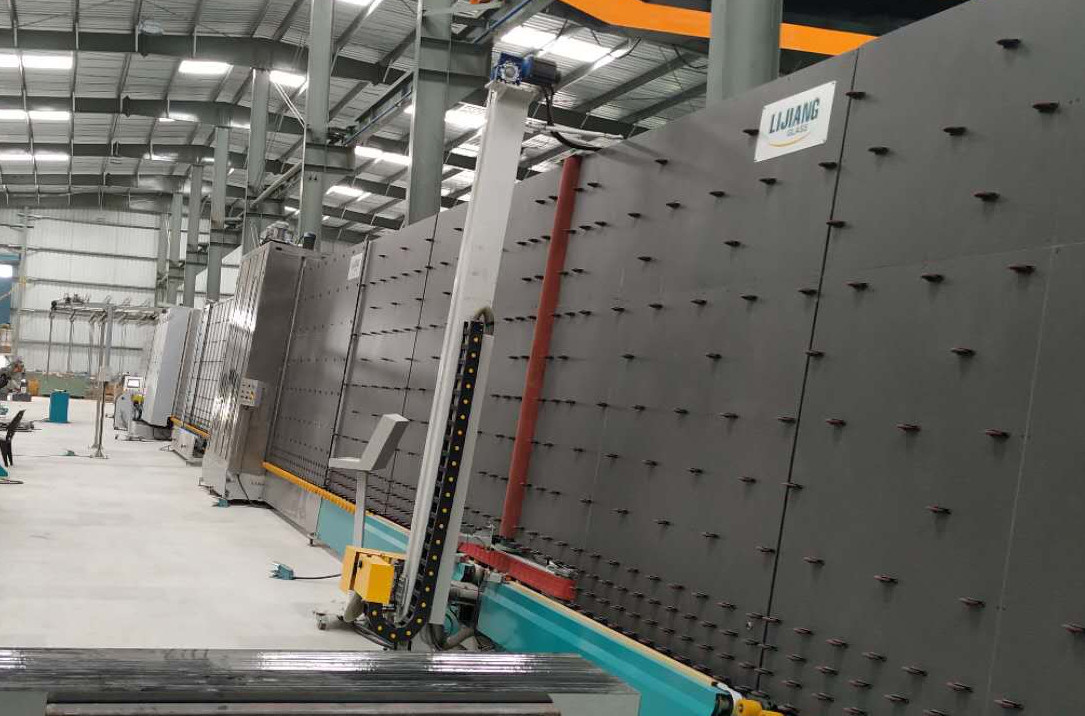

Smart Vertical Low-e Edge Deleting Machine is specialized for low-e glass deleting edge with vertical structure and convenient production line connection.Transmission adopts imported servo control system, accurate positioning and smooth operation. High quality grinding wheels are durable and can produce neat and beautiful grinding crack. Distance can be set among 10 ~ 150 mm arbitrarily. This machine always work together with insulating galss production line and automatic glass cutting line without low-e deletion fuction.PLC and servo motors contrl system is usefut to make machine working stable and fast.

►Main feature

1.Two-way glass access

2.Auto measure the size and the thickness

3.Auto distinguish coating side of low-e glass(optional)

4.Auto-modified function

5.The pressure of edge deleting is stable and adjustable

6.Safety protection device auto-dedusting function

7.PLC control system,touch screen interface

8.Six servo control systems



2~29m/Min Transmission Low E Edge Deleting Machine 1

►Main technical parameter

Transmission speed 2~29m/min
Edge finish speed 2~29m/min
Glass thickness 3~15mm
Diameter of grinding wheel 200mm
Width of grinding wheel 10/12/15mm
Grinding wheel speed 0~3000r/min
Min.Glass 400×400mm
Max. Glass 2500×4000mm
Conveyor height 500mm
Total air consumption 100L/ min
Total weight 3700KG
Dimensions 9700×2500×3400mm



►Main Parts
2~29m/Min Transmission Low E Edge Deleting Machine 2

2~29m/Min Transmission Low E Edge Deleting Machine 3

2~29m/Min Transmission Low E Edge Deleting Machine 4

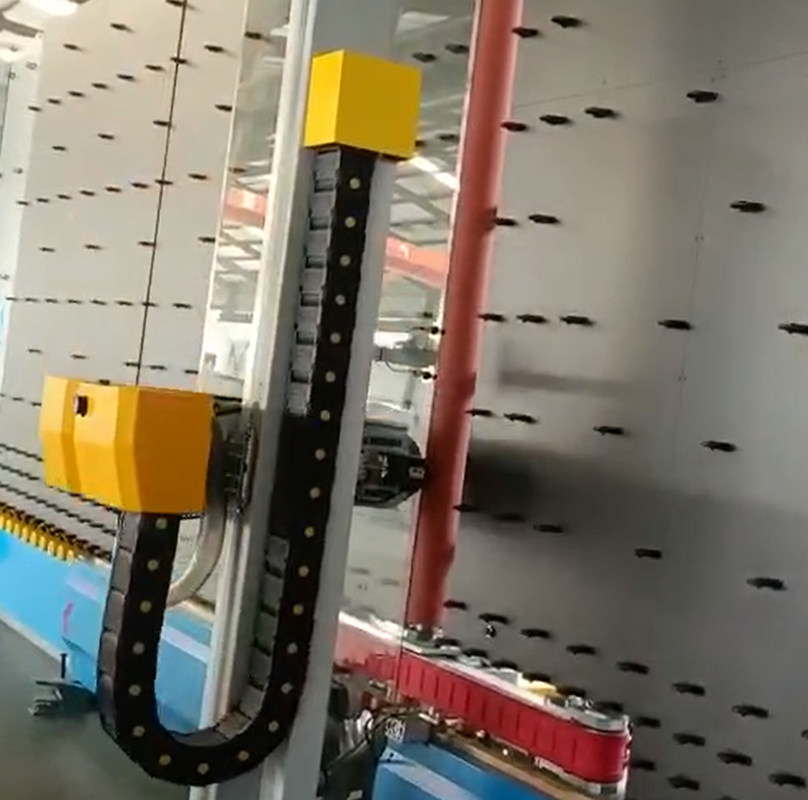

1,Transmission section

Two-way glass access,from left/right.

Auto-identification surface.

The width of edge deleting can be adjusted.

2~29m/Min Transmission Low E Edge Deleting Machine 52~29m/Min Transmission Low E Edge Deleting Machine 6





2,Electrical components

We adopt SIMENS and DELTA







2~29m/Min Transmission Low E Edge Deleting Machine 72~29m/Min Transmission Low E Edge Deleting Machine 8

Glass after edge deleting

2~29m/Min Transmission Low E Edge Deleting Machine 9



Low-E coating checking system





2~29m/Min Transmission Low E Edge Deleting Machine 10





Shape glass processing





2~29m/Min Transmission Low E Edge Deleting Machine 0

2~29m/Min Transmission Low E Edge Deleting Machine 12

Horizontal Glass Washing and Drying Machine for All Kinds of Glass LJWBQJ2500

Horizontal glass washing machine used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.



Structural characteristics



Maximum glass width 2500mm (effective maximum: 2650mm)
Minimum glass specification 400mm×400mm (limited to single row on left and right sides)
Glass thickness 3mm-25mm (digital display)
Speed range glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method frequency control
Table height 900±25mm
Total power 42KW(water-bearing wind heating: 15KW)
Water source self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source 380V 50Hz
Dimensions (length × width × height) Approximately 6260*4800*3100
Weight 3940kg


2~29m/Min Transmission Low E Edge Deleting Machine 13



2~29m/Min Transmission Low E Edge Deleting Machine 142~29m/Min Transmission Low E Edge Deleting Machine 152~29m/Min Transmission Low E Edge Deleting Machine 16

2,Electrical components

We adopt SIMENS and DELTA







2,Electrical components

We adopt SIMENS and DELTA
