Product Details:
|
Production Name: | Low-e Glass Deleting Machine | Max.glass Processing Size: | 2500*4500mm |
---|---|---|---|
Min.glass Processing Size: | 350*500mm | Glass Thickness: | 3-15mm |
Edge Deleting Width: | 10-150mm | Glass Conveyor Speed:: | 2-29m/min |
Edge Deleting Speed: | 0-15mm/min | Abrasive Wheel Width: | 10/12/15 |
High Light: | glass grinding equipment,glass edge polishing machine,Low E Glass Edge Deleting Machine |
Product overview of Glass Edge Deleting Machine

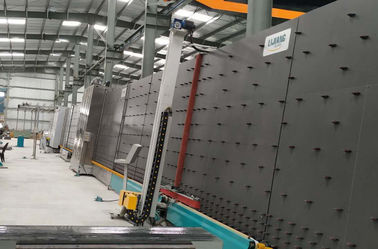

LJDM2545 smart vertical edge deleting machine is used to delete the edge film of the Low-e glass. The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation. High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Technical data of Automatic Glass Edge Deleting Machine
Max.glass processing size | 2500*4500mm |
Min.glass processing size | 350*500mm |
Glass thickness | 3-15mm |
Edge deleting width | 10-150mm |
Glass conveyor speed | 2-29m/min |
Edge deleting speed | 0-15m/min |
Abrasive wheel width | 10/12/15mm |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50Hz 13.35KW |
Dimension | 9700*2500*3400mm |

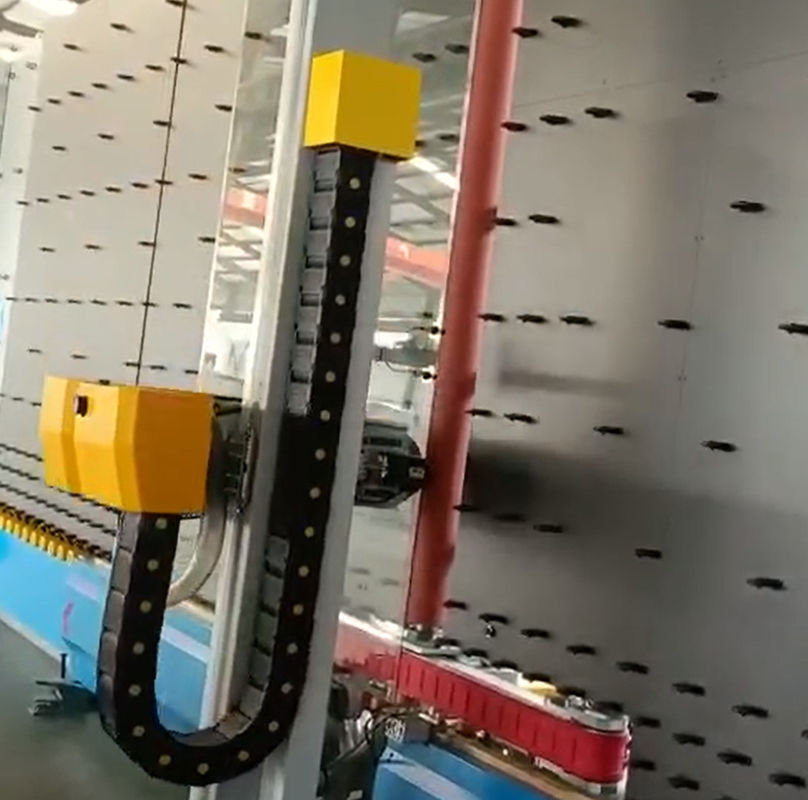

Details of Low-E film removal machine
1.Glass processing machine adopt PLC control system,touch screen interface
2.Low-e Glass deleting machine can Auto measure the size and the thickness
3.Glass Grinding machine can Auto distinguish coating side of low-e glass.
4. Two-way glass access
5.The head can be rotated 360°
6.Safety protection device auto-dedusting function
7.Control system intelligently memorize batch processing function
8.Auto-modified function,The pressure of edge deleting is stable and adjustable
Related products
Vertical Insulating Glass Sealing Robot LJTJ2540
Technical data
Max. glass size | 2500*4000mm (Optional) |
Min. glass size | 300*300mm |
Glass thickness | 12-50mm |
Working speed | 5-40m/min |
Air pressure | ≥0.6MPa |
Squeeze pressure | 32MPa |
Voltage power | 380V 12kw |
Overall dimension | 11000*2000*3500mm |
Main Features:
• Min & Max glass sizes can be optional
• Adopt 8 servo motors
• Adopt Japan servo control system with stable performance
• Automatically measure glass size, glue depth and glue speed with linear adjustment
• Adopt timing belt to keep smooth convey with accurate position
• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
• Single-function parts are equipped with manual functions, easy adjustment
• The glass corners are full without air bubbles, smooth surface, no need to
• Full automatic and high-efficiency machine
• Automatically repair glass corners with beautiful surface
• Smooth convey without scratch and pollution
• Seal stepped glass fully at once (Optional)
• Can seal stepped IG with four sides (Optional)
• Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc (Optional)
• Adopts double pumps device to use two kinds of different sealants, such as silicone, polysulfide and silicone structural sealant (optional)
