Product Details:
|
| Production Name: | Automatic Glass Grinding Machine | Application: | Making Double Glazing |
|---|---|---|---|
| Max.glass Processing Size: | 2500*4500mm | Fuction: | Low-e Glass Edge Deletion |
| Min.glass Processing Size: | 350*500mm | Glass Thickness: | 3-15mm |
| Edge Deleting Width: | 10-150mm | Glass Conveyor Speed:: | 2-29m/min |
| Edge Deleting Speed: | 0-15mm/min | Abrasive Wheel Width: | 10/12/15 |
| Air Pressure: | >0.8MPa | Dimension: | 9700*2500*3400mm |
| High Light: | glass grinding equipment,glass edge polishing machine,15mm Thickness Glass Edge Grinding Machine |
||
Product Introduction of Automatic glass grinding machine

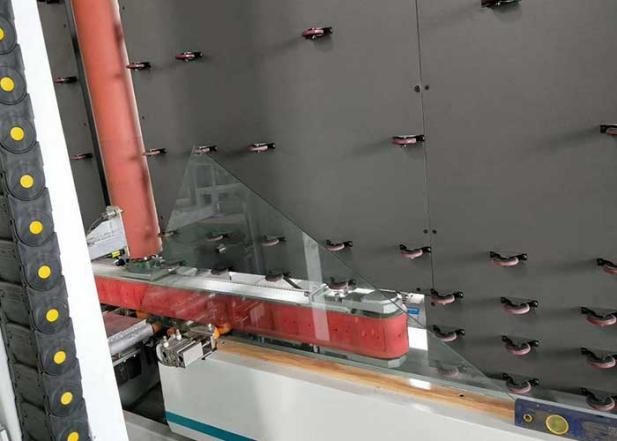

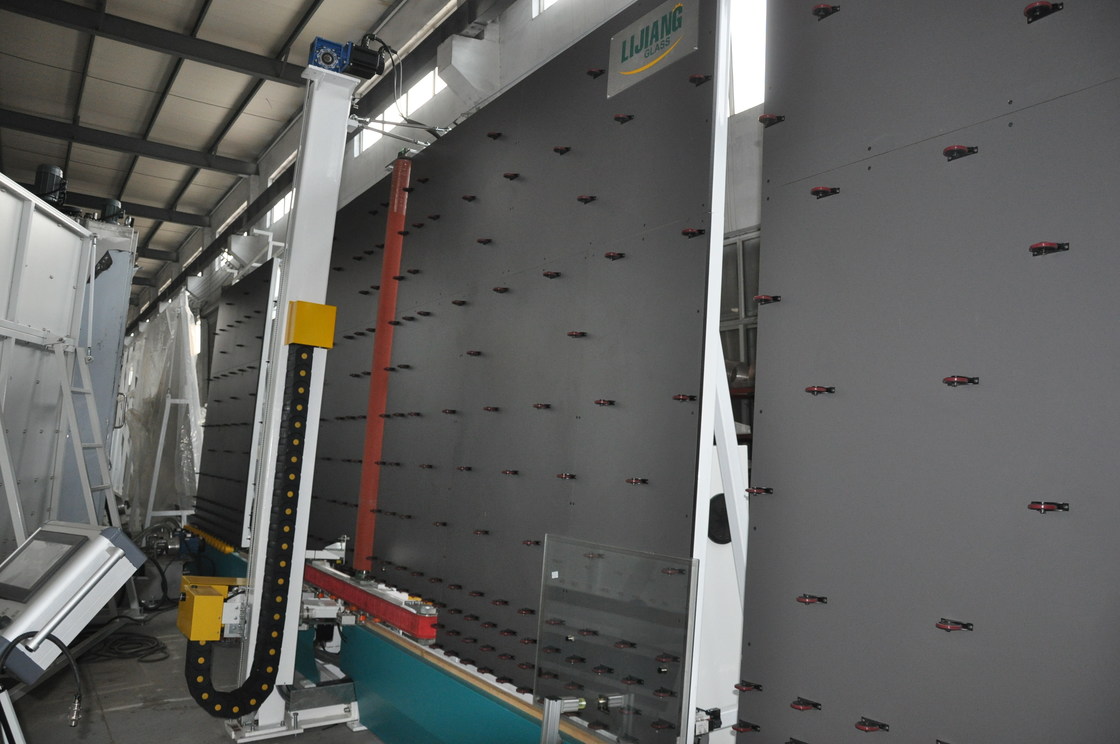

Smart vertical edge deleting machine LJDM2545 is used to delete the edge film of the Low-e glass.
High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation.
Main feature
• Six servos control system
• Automatically measure size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• Two-way glass access
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Intelligent control system, can recognize batch processing
Details of Low-E film deleting machine
1.Glass processing machine adopt PLC control system,touch screen interface
2.Glass Grinding machine can Auto distinguish coating side of low-e glass.
3. Two-way glass access
4.Low-e Glass deleting machine can Auto measure the size and the thickness
6.Safety protection device auto-dedusting function
7.Auto-modified function,The pressure of edge deleting is stable and adjustable
8.Control system intelligently memorize batch processing function
9.The head can be rotated 360°
Technical data of Automatic Glass Edge Deleting Machine
| Max.glass processing size | 2500*4500mm |
| Min.glass processing size | 350*500mm |
| Glass thickness | 3-15mm |
| Edge deleting width | 10-150mm |
| Glass conveyor speed | 2-29m/min |
| Edge deleting speed | 0-15m/min |
| Abrasive wheel width | 10/12/15mm |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 13.35KW |
| Dimension | 9700*2500*3400mm |
Related products
Butyl Extruder Machine LJTB 01
Main feature
• PLC control system, touch screen interface
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
• with preheating function
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
