Product Details:
|
| Name: | Insulating Glass Machine | Function: | IG Glass Production |
|---|---|---|---|
| Type: | Vertical | Model: | LJBZ025 |
| Color: | Customers' Request | Min Glass Size: | 450mm*280mm |
| Max Glass Size: | 2000mm*2500mm | Control System: | SIMENS |
| Brand: | LiJiang | Total Power: | 3P 380V 50HZ |
| High Light: | glass processing machines,double glazing production |
||

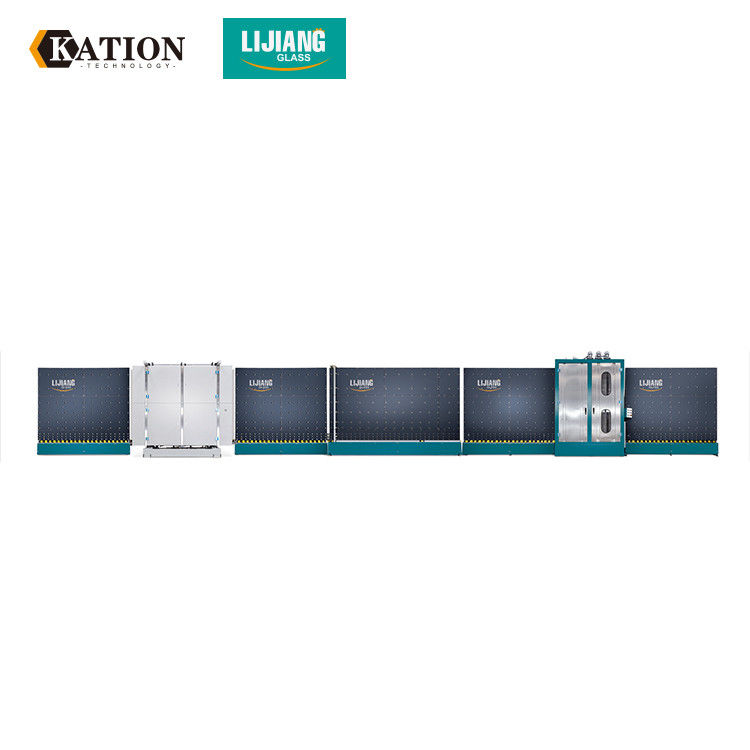

2500mm lijiang auto brand new Insulating Glass Production Line, GLASS LINE ,green 2020new production
Auto running
This machine has two mode:full-automatic and semi-automatic.
Full-automatic:spin “auto/manual” button to “auto”,then press “auto run” button and “Link IG” button. At this time,auto running light and link IG light are on. After that this machine is on full-automatic mode.
Semi-automatic: spin “auto/manual” button to “auto”, then press “auto run” button. At this time,auto running light is on. Press foot switch one time ,the machine gum one piece of glass.
If you want successfully gumming the glasses ,some settings must be correct.
6.13 Auto purge
This machine will auto purging. We can edit it in “editing function” page.
6.14Clean machine
Before cutting off power of the machine ,clean must be done. Press “clean start” button to start clean. Meanwhile observe the sealant purged out. If the sealant become white, the press “clean stop” to stop cleaning. After that the power of the machine can be shut down.
Function and feature
1.The machine is suitable for glass deep processing enterprise ,high automation, Reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ), two kinds of sealants switch fast ,in one-button operation easily (Model II)
5.The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively
7.The smallest insulating glass size can be processed is 300*300mm
8.Equipped anti blocking device in the mixer
9.Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
13.Suitable for triple glazing .
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
