Product Details:
|
Name: | Insulating Glass Machine | Function: | IG Glass Production |
---|---|---|---|
Type: | Vertical | Model: | LJBZ2535 Filling Gas |
Color: | Customers' Request | Min Glass Size: | 450mm*280mm |
Max Glass Size: | 2500mm*3500mm | Control System: | SIMENS |
Brand: | LiJiang | Total Power: | 3P 380V 50HZ |
Highlight: | glass processing machines,double glazing production |
2019 2020new Insulating Glass Production Line,Insulating Glass Production Line.GLASS LINE ,green 2020new production
In this screen, it is mainly used to manually adjust the distance between the front press plate and the transmission beam, and to take out the glass with the manual positive and negative conveyor belt.
1) 06 set the servo servo point-to-point moving distance: after the point-to-point moving distance is input -1000, after clicking the GO button, the conveyor belt will reverse the running distance of 1000mm according to the set fixed point moving speed.
2) press the servo actuating distance: click the GO button after the point-operating distance of 5mm is input, and close the press-plate 5mm before closing at the set speed; If you click the GO button after the input distance of -5mm, open the front press 5mm at the set speed. Remember not to put negative or positive Numbers in reverse, otherwise the front panel open and close the wrong way to break the glass easily.
3) beam extension point movement: after entering a value, the transmission beam will extend the set value forward.
4) beam indentation: after entering a value, the transmission beam will recoil from the set value.
5) actual position of the beam: display the actual position of the beam in real time.
6) 03,04,05 fast slow speed and 07 forward turn buttons are both fast and slow running and forward running of corresponding transmission section in manual mode.
LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits.

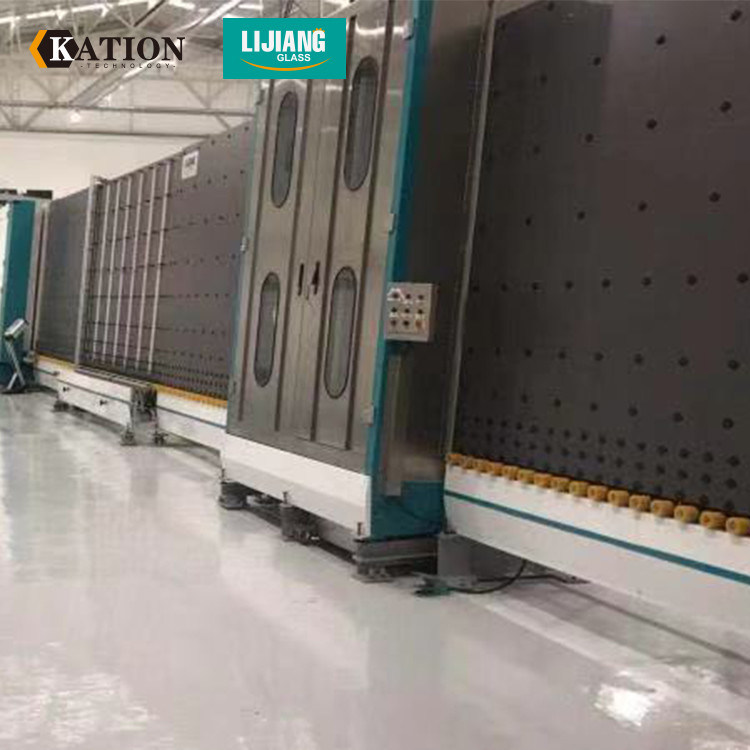

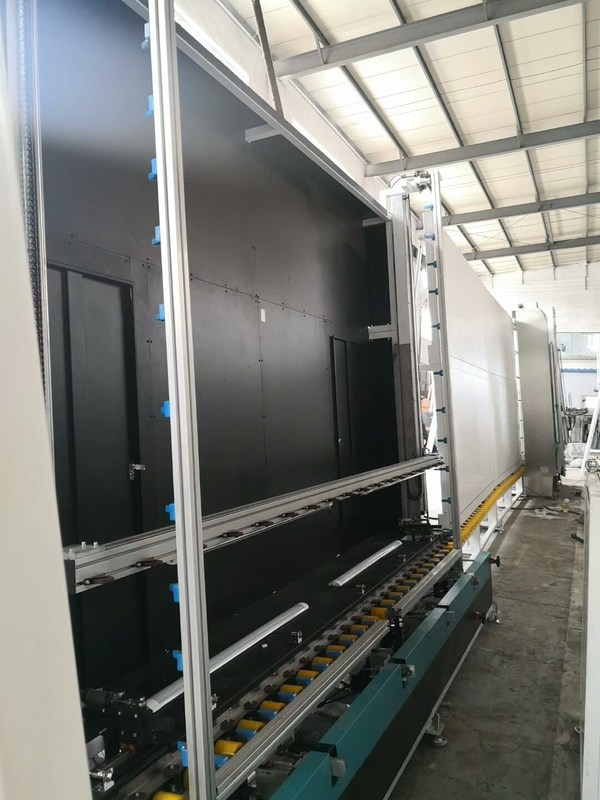

Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
. Position compensation value of front panel display: it is to compensate for the deviation between the opening position of front panel and the actual opening position of front panel.
2. Actual opening position of front plate: it shows the position of front plate in real time.
3. Value of front plate electronic ruler: it is the value of real-time display electronic ruler.
4. The value of the electronic ruler when the front plate is opened for overhaul: the value of the electronic ruler when the front plate is opened for overhaul is set.
5. The value of the electronic ruler when the front plate is zero: the value of the electronic ruler when the front plate is completely closed.
6. Beam display position compensation value: it is to compensate for the deviation between the position of beam and the actual position of beam expansion.
7. Actual position of the beam: it shows the position of the beam in real time.
8. Beam electronic ruler value: it is the value of beam electronic ruler displayed in real time.
9. The value of the electronic ruler when the beam is extended: the value of the electronic ruler when the beam's dc electric push rod is fully extended.
10. The value of the electronic ruler when the beam is zero: the value of the electronic ruler when the beam's dc electric push rod is fully retracted.
NAME | ORIGIN | BRAND |
Transfer motor | Germany | SIEMENS |
Brush motor | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
electric gauge | China | MIRAN |
Photoelectric switch | Korea | AUTONICS |
