Product Details:
|
NAME: | Vertical Automatic Insulating Glass Production Line | Power(W): | 37kw |
---|---|---|---|
Dimension(L*W*H): | 19500*3500*3200mm | Glass Thickness: | 50mm( Can Be Special Design) |
Weight: | 6000kg | ||
Highlight: | glass processing machines,double glazing production |
APPLICATION
As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.

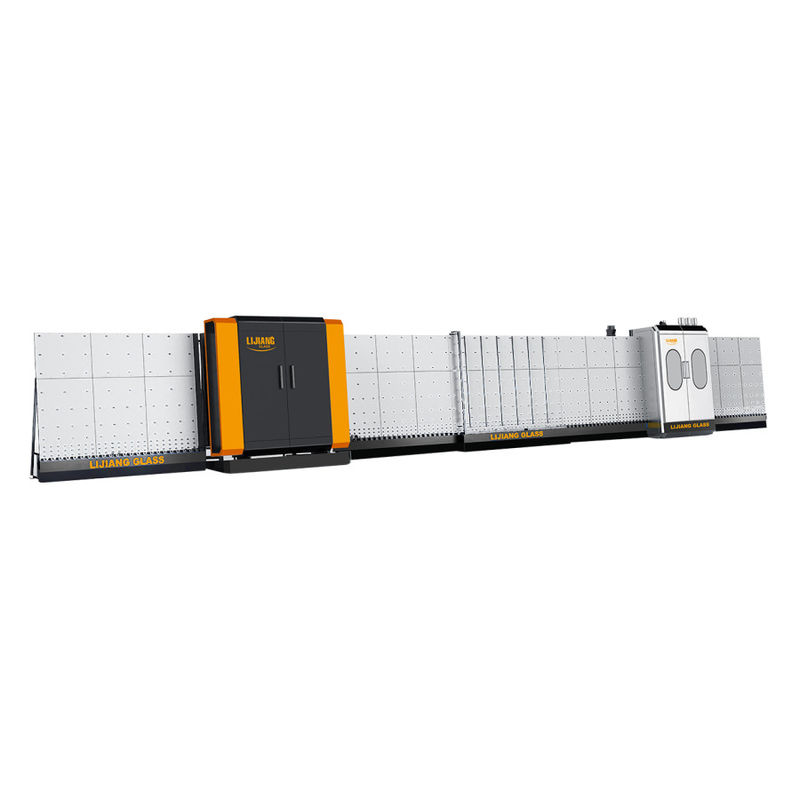

LJBZ2535 Vertical Automatic Insulating glass production line include 7 parts: (standard model :from right to left)
1,Loading section(with low-e checking)

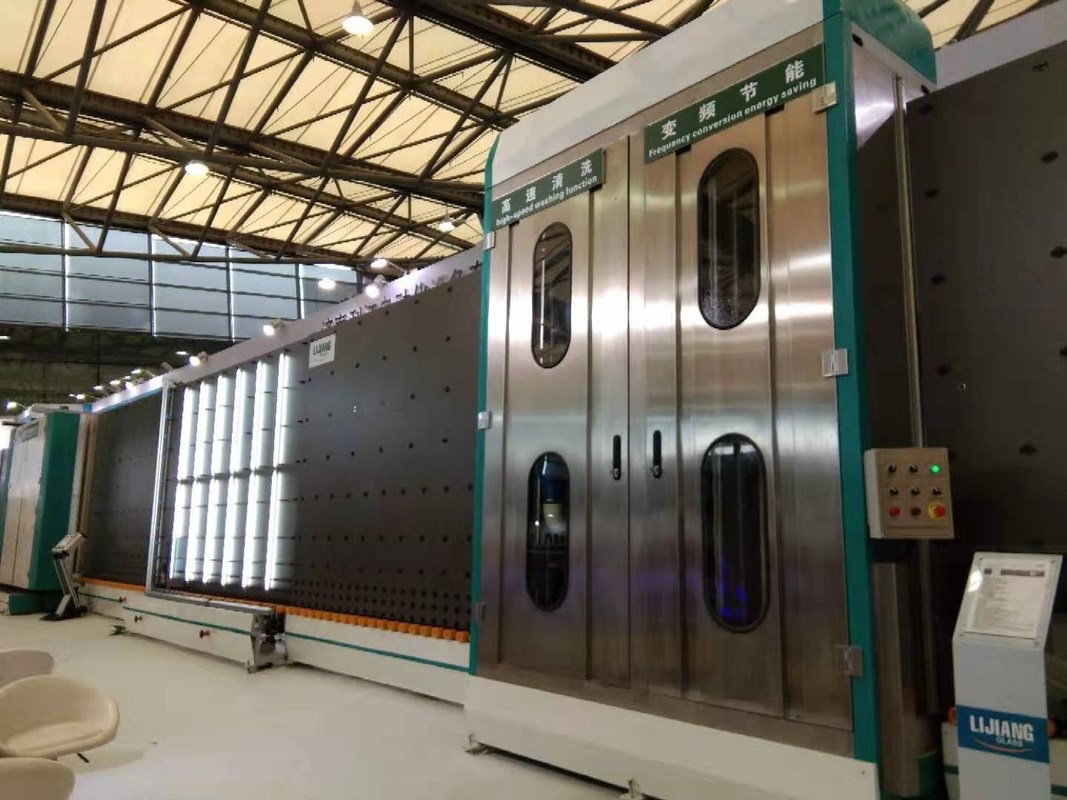

2,washing and drying section(can washing low-e glass)
3,conveyor section
4,checking and assembly section
5, conveyor , measure and sensor section
6,press part with gas filling
7,unloading sectionSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine Advantage:
・ Stable performance
・ Online gas filling (optional)
・ High strength polymer plastic spray back plate, folding structure
・ PLC control system, touch screen interface
・ Coating & LOW-E glass automatic identification
-Can wash glass online & offline
・ Layered cleaning system
・ Automatic temperature control of water tank, water replenishment system
· European silencer system & stainless steel drying system
・ Intelligent batch type energy saving system
・ Digital display and sealant depth adjustment device
Adjustable matrix separation press system
・ Automatic outer rotating glass positioning system
· Aviation plug cable connect way
・ Triple IG, automatic forming IG assembly and positioning system
・ Universal wheel in tilt table has balance weight device
・ Servo control step IG system, module function, overlay function
