Product Details:
|
Name: | Insulating Glass Machine | Function: | IG Glass Production |
---|---|---|---|
Type: | Vertical | Model: | LJBZ2535 |
Color: | Customers' Request | Min Glass Size: | 450mm*280mm |
Control System: | SIMENS | Total Power: | 3P 380V 50HZ |
Highlight: | double glazing production,insulating glass line |
glass processing , Insulating Glas Line,Insulating Glass Production Line.GLASS LINE ,green 2020new production

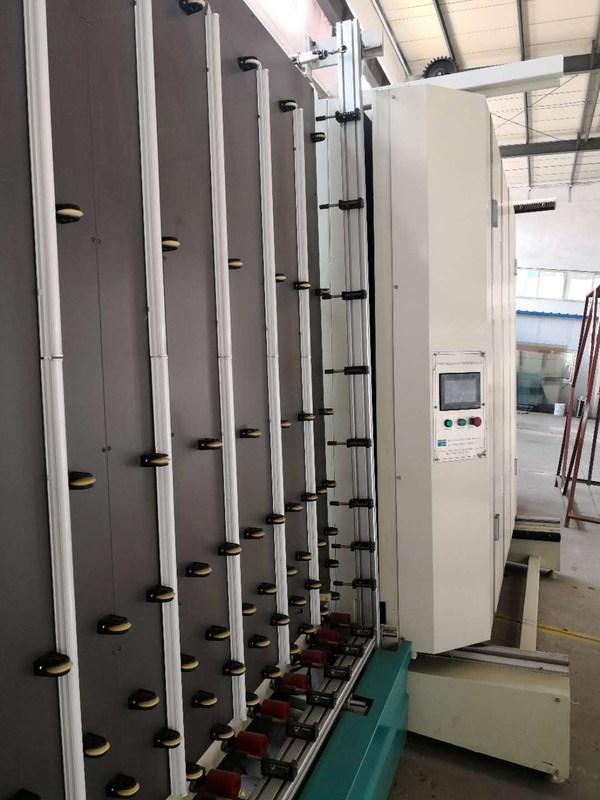

Transfer wheels VS air-floating technology
he front and back transfer wheel are all moved, all actively transferred. It can guarantee the big and thick glass pass through smoothly. The new air – floating technology uses air to support glass and transfer glass. When glass is washed clearly from the washing machine, using air to transport the glass, it won't be contaminated. Ensure that the produced insulating glass is of the highest quality.
LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits.

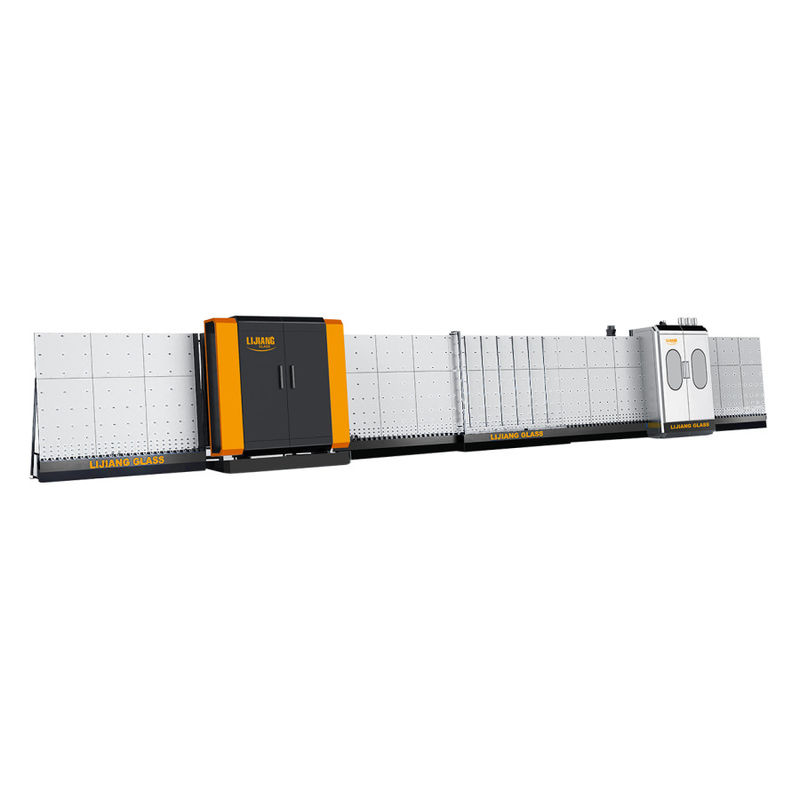

Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
This sensor is installed before washing machine. It can automatically recognize Low-e glass surface fast and precisely, preventing the glass from dropping Low-e surface.As different countries have different water quality, in order to ensure that the glass is washes clearly enough, adopting air heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.The special structure inside the washing machine can automatically recognize glass thickness. Allowing different thicknesses of glass to be transferred quickly, increasing production speed. According to the test, it takes only 22s to produce a 1m*m insulating glass.
NAME | ORIGIN | BRAND |
Transfer motor | Germany | SIEMENS |
Brush motor | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
electric gauge | China | MIRAN |
Photoelectric switch | Korea | AUTONICS |
