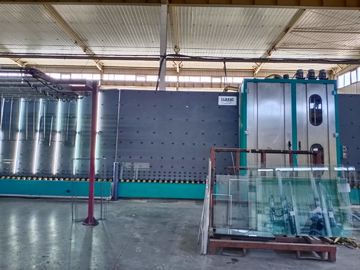

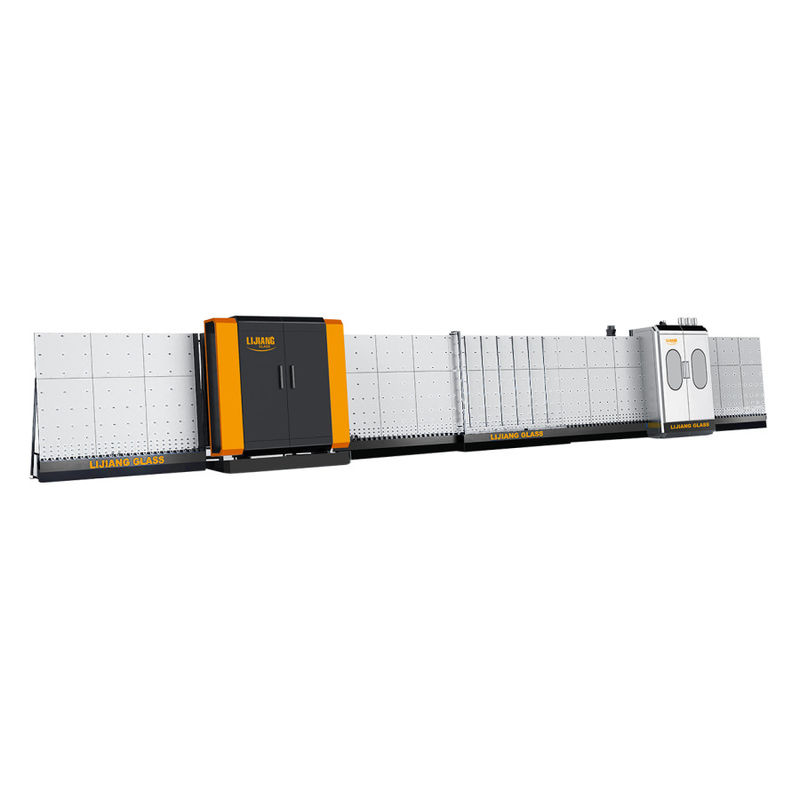

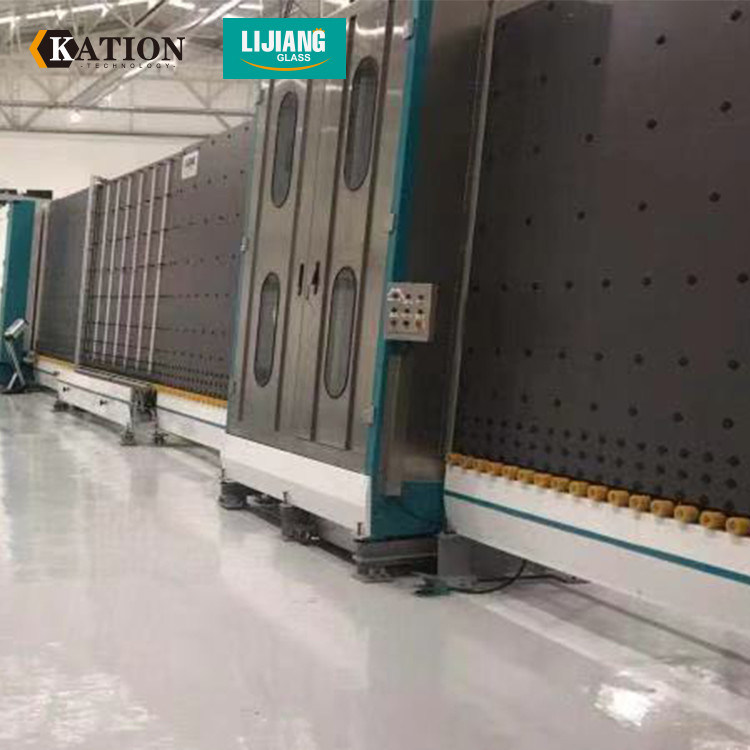

Automatic Insulating Glass Production Line LJBZ2535

Technical data

Electrical parameters

APPLICATION

Lijiang IG production line uses the latest technology. Its main purpose is to create high-end quality and provide a large number of useful functions, improve production efficiency, save production costs and maximize profits.

Now Lijiang has mainly two different digging lines. One uses a transfer wheel to transport glass, and the other is a new technology that uses air flotation technology to transport glass. This new technology is to protect the glass from contamination and leave traces, so the new technology is adopted to improve the high quality of IG products.

• Adopt SI SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Digital automatically adjusts the depth of glue with digital display
• Using servo to control system, modular function, superposition function
• Ste applied to produce phased IG, triple IG and size IG
• I Two pieces of IGU can be made and filled with argon gas at once (optional)
• Minimum and maximum glass sizes can be optional
• Using pieces of soft brushes
• Wash online and offline low-e glass, automatically recognizing low-e movie
• Part washing part adopts upper and lower layered structure design
• Adopt variable frequency fan, energy efficient, good cleaning effect
• The air knife can automatically adjust the width of the air knife according to the thickness
• Inter using intelligent interruption energy saving working methods
• Ie category type washing system
• Automatic temperature control of water tank, water replenishment system
• European silencer system
• 304 stainless steel material

Detailed description

1.The special structure inside the washing machine can automatically detect the thickness of the glass. Different thicknesses of glass allow for faster transfer, increasing production speed. According to tests, it only takes 22s to produce 1m * insulating glass.

1) There is a universal joint device, when the thickness of the glass was changed, the air knife moves forward and backward to determine the distance that the relative distance between the air knife and the glass is constant, so as to avoid damage to the glass. To change the thickness of the glass.

2). There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.

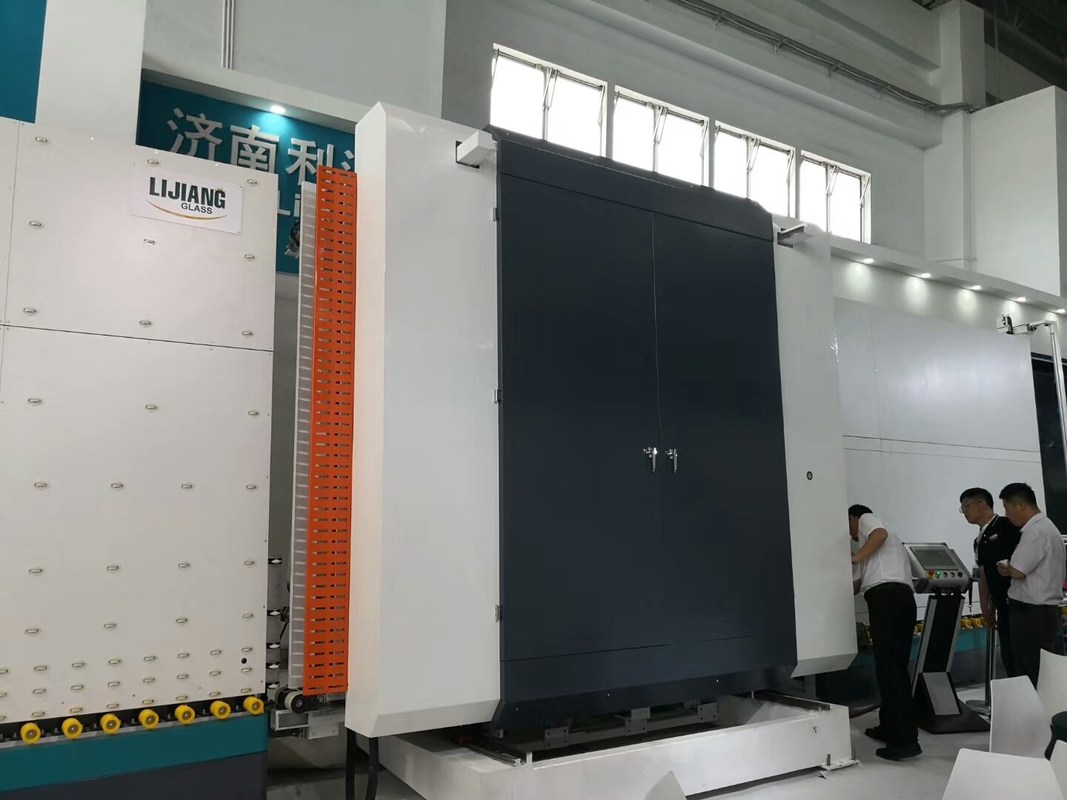

2.Energy saving of pressing box
The pressing box adopts micro-micro switches, which divide the pressing part into regions.

When each micro switch receives the signal, it adds a portion of the working area. When the compatible micro switch is not touched, the field does not work.

1. When glass L ≤ 1.5m, area 1 works.
2. When glass L = 1.5m-2.3m, area 1 and area 2 work.
3. When the glass works 2.3 m <L <2.2 m, area 1, area 2 and area work.
4. When glass 2.2 m = L ≤ m m, all areas work together.

What's more, both sides and the bottom of the pressing box will be sealed to ensure the inflating effect. It can save a lot of argon gas and electricity.

3.Automatic high-speed filling argon gas
IG Line 22S fills 1m * 1m double glazed glass for just one piece. Can set and display argon gas values ​​directly on the screen. From the screen, we can easily observe the argon gas content and filling speed.

When the two pieces of glass are closing, it begins to fill with argon gas from under the glasses. When the previous set value is reached, inflation will stop automatically.
