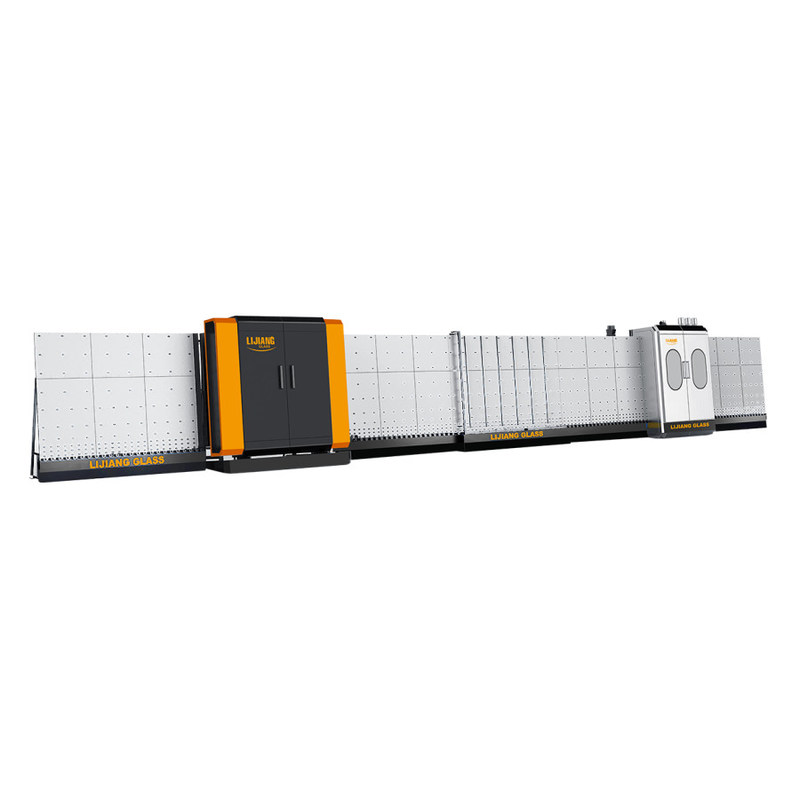

Automatic Insulating Glass Production Line LJBZ2535

APPLICATION

Lijiang IG production line uses the latest technology. Its main purpose is to create high-end quality and provide a large number of useful functions, improve production efficiency, save production costs and maximize profits.

Now Lijiang has mainly two different digging lines. One uses a transfer wheel to transport glass, and the other is a new technology that uses air flotation technology to transport glass. This new technology is to protect the glass from contamination and leave traces, so the new technology is adopted to improve the high quality of IG products.

Main Features

• Adopts SIEMENS control system to maintain stable performance
• PLC control system, touch screen interface
• Digital display automatically adjusts adhesive depth
• Use servos to control system, modular and overlay functions
• Applicable for manufacturing step IG, triple IG, and molded IG
• Two IGUs can be created at once and filled with argon gas (optional).
• Minimum and maximum glass sizes are optional.

Technical data

Electrical parameters

Detailed description

1.The special structure inside the washing machine can automatically detect the thickness of the glass. Different thicknesses of glass allow for faster transfer, increasing production speed. According to tests, it only takes 22s to produce 1m * insulating glass.

1) There is a universal joint device, when the thickness of the glass was changed, the air knife moves forward and backward to determine the distance that the relative distance between the air knife and the glass is constant, so as to avoid damage to the glass. To change the thickness of the glass.

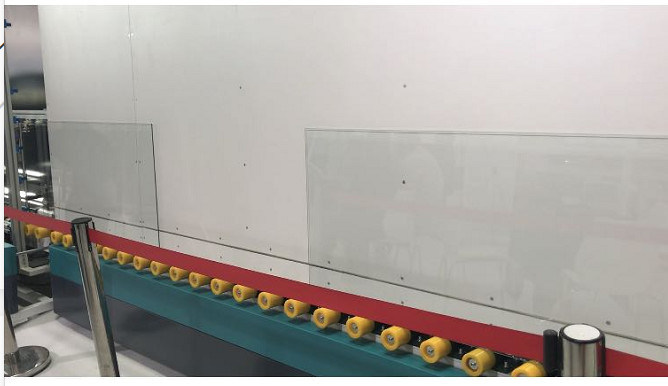

2). There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.

2. It is the first one in China to use adjustable points to ensure that the platen will never deform.

We adopt CNC technology into the pressing board. We designed the adjustable points inside the pressing board to keep the back plate straight all the time. In China, except LIJIANG, no one can guarantee that the pressing board will remain vertical and straight all the time after used 10 or 20 years. However, we solve this problem already.

​
