Product Details:
|
| Name: | Automatic Insulating Glass Production Line | Max. Glass Size: | 2500mm*3500mm |
|---|---|---|---|
| Min. Glass Size: | 280mm*400mm | Glass Thickness: | 3-15mm |
| Insulating Glass Thickness: | 50mm / 60mm | Glass Washing Speed: | 2-10m/min |
| High Light: | double glazing production,insulating glass line |
||
The Lijiang IG production line uses the latest technology. Its main purpose is to create high-end quality and provide a large number of useful functions, improve production efficiency, save production costs and generate maximum benefits.

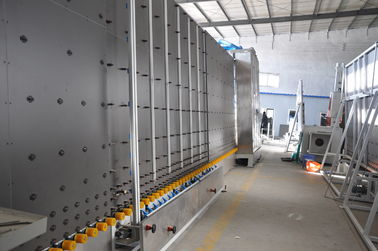

Now Lijiang mainly has two hollow lines with different technologies. One (Figure 1) uses a transfer wheel to transport glass, and the other (Figure 2) is a new technology that uses air floatation technology to transport glass. This new technology is to prevent the glass from being contaminated by the wheels and leaving traces, so new technology is adopted to improve the high quality of IG production.
• Adopts SIEMENS control system to maintain stable performance
• PLC control system, touch screen interface
• Digital display automatically adjusts adhesive depth
• Use servos to control system, modular and overlay functions
• Applicable for manufacturing step IG, triple IG, and molded IG
• Two IGUs can be created at once and filled with argon gas (optional).
• Minimum and maximum glass sizes are optional.
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
Detailed description
All front and rear transfer wheels move and all move actively. You can guarantee that the large and thick glass passes smoothly.
New Air-Floating technology uses air to support and transport glass. If you wash the glass clean from the washing machine and use air to transport the glass, the glass will not be contaminated. Please make sure the manufactured insulated glass is of the highest quality.
This sensor is installed in front of the washing machine. It automatically and quickly recognizes the surface of Low-e glass and prevents the glass from falling onto the Low-e surface.
The whole washing and drying section adopt 304 stainless steel materials, including the plate and interior spare parts.
