Product Details:
|
| Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
| Speed: | 0-47m/min | ||
| High Light: | double glazing production,insulating glass line |
||

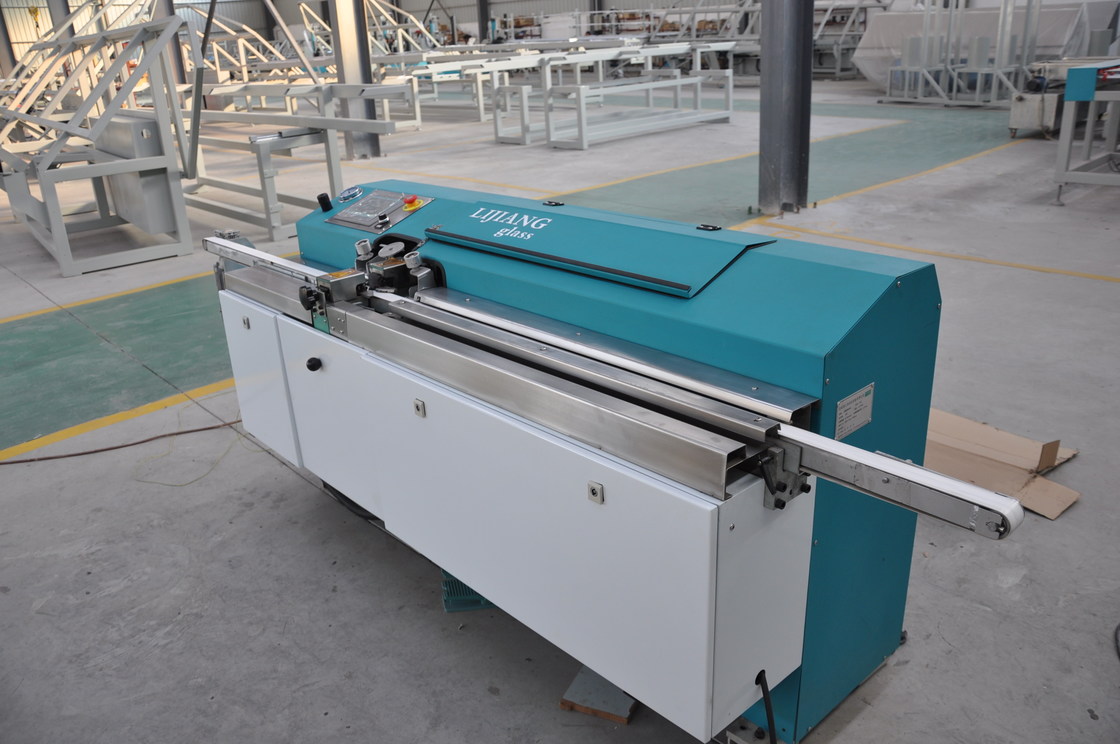

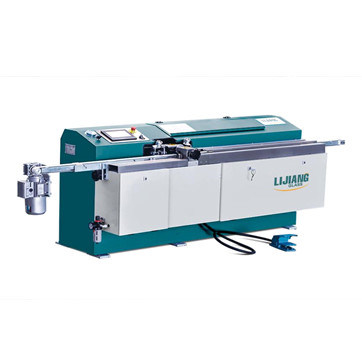

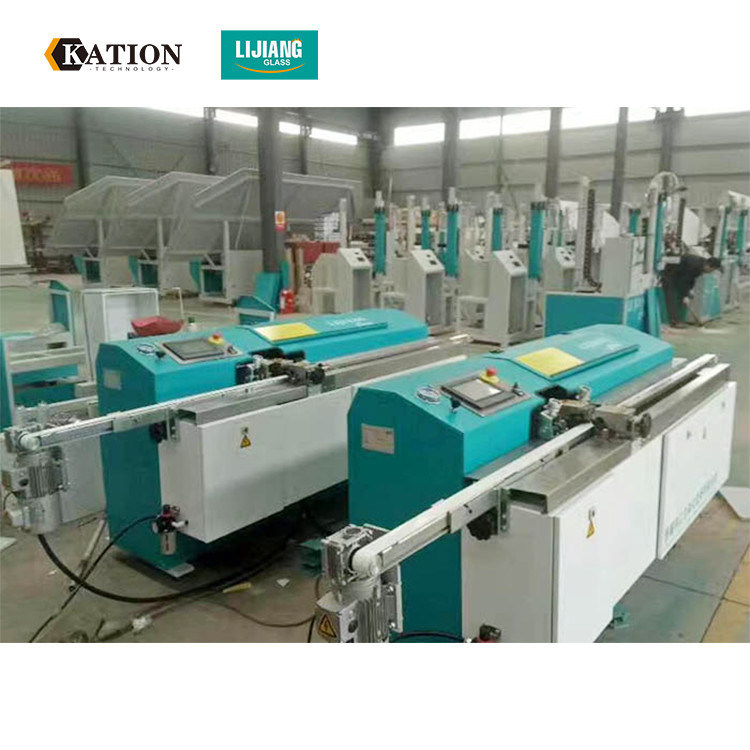

LJTB01 Butyl Extruder Machine
² Application
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames
evenly with hot melt butyl. LJTB01 butyl extruder machine use large electrical control panel
which makes the operation more easier. The conveyor of aluminum is controlled by frequency
converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed
in China. LJTB01 butyl extruder machine is very popular with energy-saving. Its squeezing system
adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more
stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl
easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity
and air pressure. The distance of squeezing head can be adjusted automatically according to different
aluminum spacer. The LJTB01 butyl extruder machine has reached the worldwide technology with the
characteristic of complete function and stable working mode.
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |

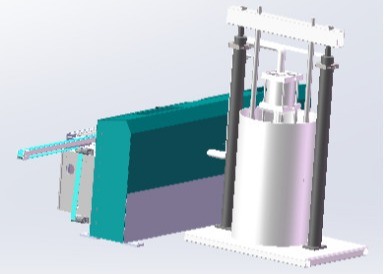

Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder,
control the pressure of outlet oil strongly.
Germany Siemens spares
Adopt Siemens brand, extending working life, stable performance.
JINAN KATION TRADING CO.,LTD.
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating
glass machinery and related auxiliary equipment for the glass deep processing industry
and the door and window construction industry. Has the professional processing basis
of insulating glass machinery, aluminum-plastic windows & doors machinery and the related
auxiliary materials, etc. In this way, we provide the most comprehensive glass processing
solution and windows & doors solution for domestic and foreign customers well
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding
customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support,
Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
