Product Details:
|
| NAME: | Automatic Sealing Robot | MAX GLASS SIZE: | 2500*4000MM |
|---|---|---|---|
| MIN GLASS SIZE: | 350*400MM | Electricity Brand: | Germany Simens |
| Glass Thickness: | 12-50mm | Working Speed: | 5-40m/min |
| Sealant: | Silicon | User: | Toughened Glass Manufacturer |
| User Field: | Glass Deep Processing | Voltage: | 12kw |
| Size: | 8700*2000*3500mm | ||
| Highlight: | insulating glass line,glass processing machines |
||
Double glass machine Sealing robot Details

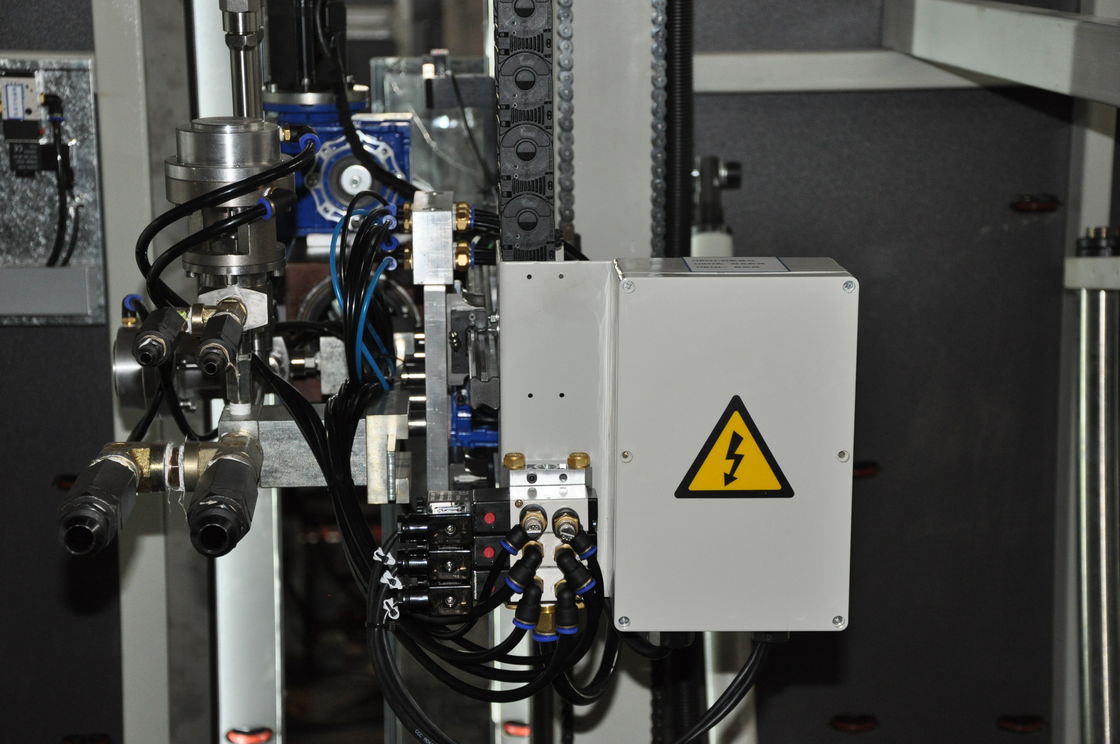

1, Double glass machine Sealing robot Mechanical head is placed in front
Achieve the real connection with IG line when doing stepped glass.

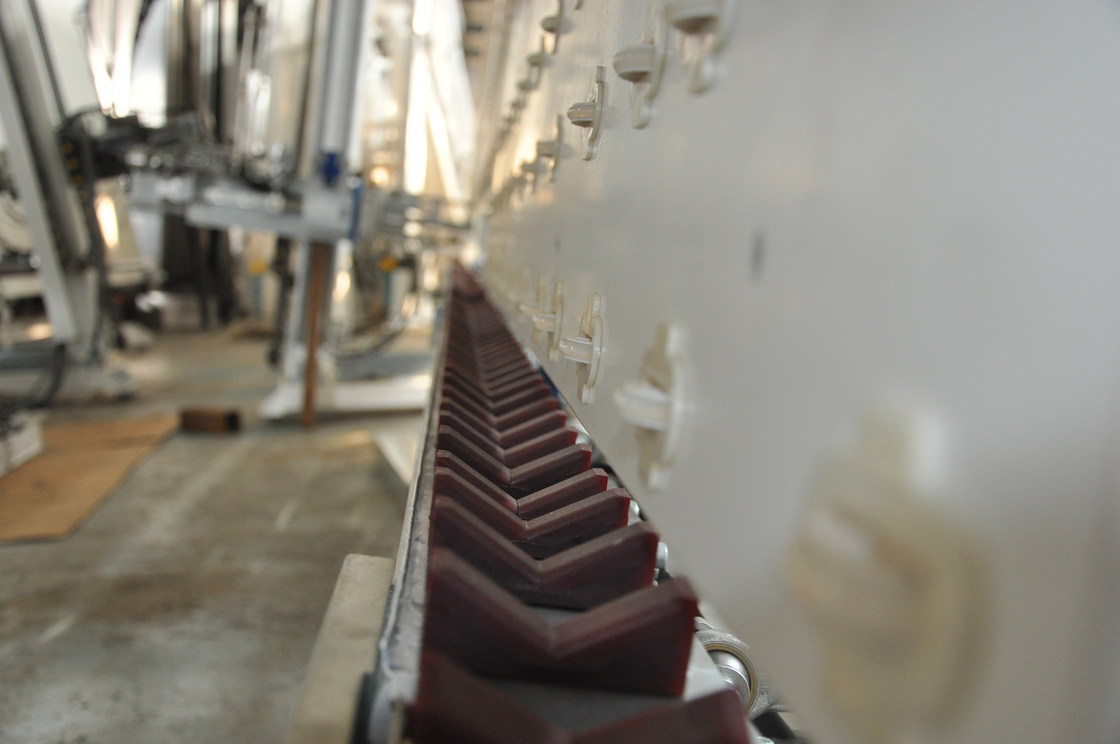

2, Storage Function
It can store three pieces of insulating glasses on the three belts ( less than 1.8m.)
3, Famous National Brand
The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and Forward & backward movement and rotating.
Equipped with single A component and single B component.

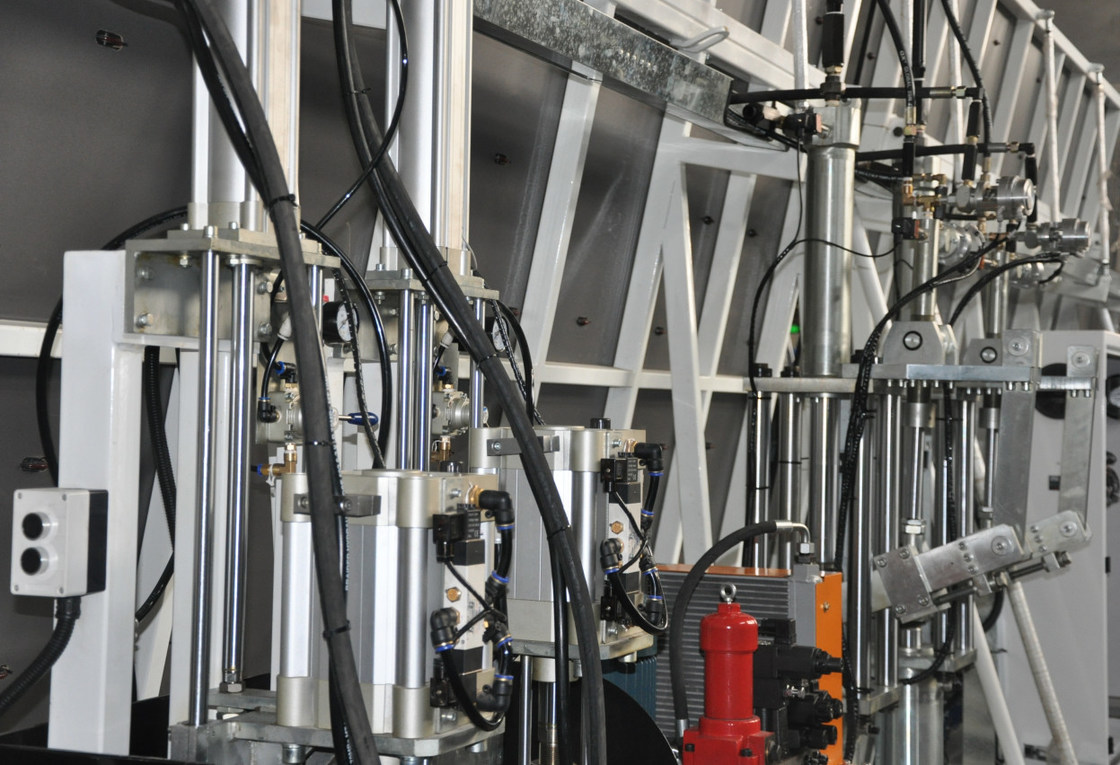

4, Double Glue Systems(option )
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of sealants, such as silicone rubber, polysulfide rubber and silicone structural adhesive.
5, Technical data
| Max.glass size | 2000*2500mm | 2000*2500mm |
| 2500*3500mm | 2500*4500mm | |
| Min.glass size | 2000*2500mm | 170*400mm |
| 2500*3500mm | 300*400mm | |
| Glass thickness | 12-56mm | |
| Working speed | 5-40m/min | |
| Air pressure | 0.6-0.8MPa | |
| Squeeze pressure | <350kg/m³ | |
| Plane angle | 6°- 9° | |
| Max glass weight | 400kg | |
| Voltage power | 380V 12kw | |
| Overall dimension | 8700mm*2000mm*3500mm | |
| Name | Brand |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Germany Siemens |
| CPU | Japan YASKAWA |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| Electrical proportional valve | Japan SMC |
| Precision pressure regulating valve | Japan SMC |
| Touch screen | Taiwan WENVIEW |
| Guideway | Taiwan HIWIN |

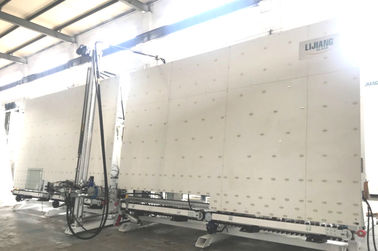

Vertical Insulated Glass Produce Line for double glass production line
Auto Sealing Robot for double glass production line
Sealant Spreading Machine for double glass production line
Low-E Glass Washing &Drying Machine for double glass production line
Smart Edge Deleting Machine for double glass production line
Automatic Spacer Bending Machine for double glass production line
Automatic Desiccant Filling Machine for double glass production line
Butyl Extruder Machine for double glass production line
Glass Edge grinding Machine for double glass production line
Spacer Cutting Machine for double glass production line
Sealing gun Freezer for double glass production
Rotated Sealant Spreading Table double glass sealing
Argon Gas Filling Machine double glass
Semi-auto Aluminum Frame Transfer Machine for double glass production line
Molecular Sieve Filling Machine double glass production line
Glass Lifting Table double glass production line
Glass Loading /unloading Device for double glass production line
Water Treatment System for double glass production line (Economy)
Water Treatment System double glass production line (Advanced)
Auto Seaming Machine
Technician Team:
We have our own technician team ,IG line and automatic sealing robot technician team have 6 experts which all have more than 15 glass machine working experience. Aluminum spacer bending and desiccant filling machine team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years,

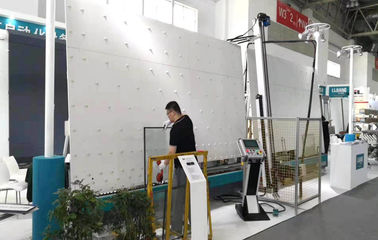

Glass Expo
