Product Details:
|
| Machine Name: | Butyl Extruder Machine | Color: | Blue Color |
|---|---|---|---|
| Application: | Making For Insulating Glass | Glue: | Butyl Glue |
| Spacer Width: | 6mm - 27mm | Glue Nozzles: | Adjustable |
| Glue Belt: | Non Stick Belt | Glue Barrel: | 7kg |
| Optional Function: | 200L | ||
| High Light: | silicone extruder machine,double glazing equipment |
||

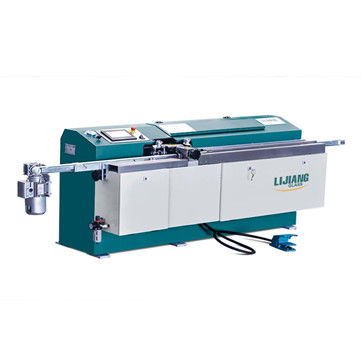

Butyl Glue Extruder Machine For Coating Rigid Spacer
The main features of the butyl extruder machine :
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q:Is LIJIANG GLASS a factory or a trading company?
A: A factory in Jinan city.
Q: What is the system of LIJIANG’s after sale service?
A: LIJIANG has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
