Product Details:
|
Name: | Vertical Insulating Glass Production Line | Type: | LJBZ2535 |
---|---|---|---|
Max. Glass Size: | 2500mm*3500mm | Min. Glass Size: | 280mm*450mm |
Glass Thickness: | 3-15mm | Insulating Glass Thickness: | 60mm |
Highlight: | glass processing machines,double glazing production |
Vertical Insulating Glass Production Line LJBZ2535
LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality,
to provide customers with the latest production technology, improve production efficiency, save
production costs and produce maximum benefits.

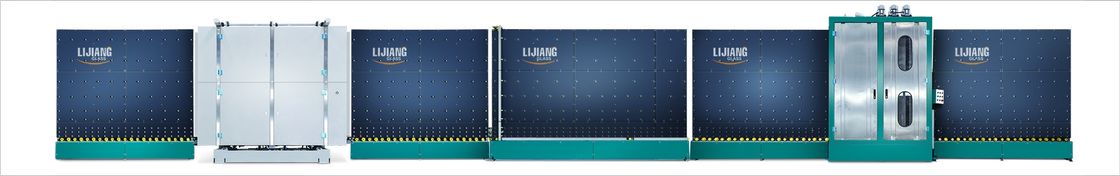

Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1)

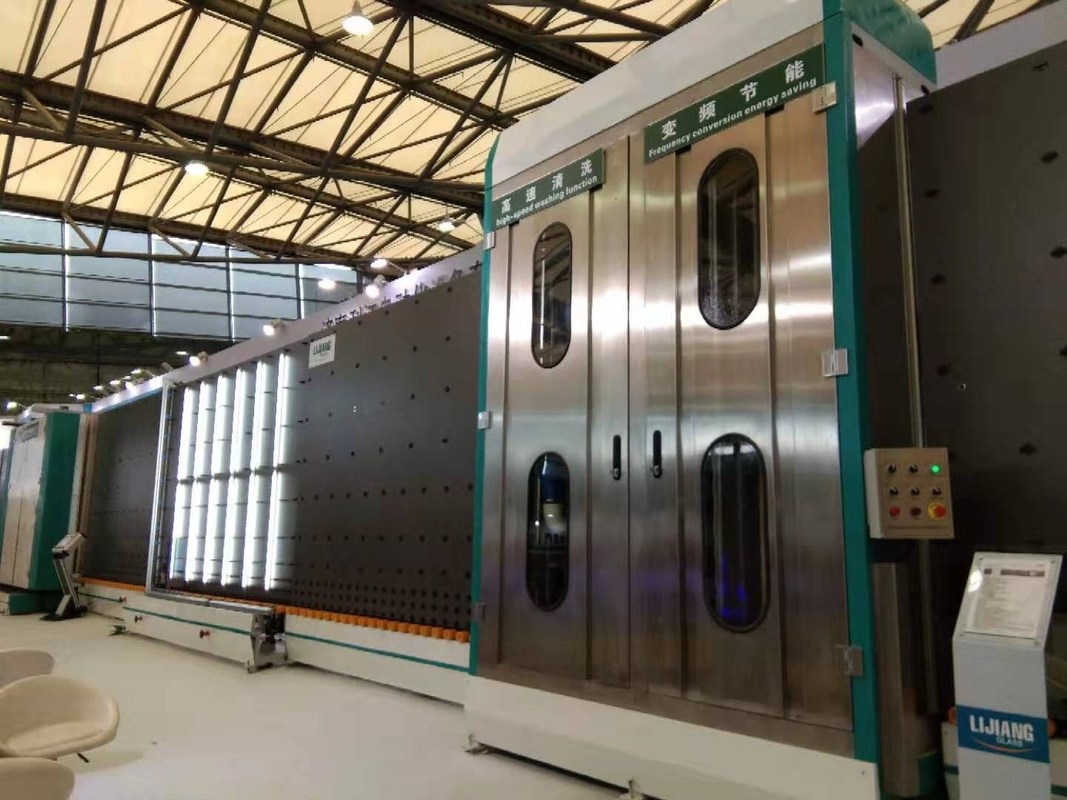

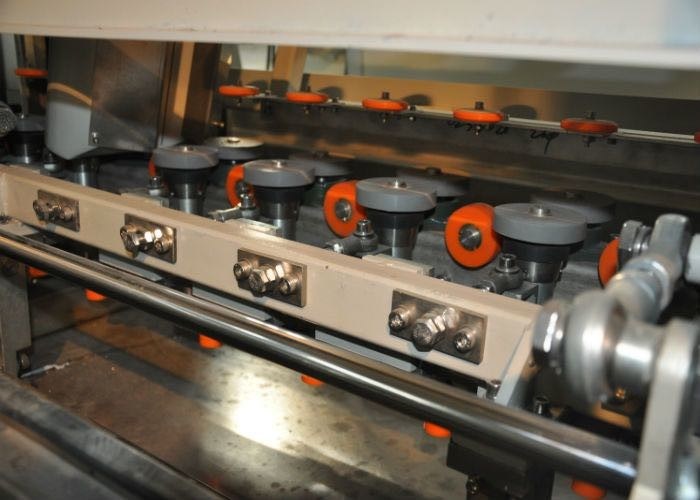

uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating
technology to transport glass. This new technology is to prevent the glass from being contaminated by
wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
Max. glass size | 2500mm*3500mm |
Max glass size for filling gas | 2500mm*3200mm |
Min. glass size | 280mm*450mm |
Glass thickness | 3-15mm |
Insulating glass thickness | 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
Electrical parameters
NAME | ORIGIN | BRAND |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |

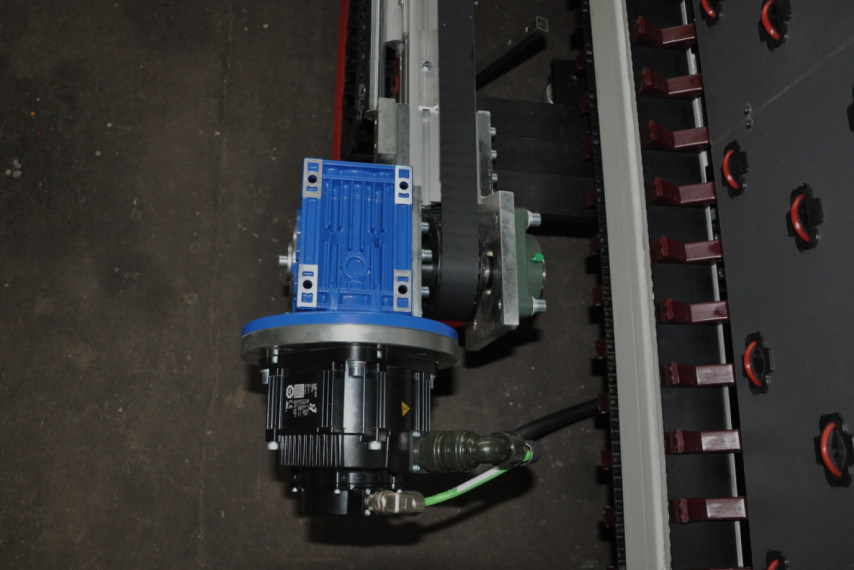

Servo motor for step glass | Japan | FUJI |
Photoelectric switch | Germany | SICK |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
Touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Brush motor | China | QINGHUA |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
IG line without filling gas online |
