Product Details:
|
| Name: | IGU DGU Online Gas Filling Insulating Glass Machine Production Line | Power Supply: | 380V,50HZ Or Customized |
|---|---|---|---|
| Total Power: | 40 KW | Washing Speed: | 2-10m/min |
| Max. Working Speed: | 45m/min | Washing Glass Thickness: | 3-15mm |
| High Light: | IGU Insulating Glass Machine,DGU Insulating Glass Machine,IGU Insulating Glass Production Line |
||

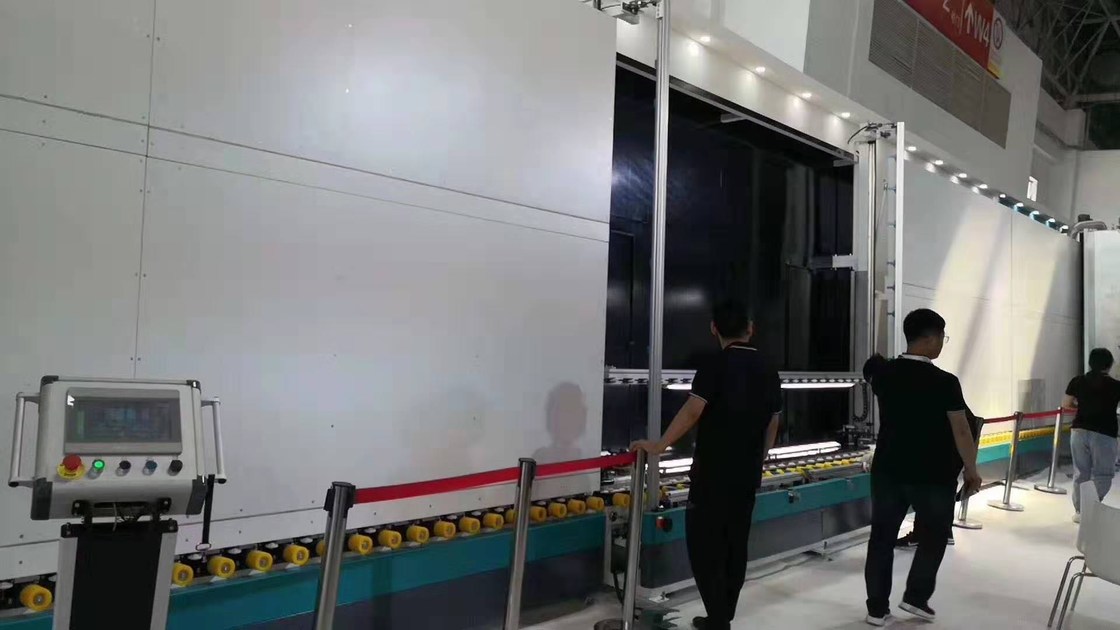

IGU DGU Online gas filling Insulating glass machine production line
Insulatiing glass machine can complete the following functions : Glass cleaning, Aluminum frame placement ,normal double glass, ordinary three glass, shaped glass and double glass second pressing.
Insulatiing glass machine is a special equipment in the production of aluminum strip insulating glass , which has the advantage of small footprint , high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
-PLC control, touch screen human-machine interface.
-Automatic identification of coated glass and LOW-E glass film layer.
-The application of imported vacuum generator and suction cup make better glass catching effect.
-Three pairs of glass cleaning hairbrushes rotation speed can be driven by frequency conversion.
-Big-small sized and three layer hallow glass can be produced according to customer requirements.
-Digital controlled assembling line to save production time and improve efficiency.
-The protection panel has been processed with plastic spraying to achieve beautiful appearance and durable service life.
-Cleaning machine is made with stainless steel and resistance material.
-All electric appliances are selected from famous international brand.
-The press section can be pushed to 450mm with big stroke to make it convenience for maintenance.
-When for exterior conjunction the plate press adopts central location way.
-Free alternative between interior and exterior conjunction.
-The press section adopts opening-door style to convenient overhaul and maintenamce.
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
