Product Details:
|
Name: | Automatic Insulating Glass Silicone Extruder | Usage: | Silicone Extruder |
---|---|---|---|
Applicantion: | Insulating Glass Processing | Max Glass Size: | 2500*4000mm |
Min Glass Size: | 300*300mm | Working Speed: | 5-40m/min |
Glass Thickness: | 12-50mm | Air Pressure: | >0.6MPa |
Dimension: | 8700*2000*3500mm | Power: | 380V 12kw |
Highlight: | silicone extruder machine,double glazing equipment |
Product overview of sealing robot
Automatic Insulating Glass Silicone Extruder can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass.
Main feature
1.Adopt 8 set Japan ANCHUAN servo motors
2. Back Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.
3.Timing belt
The time belt device ensure that glass can be smooth transmission and positioned accurately.
4.Glue system can be selected
One Set of Glue System Equipped with single A component and single B component.
Two Sets of Glue Systems Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.

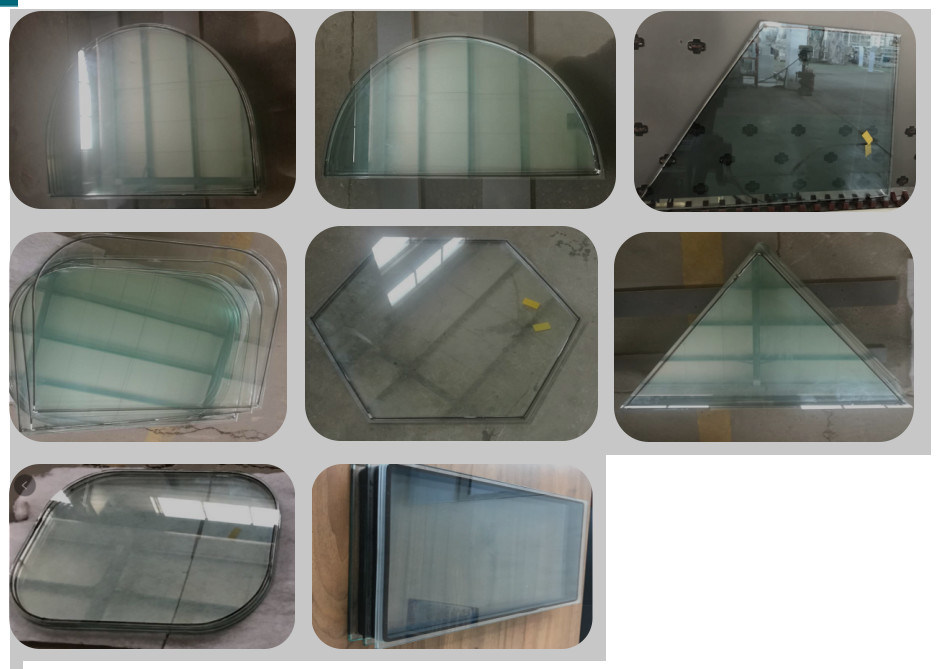

5.The glass corners are full without air bubbles, smooth surface, no corner trimming required
6. Automatically measure glass size, glue depth and glue speed with linear adjustment
7. Two Suckers Device
Adopting two suckers for preventing to move glass during sealing.
Tech Parameters
Max.glass size | 2500*4000mm |
Min.glass size | 300*300mm |
Glass thickness | 12-50mm |
Working speed | 5-40m/min |
Air pressure | 0.6-0.8MPa |
Squeeze pressure | <350kg/m³ |
Plane angle | 6°- 9° |
Max glass weight | 400kg |
Voltage power | 380V 12kw |
Overall dimension | 8700mm*2000mm*3500mm |
Related products
Smart Vertical Edge Deleting Machine LJDM2545
LJDM2545 smart vertical edge deleting machine is used to delete the edge film of the Low-e glass. The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation. High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
