|Name:||Horizontal Glass Washing And Drying Machine||Glass:||Float Glass Low-e Glass Ordinary Coated Glass Sunshine Coated Glass|
glass processing machines,
double glazing production
Horizontal Washing And Drying Machine Easy Opration Glass Cleaning Use
LIJIANG GLASS --SERVICE FOR WORLD GLASS MANUFACTURES

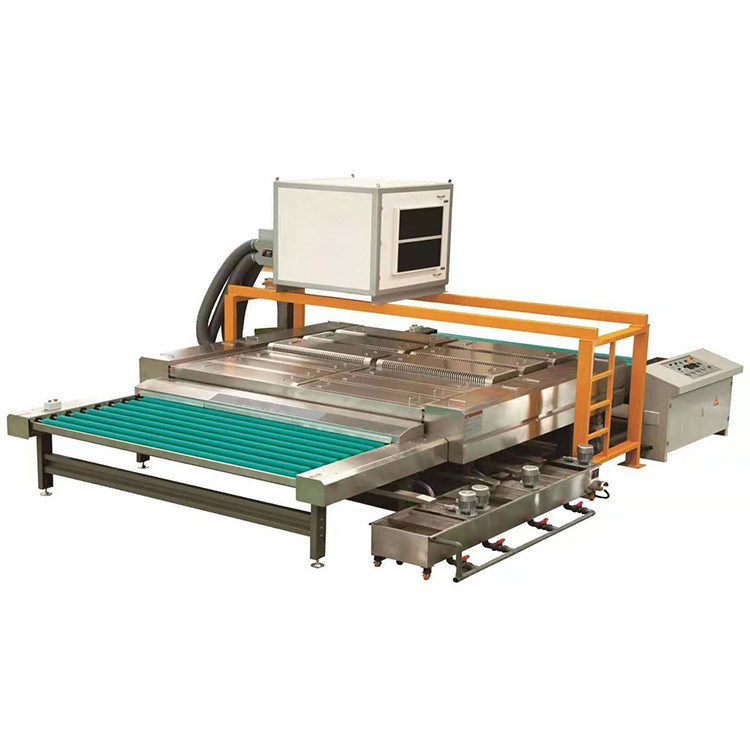

Horizontal Glass Washing And Drying Machine LJWBQJ2500
Glass Washing Machine LJWBQJ2500
LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.
1.Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder；
3. The shaft of rubber roller is made of stainless steel ；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；
6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；
8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of glass washing machine, with the air filter screen on the side for easy inspection and cleaning；
9. Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable, the service life is long, realizes the cleaning high request special glass；
10. Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain；
11. Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.
12. Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)
►►►►►Stainless steel warter tank
►►►►►Adopt Profile design
►►►►►Fan Blower with low noise
|Maximum glass width||2500mm (effective maximum: 2650mm)|
|Minimum glass specification||400mm×400mm (limited to single row on left and right sides)|
|Glass thickness||3mm-25mm (digital display)|
|Speed range||glass thickness within 3-25mm Vmax=1-12m/min|
|Main drive, brush speed regulation method||frequency control|
|Total power||42KW(water-bearing wind heating: 15KW)|
|Water source||self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)|
|Power source||380V 50Hz|
LJWT02 Water treatment system
1. The quartz sand filter
Accumulative work is up to 8 ~ 20 hours, back flush for 20 minutes.
Accumulative work is up to 1.5 -2 hours, replace the quartz sand filter material.
2. The activated carbon adsorption filter:
When exports residual chlorine content > 0.1 mg/L, should replace the activated carbon filter material, normally when the cumulative work is up to 1 year, replace the activated carbon filter material.
3. The water softener:
Replace the softening resin for 1 year work
4. The security filter
Generally, cumulative work for three months ,a fine filter should be replaced. When the fine filter pressure is less than 0.04 Mpa and water shortage indicator light is on,a fine filter should be replaced,too.
5. Inverse osmosis filter
After 6 months of work, application drug RO membrane should be clean.
After 1-1.5 years accumulated work,we should replace the RO membrane.
