Product Details:
|
| Name: | Butyl Rubber Spacer Of Insulating Glass | Advantage: | Warm Adge |
|---|---|---|---|
| Size: | Can Be Request | ||
| High Light: | glass processing machines,double glazing production |
||
Warm Adge Technolgy Butyl Aluminum Sapcer and Cold Adge Alumunim Spacer For Double Glass

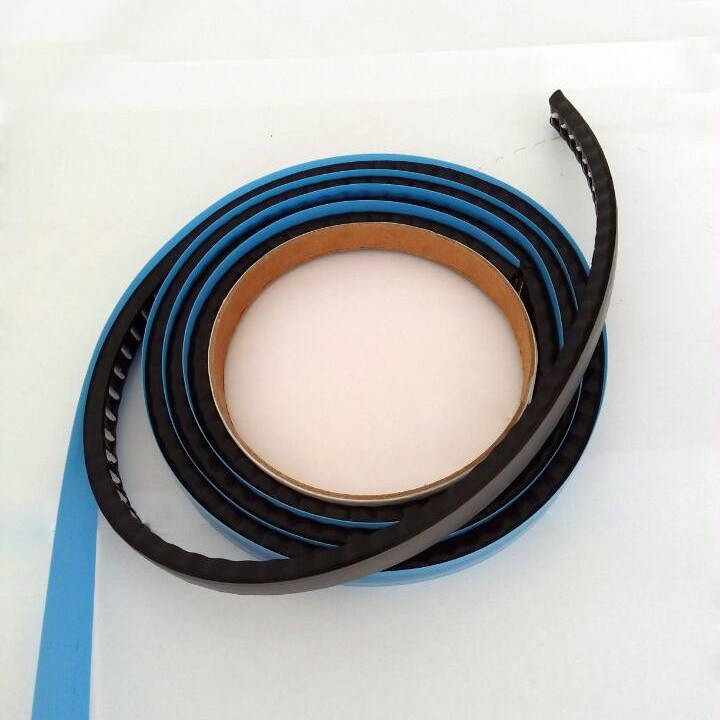

Warm Adge Thchnolgy Butyl spacer
Butyl Spacer is a new product ,it Summarize the advantages and disadvantages of traditional products to optimize and improved products according to market demands.the surface is made of 3003 alloy aluminum strip, Internal use of polymer PVC material,3A molecular sieves, butyl silicone sealant.
Chnspacer is a new product ,it Summarize the advantages and disadvantages of traditional products to optimize and improved products according to market demands.the surface is made of 3003 alloy aluminum strip, Internal use of polymer PVC material,3A molecular sieves, butyl silicone sealant.
Keywords: warm edge spacer.flexible spacer bar.rubber spacer with aluminum
Use for Manufacturing building doors and windows,Train,Bus,insulating glass ,insulating door, shutter,Refrigeration equipment and so on.
| Raw material options | |||||
| No. | Material name | Material | producing area | composition | Technical requirements |
| 1 | Inner sealant | Butyl rubber | China | butyl sealant. Calcium powder,polyisobutylene | Q/PHX001-2014 |
| 2 | External sealant | Polymer adhesive | Germany | BASF polyisobutylene,butyl sealant, Calcium | GB/T 19187-2003 |
| 3 | Aluninum strip | 3003 aluminum alloy | China | AL-Mn | GB/T 3190 1996 EN AW 3003/AlMnlCu EN 573 3-1994 |
| 4 | Aluminum foil film | Aluninum foil film | China | Aluainum foil membrane | GB/T 28118-2011 |
| 5 | Molecular seive | 3A nolecular sieve | China | 2/3K20•1/3Na20 •Al203 •2Si02 •9/2H20 | GB/T 10504 2017 |
| 6 | heat-insulating film | PVC | China | PVC | GB3830-83 |
Service support
1.24 hours technical supporting by e–mails.
2. 24 hours calling service & online service.
3. Oversea door–to–door service available.
4. User manual and detailed operating video1CD available.

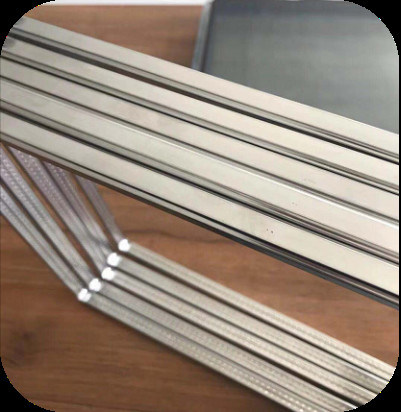

Cold Adge Aluminum Sapcer
Material of Insulating glass benable aluminum spacer bar is 3003 alloy aluminum,Adopt international advanced roll forming
technology high-frequency welding process, without destroying the molecular structure of raw materials, ensuring molecular sieve
activity, no splitting during bending and filling.Remark:
1.Thickness is customized according to requirements
2.The packing quantity of each carton is decided by model, thickness and length
3.limit deviation of peripheral wall thickness is ±0.025mm.
| Model | Thickness(mm) | Length(m) |
AmountPer box(m) |
Package dimensions(m) |
| 5.5 | 0.2-0.35 | 5M | 3960 | 5×0.2×0.18 |
| 7.5 | 0.2-0.35 | 5M | 2295 | 5×0.2×0.18 |
| 8.5 | 0.2-0.35 | 5M | 2700 | 5×0.2×0.18 |
| 9.5 | 0.2-0.35 | 5M | 2400 | 5×0.2×0.18 |
| 10.5 | 0.2-0.35 | 5M | 1950 | 5×0.2×0.18 |
| 11.5 | 0.2-0.35 | 5M | 2100 | 5×0.2×0.18 |
| 13.5 | 0.2-0.35 | 5M | 1800 | 5×0.2×0.18 |
| 14.5 | 0.2-0.35 | 5M | 1650 | 5×0.2×0.18 |
| 15.5 | 0.2-0.35 | 5M | 1500 | 5×0.2×0.18 |
| 16.5 | 0.2-0.35 | 5M | 1500 | 5×0.2×0.18 |
| 17.5 | 0.2-0.35 | 5M | 1375 | 5×0.2×0.18 |
| 18.5 | 0.2-0.35 | 5M | 1250 | 5×0.2×0.18 |
| 19.5 | 0.2-0.35 | 5M | 1250 | 5×0.2×0.18 |
| 21.5 | 0.2-0.35 | 5M | 1100 | 5×0.2×0.18 |
| 23.5 | 0.2-0.35 | 5M | 990 | 5×0.2×0.18 |
| 24.5 | 0.2-0.35 | 5M | 960 | 5×0.2×0.18 |
| 26.5 | 0.2-0.35 | 5M | 880 | 5×0.2×0.18 |
We also supply the automatic spacer bending machine as following:
Main feature
• Germany Siemens PLC control system, touch screen interface
• Japan FUJI CNC servo control system
• Four spacer size storage units
• Using servo system to control feeding mechanism
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• Can bend aluminum spacer, Technoform,
