Product Details:
|
| Name: | Warm Adge Sapcer With Butyl Sealant For Insulating Galss | Material: | Aluminum+Rubber |
|---|---|---|---|
| Advantage: | Warm Adge New Technolgy | ||
| High Light: | glass processing machines,double glazing production |
||

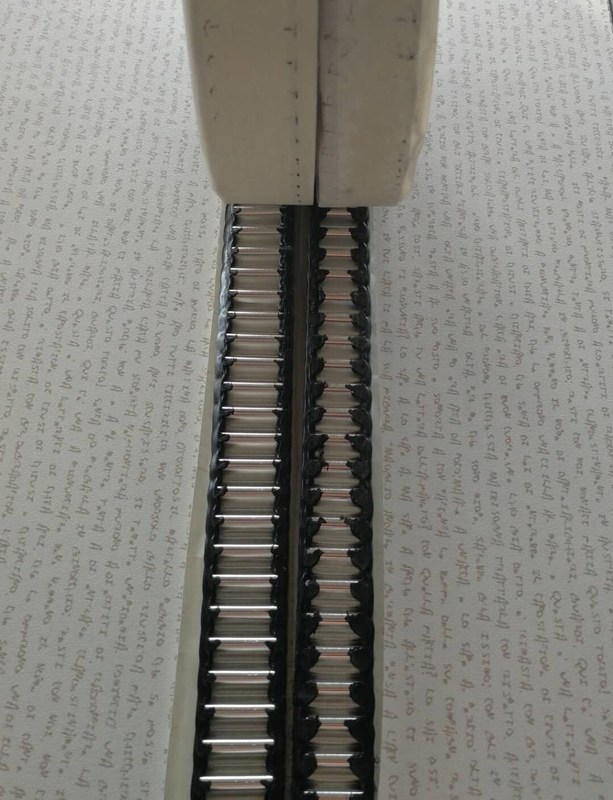

Butyl sapcer with warm adge technolgy for insulating galss processing
Sealing Robot - Best Partner Working with Warm Adge IG Syetem

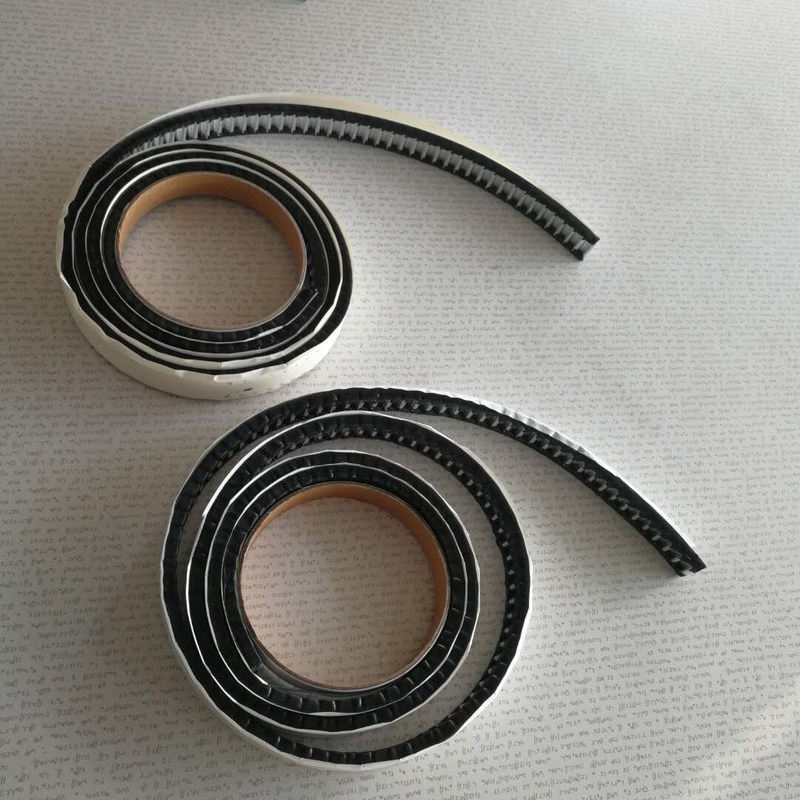

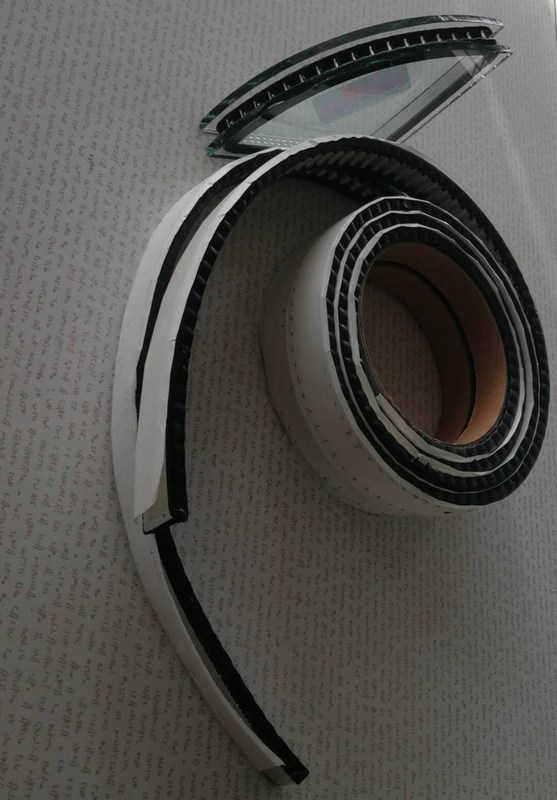

Warm adge sapcer with butyl sealant for insulating galss
|
►►► Insulating glass warm edge with sound insulation, heat insulation, energy saving, safety, anti - fog and other functions applicable to building curtain wall, Windows and doors glass, trains, ships, aircraft, refrigerators.
|
| Colour Gold, Silver, Black | ||||||
| Specifications and technical parameters | ||||||
| size (mm) | width (mm) | thickness (mm) | m/carton | weight/ carton | carton | |
| B ± | A ± | m + | kg ± | big carton | ||
| 6 | 8.0 ±0.1 | 6.5 ±0.1 | 800 +0.5 | 60.50 ±1.5 | ||
| 7 | 9.0 ±0.1 | 6.5 ±0.1 | 760 +0.5 | 62.10 ±1.5 | carton size | L*W*H:570*470*570 |
| 8 | 10.0 ±0.1 | 6.5 ±0.1 | 700 +0.5 | 62.40 ±1.5 | 20'GP container | 144 carton with pallet |
| 9 | 11.0 ±0.1 | 6.5 ±0.1 | 670 +0.5 | 63.20 ±1.5 | size of roll | Ø535x465 |
| 10 | 12.0 ±0.1 | 6.7 ±0.1 | 630 +0.5 | 62.50 ±1.5 | center diameter | Ø37 |
| 11 | 13.0 ±0.1 | 6.7 ±0.1 | 600 +0.5 | 66.50 ±1.5 | small carton | |
| 12 | 14.0 ±0.1 | 6.7 ±0.1 | 550 +0.5 | 64.30 ±1.5 | ||
| 13 | 15.0 ±0.1 | 7.0 ±0.1 | 520 +0.5 | 64.30 ±1.5 | carton size | L*W*H:470*460*470 |
| 14 | 16.0 ±0.1 | 7.0 ±0.1 | 500 +0.5 | 65.50 +1.5 | 20'GP container | 176carton with pallet |
| 15 | 17.0 ±0.1 | 7.0 ±0.1 | 440 +0.5 | 62.20 ±1.5 | size of roll | Ø465x465 |
| 16 | 18.0 ±0.1 | 7.0 ±0.1 | 430 +0.5 | 63.80 ±1.5 | center diameter | Ø37 |
| special sizes can be customized, MOQ 20 thousand meters. | ||||||
Sealing machine : Automatic sealing robot / Manual sealants spreading machine with two pumps for silicone sealants, polysulfide sealnats, silicone structure sealants, Polyurethane sealants.
1. 2000mm*2500mm / 2500mm*3500mm / 2500mm*4000mm (Large size can be customerized)
2. Triple glass
3. Step glass ( 3 or 4 sided step glass )
4. Shaped glass
5. Two sets of sealing pumps with dual gluing head
6. Colors can be changed
7. Machine length can be changed
8. With code scanning function
Single / double glue supply system can be selected. The single glue supply system is equipped with one set of A pump and B pump, which is suitable for a kind of sealant. Double glue supply system is suitable for two different kinds of sealant. Polysulfide, silicone, silicone structural and polyurethane sealants are all suitable for this machine.
| ax. glass size | 2500*4000mm |
| Min. glass size | 400*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 15kw |
| Overall dimension | 11000*2000*3500mm |
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
