Product Details:
|
| Name: | Rubber Spacer With Aluminum Sapcer Warm Adge Technolgy | Advantage: | Warm Adge |
|---|---|---|---|
| Material: | Butyl Sapcer | ||
| High Light: | glass processing machines,double glazing production |
||
Rubber Spacer With Aluminum Sapcer warm adge technolgy for insulating glass
WARM ADGE - FOR FUTURE TECHNOLGY INSULATING GALASS NEW WORLD

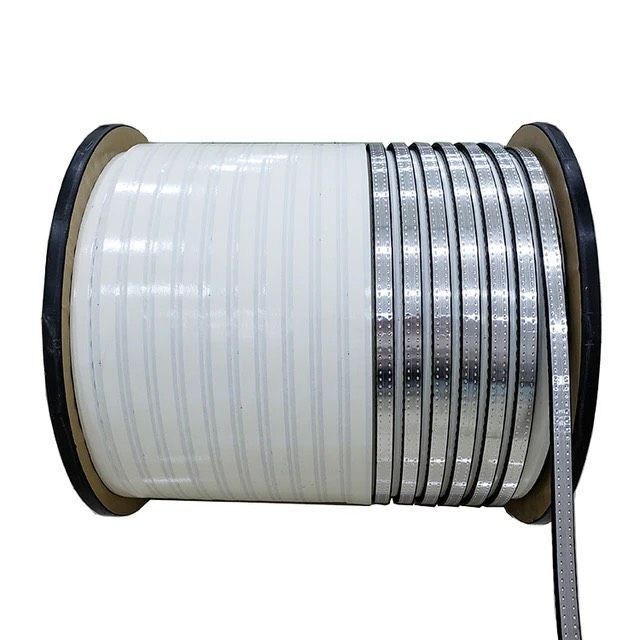

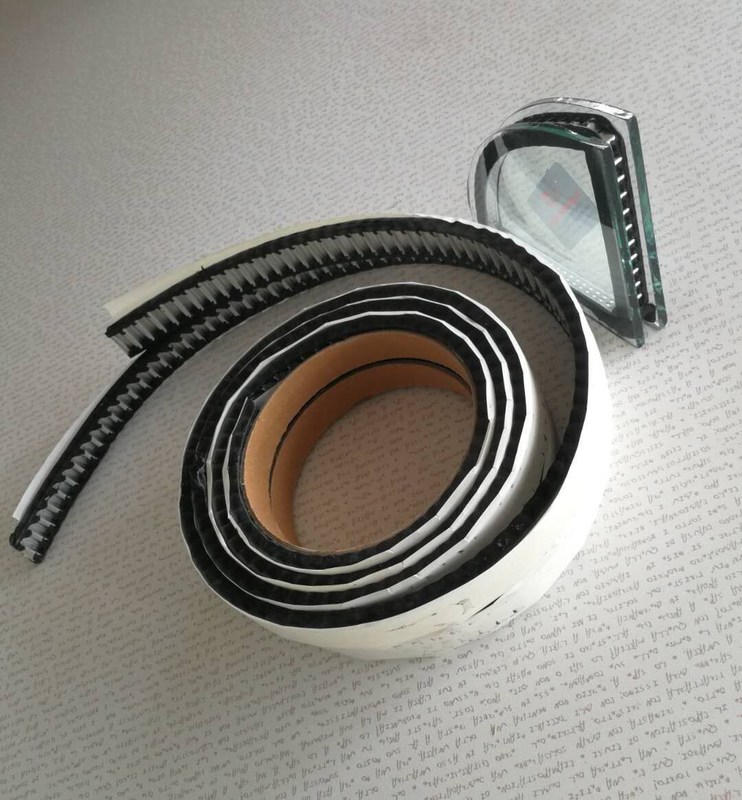

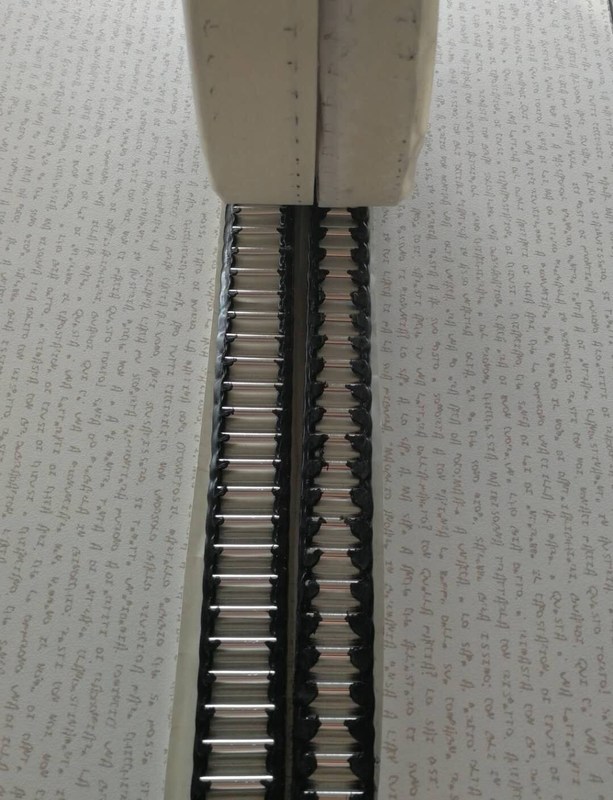

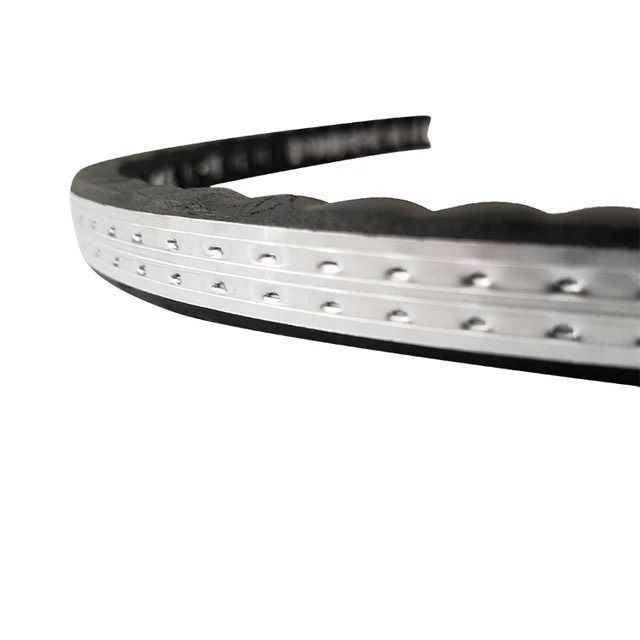

Warm edge spacer.flexible spacer bar.rubber spacer with aluminum
Using method and attention
All the glass should be dry and clean. The insulating glass should be made by the following steps.
1. Putting the spacer onto the corner of one glass, then making the spacer straight, at the same time keeping the spacer around the surface of the glass, at the end, reserved 2.5mm– 3.0mm to the edge of the glass and the spacer should be reserved about 20mm more joint the pact pressing the joint, making no space in the circle.
2. Then putting another glass onto the one which has the spacer above, making sure the two pieces of glass are mutual alignment in both vertical and horizonal.
3. Putting them into the hot press machine with the temperature between 110–140Š inside and 50~60Šthe outlet.
4. According to the structure requirement of the insulating glass, two component silicone sealant could be putting outside of the spacer. Then a piece of insulating glass should come out.
5. The butyl spacer must be carried out in accordance with this attention otherwise may cause the seal leakage.
| Raw material options | |||||
| No. | Material name | Material | producing area | composition | Technical requirements |
| 1 | Inner sealant | Butyl rubber | China | butyl sealant. Calcium powder,polyisobutylene | Q/PHX001-2014 |
| 2 | External sealant | Polymer adhesive | Germany | BASF polyisobutylene,butyl sealant, Calcium | GB/T 19187-2003 |
| 3 | Aluninum strip | 3003 aluminum alloy | China | AL-Mn | GB/T 3190 1996 EN AW 3003/AlMnlCu EN 573 3-1994 |
| 4 | Aluminum foil film | Aluninum foil film | China | Aluainum foil membrane | GB/T 28118-2011 |
| 5 | Molecular seive | 3A nolecular sieve | China | 2/3K20•1/3Na20 •Al203 •2Si02 •9/2H20 | GB/T 10504 2017 |
| 6 | heat-insulating film | PVC | China | PVC | GB3830-83 |
New warm edge composite rubber strip is a new product of our factory. By making improvement and innovation
on the traditional composite rubber strip, the warm edge composite rubber strip has overcomed the shortcomings
of the traditional ones at the same time retain the original merits. The product has reached the international level
of the similar products, filling the gap in the domestic market. It is revolutionary progress in the single sealing
field.
Service support
1.24 hours technical supporting by e–mails.
2. 24 hours calling service & online service.
3. Oversea door–to–door service available.
4. User manual and detailed operating video1CD available.
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
