Double Glazing Glass Processing Line For Step And Triple Insulating Glass

Double Glazing Glass Processing Line For Step And Triple Insulating Glass

Double glazing glass processing machines are used to make the double or triple glass for buildings, windows and doors, ship, train, refrigerators, display cabinets and many other glass fields. The glass size can be from 300mm*300mm to 2500mm*3500mm, even more large size. The double glazing glass are more and more popular in the world.

Optional specification:

1. Common double glazing glass line without filling gas

2. Gas filling for double glazing glass line

3. Double gas filling for double glazing glass line

4. Super fast double glazing glass line

Optional function:

1. Making triple glazing glass

2. Making step glazing glass

3. Making shaped glazing glass

4. Making insulating glass with low-e film

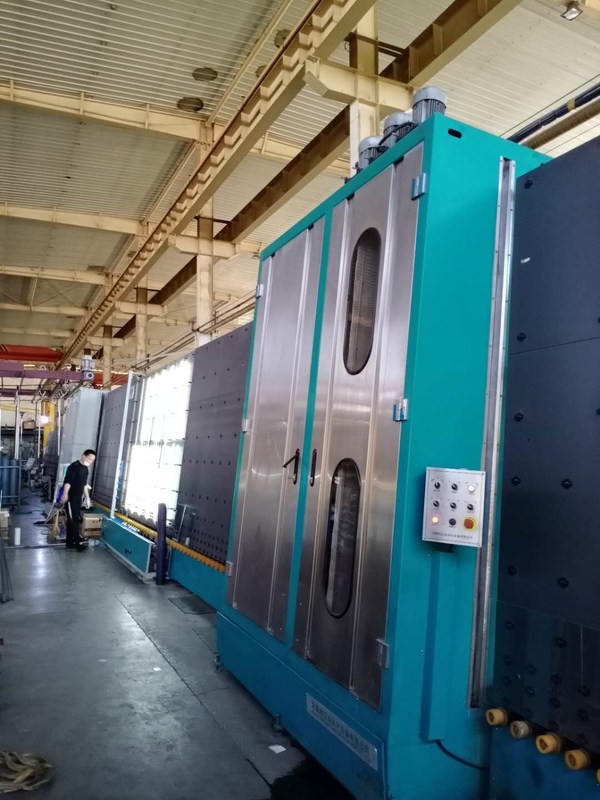

The details of the double glazing glass processing line :

The line has 7 sections:

01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing( or with filling gas ); 07 discharge section.

• PLC control system, touch screen interface
• Using Siemens servo motors
• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
• Pre-washing (Optional)
• New air knife uses aluminum profile (Duckbill Air Knife)
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
• European silencer system
• Stainless steel material

Special advantages:

1. Air knife uses the new design, the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

2 . Transfer structure are all equipped with power, which can transfer different sizes of glass quickly.

3. The pressing board has adjustable points to prevent to deform, the same with bystronic technology.

4. Ultra-long insulating glass can be compressed twice

5. Adopts conveyor belt to transfer glass, uses servo motor to press glass

6. The pressing plate can be opened for easy maintenance

7. Pressing board with adjustable structure to guarantee long-lasting service life

Optional pressing methods:

Pressing by servo

Pressing by screw

The advantages of filling gas online :

• Automatically fill argon gas with significant sealing effect, higher argon content
• Set zones to fill different size of glass with follow-up sealing method reduces argon loss
• Can set gas value and show the process of filling gas on the touch screen
• Fast reacting sensor for permanent control of gas filling process
• Gas concentration can reach more than 90%
• No need to drill holes on the spacer frame
• Standard gas is Argon gas

The advantages of the super fast double glass line:
