Product Details:
|
| Brand Name: | LIJIANG GLASS | Voltage: | 3P 380v 50hz |
|---|---|---|---|
| Weight: | 6500kg | Color: | The Color Can Be Customized |
| Control System: | Siemens PLC | Min.Glass Size: | 450*280mm |
| Power(W): | 40KW | Dimension(L*W*H): | 23500*3500*3700mm |
| The Optional: | Gas Filling, Double Gasfilling,Gas Float Line | Function: | Double Gas Filling |
| Model: | LJBZ 2535 | Type: | Vertical |
| Brand: | LIJIANG GLASS | Total Power: | 3P 380V 50HZ |
| Glass Thickness: | 3-15mm | Max.Glass Size: | 2500mm*3500mm |
| Air Pressure: | ≥0.8Mpa | Insulating Glass Thickness: | 50mm |
| Washing Brushes: | 3 Pairs | ||
| High Light: | glass processing machines,double glazing production |
||

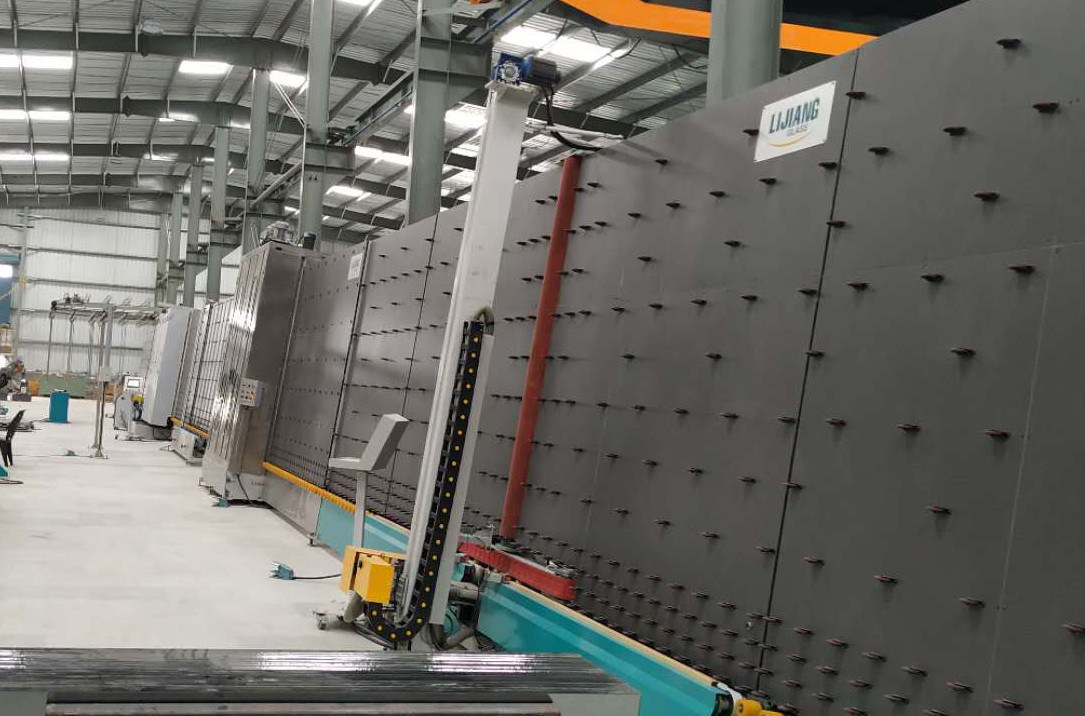

Automatic Insulating Glass Production Line(double gas filling)
It is the first one in China to use adjustable points to ensure that the platen will never deform.
We adopt CNC technology into the pressing board. We designed the adjustable points inside the pressing board to keep the back plate straight all the time. In China, except LIJIANG, no one can guarantee that the pressing board will remain vertical and straight all the time after used 10 or 20 years. However, we solve this problem already.
LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits.
It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.
Customer & Customer collaboration
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated product development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railwayline,it’s very convent for transportation.The company adheres to the “Hi-Q products”. We are striving to create thetop-grade products through setting up Tchnology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology.
