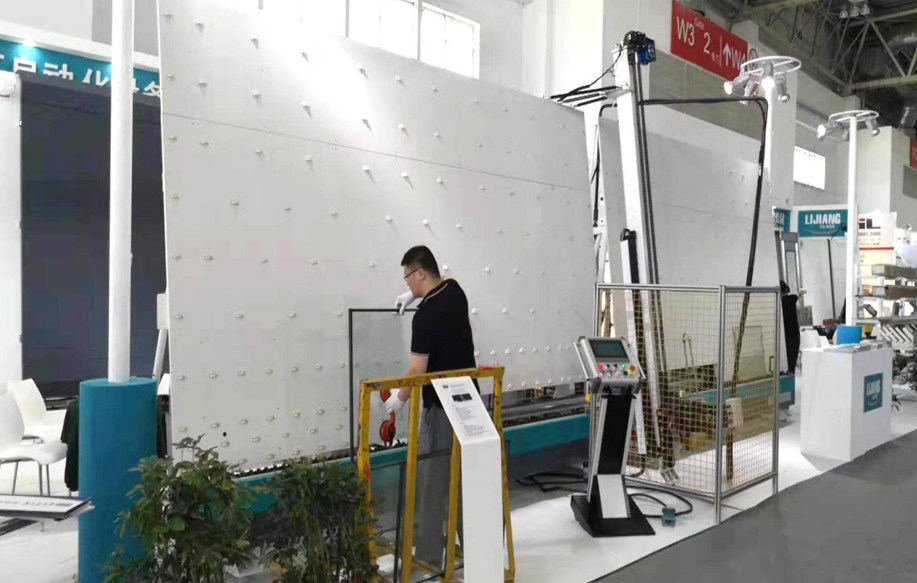

|Production Name:||Automatic Sealing Robot||Application:||Sealing Double / Triple / Step Glazing Glass|
|Maximum Glass Size:||2500mm*4000mm||Minimum Glass Size:||400mm*280mm|
|Glass Thickness:||12 - 60mm||Working Speed:||50 M/min|
|Step Glass:||3 Or 4 Sided Step||Glue System:||Dual Double Glue Heads|
glass processing machines,
double glazing production
Sealing machine : automatic sealing robot / manual sealants spreading machine with two pumps
1. 2000mm*2500mm / 2500mm*3500mm / 2500mm*4000mm/ 2500mm*4500mm / 3000mm*4000mm

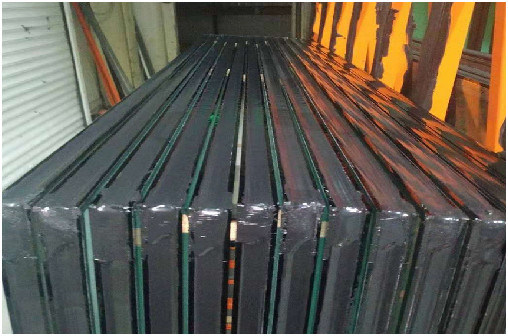

2. Triple glass
3. Step glass ( 3 or 4 sided step glass )
4. Shaped glass
5. Two sets of sealing pumps with dual gluing head
6. Colors can be changed
7. Machine length can be changed
8. With code scanning function

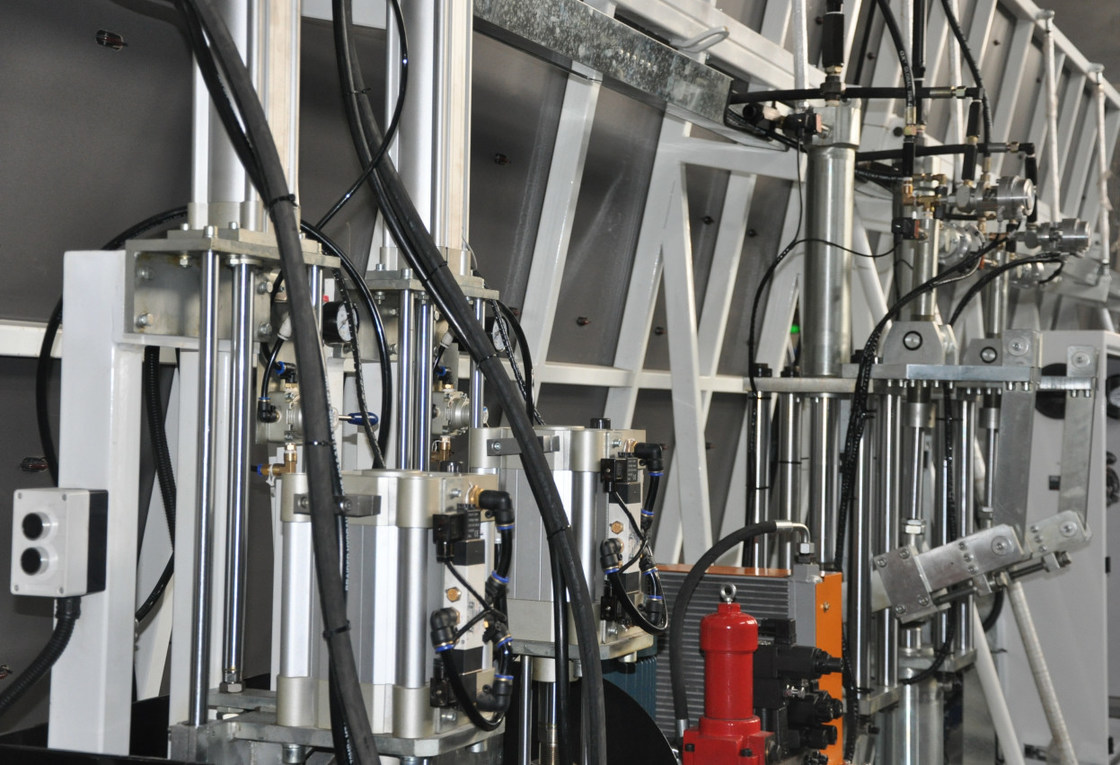

Single / double glue supply system can be selected. The single glue supply system is equipped with one set of A pump and B pump, which is suitable for a kind of sealant. Double glue supply system is suitable for two different kinds of sealant. Polysulfide, silicone, silicone structural and polyurethane sealants are all suitable for this machine.
• Japan Yaskawa servo system control, 8 sets of servo control system, full automatic and high-efficiency sealing machine
• 4 sections, can storage glass
• Adopt timing belt, smooth transfer and accurate position
• Automatically repair glass corners with scraper and roller
• Automatically measure glass size, glue depth (30mm)
• Every auto-function is with manual operation
• Can use silicone, polysulfide and silicone structural sealants
• Glue head is in the front of the machine, which is easy for coating step glass
• Can be connected with insulating glass processing line
|Max. glass size||2500*4000mm|
|Min. glass size||400*300mm|
|Voltage power||380V 15kw|
LIJIANHG‘s R&D engineers are with 10 to 20 years of working experience, R&D engineers of LIJIANG have very strict requirements on insulating glass equipment and pursue to make glass processing more simple and intelligent.
LIJIANG GLASS's products mainly include: IG line series; Automatic sealing robot series; Low-e film edge deletion machine; Spacer bending machine series; Butyl extruder machine series; Desiccant filling machine and other auxiliary insulating glass machines. About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.
In 2016, we won the title of Jinan Golden Seed Enterprise and government subsidy by virtue of the first fully automatic butyl extruder machine with six axis independently developed.
In 2018, we won the title of national high-tech enterprise. During this period, we cooperated with many famous universities and the 53 Research Institute of the Ministry of ordnance industry to develop high-tech products.
Our corporate vision:
To make glass processing simpler and more intelligent, to be a high cost-effective specialty in the glass machinery industry, to better feed back and serve our customers, employees and society with better products and better services, and to make our life better!
Contact Person: Hermione
Tel: 0086 18353163986
