|Name:||Vertical Insulating Glass Production Line||PLC Brand:||Simens|
|Glass Thickness:||3-15mm||Insulating Glass Thickness:||50mm|
|Washing Brushes:||3 Pairs||Glass Conveyor Speed:||45m/min|
|Total Power:||380V 50Hz 40KW||Usage:||Making Insulating Glass|
glass processing machines,
double glazing production
Product overview of Insulating glass production line

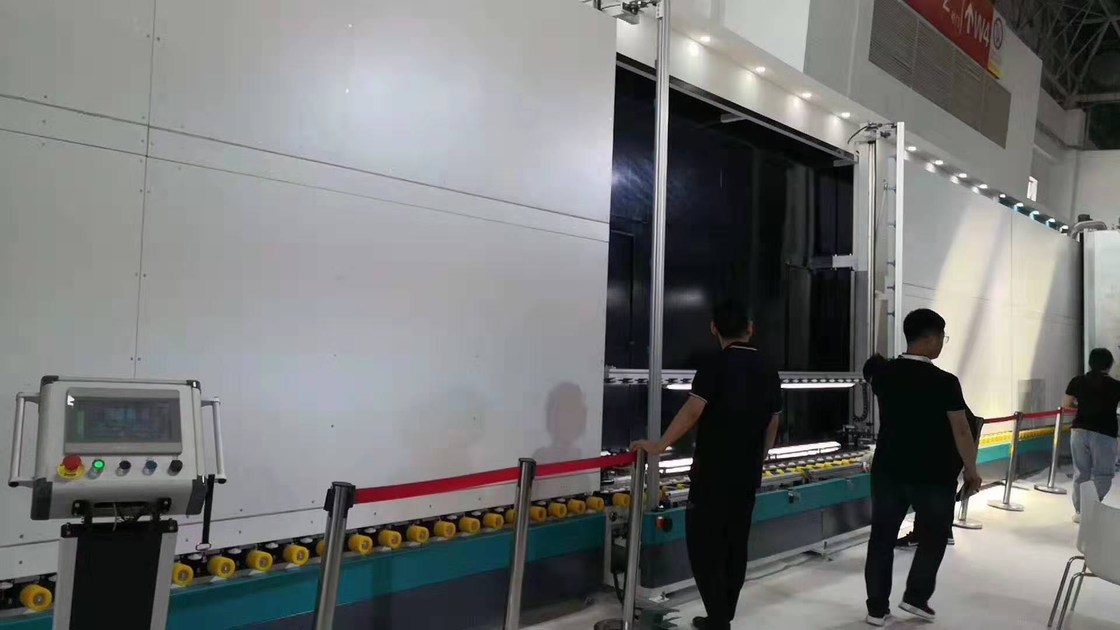

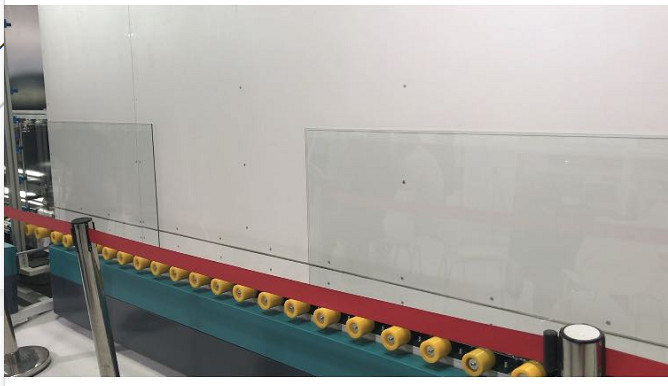

The insulating glass production line is mainly used for processing and making insulating glass. The insulating glass production line mainly consists of four sections: feeding section, cleaning and drying section, inspection section and closing section. The four sections are placed vertically with the same dip angle, with compact structure, practical economy, high efficiency and convenient maintenance.
Technical data of Vertical insulating glass production line
|Max. glass size||2500mm*3500mm|
|Min. glass size||280mm*400mm|
|Glass thickness||3-15mm / 19mm|
|Insulating glass thickness||50mm / 60mm|
|Glass washing speed||2-10m/min|
|Glass conveyor speed||45m/min|
|Washing brushes||3 pairs|
|Water supply||Water consumption:0.5t/h conductivity:40μs/cm|
|Air supply||Flow: 0.8m/min|
|Total power||3P 380V 50HZ 40KW|
1)Making double IG units
2)Making triple (3-layer) IG units
3)Making low-e IG units
4)Making four-sides IG units
5)Making shaped IG units
6)Filling argon gas automatically
Feature of automatic insulating glass production line
1.The washing machine uses six soft (Low-e) brushes with the 0.1mm diameter only.can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.
2.The machine adopts Siemens control system, equipped with high resolution touch screen.
3.The special structure inside the washing machine can automatically recognize glass thickness. Allowing different thicknesses of glass to be transferred quickly, increasing production speed. According to the test, it takes only 22s to produce a 1m*m insulating glass.
4.Air-buffered backrest prevents glass scratches and glass wheel marks
5.We use adjustable points to ensure that the platen will never deform.
We adopt CNC technology into the pressing board. We designed the adjustable points inside the pressing board to keep the back plate straight all the time. In China, except LIJIANG, no one can guarantee that the pressing board will remain vertical and straight all the time after used 10 or 20 years. However, we solve this problem already.
6.The pressing box uses servo motor and timing belt to support pressing IG units.
Servo motor can be accurately calculated the thickness of the glass and aluminum spacer. Compared with traditional hydraulic station, servo motor can guarantee the precise working pressure and protect the glass from damage, at the same time increasing the working speed.
Timing belt is jagged, making the pressing more accuratly.
7.Automatic inflating function inside the slab, automatically inflating according to the size of the glass, improving inflation efficiency and gas utilization rate.The IG line fills argon gas with 22s only for one piece of 1m*1m double glazing glass.
Jinan Lijiang Automation Equipment Co., Ltd. is an enterprise which integrated glass processing equipment research and development, sales and service into a whole.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions.
Contact Person: Danny
