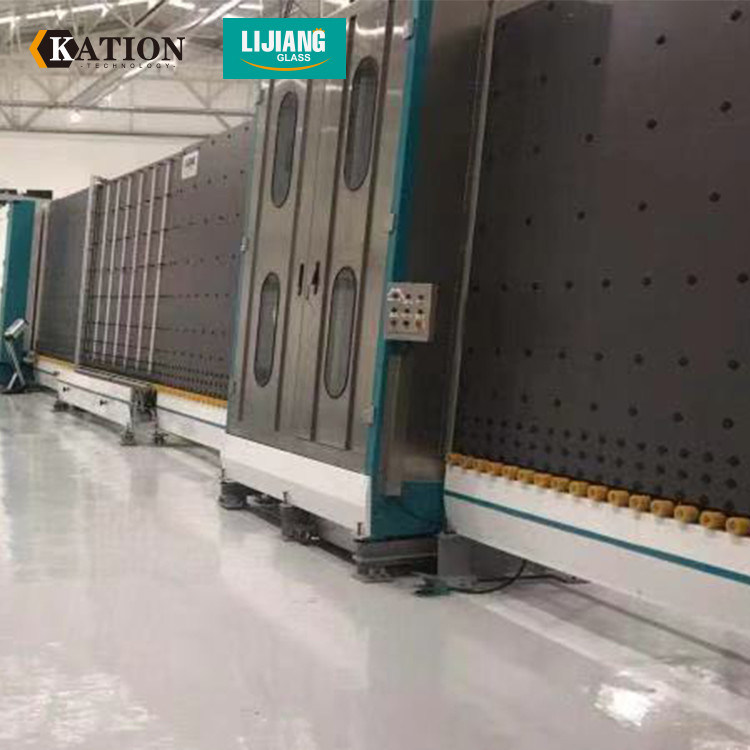

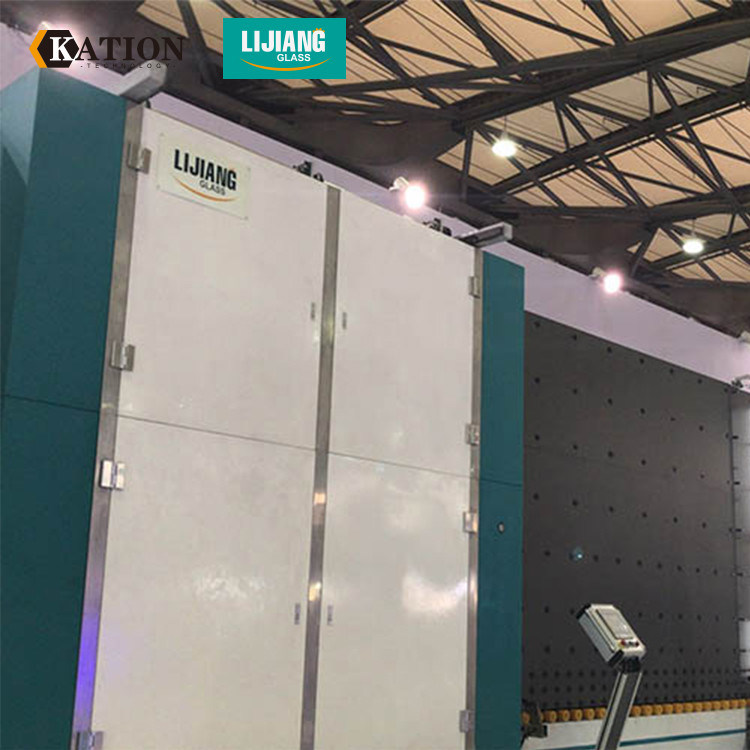

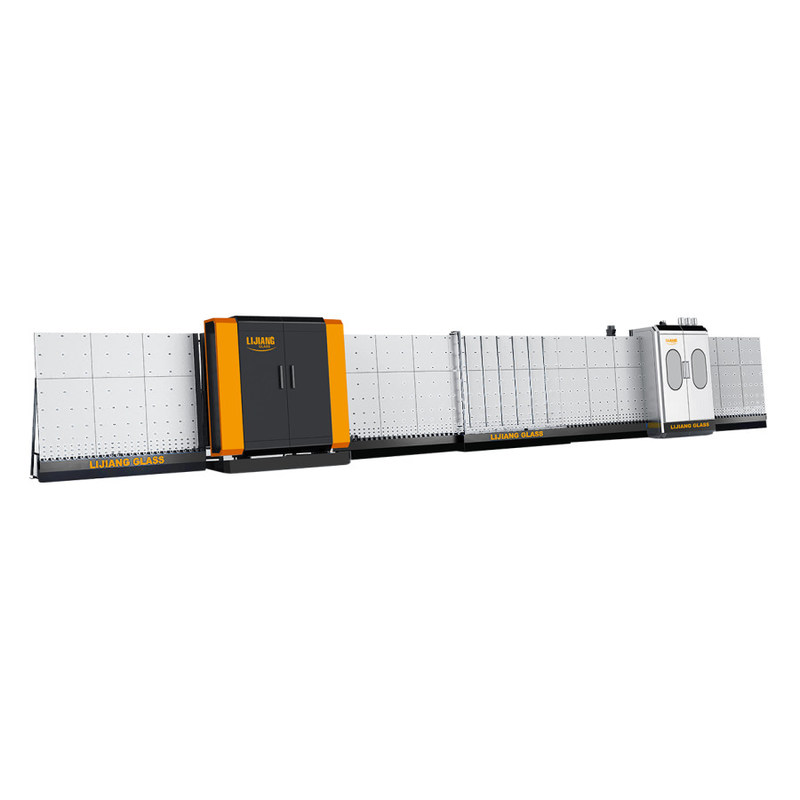

                                                                 Automatic Insulating Glass Production Line (Air floating)

JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated product development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railwayline,it’s very convent for transportation.The company adheres to the “Hi-Q products”. We are striving to create thetop-grade products through setting up Tchnology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology.

• Energy saving of pressing box

The pressing box adopts 3 micro switches, which divide the pressing part into 4 regions.

When each micro switch receives the signal, it will add a part of the working area. When the corresponding micro switch is not touched, the region does not work.

• When glass L ≤ 1.5m, Region 1 works.
• When glass L =1.5m-2.3m, Region 1 & Region 2 work.
• When glass 2.3m < L < 3.2m, Region 1, Region 2 & Region 3 work.
• When glass 3.2m = L ≤ 4m, All Region work together.

What’s more, the two sides and bottom of the pressing box will be sealed to ensure the inflating effect. It can save much argon gas and electricity power.

Main functions

1). Making double IG units

2). Making triple (3-layer) IG units

3). Making low-e IG units

4). Making four-sides IG units

5). Making shaped IG units

6). Filling argon gas automatically

7). Making 2 pieces of IG units (It is a special feature, LIJIANG has the exclusive patent in China)

Automatic High - speed filling argon gas

The IG line fills argon gas with 22s only for one piece of 1m*1m double glazing glass. Can set and display the argon gas value on the screen directly. From the screen, we can observe the argon gas content and filling speed intuitively.

When two pieces of glass are closing, it will start to fill argon gas from the bottom of the glasses. When the previous set value is reached, inflation will stop automatically.

                                                 Electrical parameters
