Automatic Insulating Glass Production Line With Double Gas Filling

Automatic Insulating Glass Production Line With Double Gas Filling
Automatic Insulating Glass Production Line With Double Gas Filling Automatic Insulating Glass Production Line With Double Gas Filling Automatic Insulating Glass Production Line With Double Gas Filling Automatic Insulating Glass Production Line With Double Gas Filling

Large Image :  Automatic Insulating Glass Production Line With Double Gas Filling

Product Details:
Place of Origin: China,shandong
Brand Name: LIJIANG glass
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden
Delivery Time: 30days

Automatic Insulating Glass Production Line With Double Gas Filling

Description
Voltage: 3P 380v 50hz Weight: 6500kg
Color: The Color Can Be Customized Control System: Siemens PLC
Min.Glass Size: 450*280mm Power(W): 40KW
Brand Name: LIJIANG GLASS Dimension(L*W*H): 23500*3500*3700mm
The Optional: Gas Filling,double Gas Filling,Gas Float Line Function: Gas Filling
Model: LJBZ 2535 Type: Vertical
Brand: LIJIANG GLASS Total Power: 3P 380V 50HZ
Glass Thickness: 3-15mm Max.Glass Size: 2500mm*3500mm
Air Pressure: ≥0.8Mpa Nsulating Glass Thickness: 50mm
Washing Brushes: 3 Pairs
High Light:

glass processing machines

,

double glazing production

                                                           Automatic Insulating Glass Production Line(gas filling)



Production of insulating glass

First, put two pieces of glass in the feeding section in turn, step on the foot, let the glass into the washing section, according to the then temperature adjustment panel stepless speed control knob or in the touch screen to adjust the speed of the washing machine, adjust the speed washing air drying.Automatic Insulating Glass Production Line With Double Gas Filling 0
Glass washing section, by washing discharge section, to the box on the checking period of stop, check whether the glass is clean, qualified after stepping on foot switch to the first piece of glass into the plate or piece of positioning, bracket or beam hold a glass plate before pressing to absorb the glass in the past, board face to open in place, in washing discharge period of the second piece of glass in the middle of the first piece of glass will leave frame period since the launch, into the box on the check period, positioning stop, qualified manual frame stepping on foot switch, the glass into pieces positioning pressing. The compressed insulating glass can be automatically transferred to the feeding section of the automatic sealing glue line. (into the turntable, to photoelectric stop. Step on the foot and the tilting table will fall down automatically. After the glass is removed, step on the foot and the tilting table will rise. (select whether to use the rollover function of the rollover table according to the size of the glass) (rollover table is configured for selection)

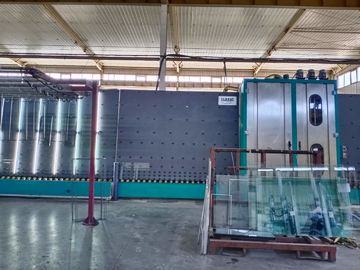

Automatic Insulating Glass Production Line With Double Gas Filling 1



Triplex glass

In the production of tri-glass, after the first two pieces are pressed, the front pressing plate of the suction cup glass will be opened, and the third piece of glass will be placed in the assembly section of the aluminum frame. After the glass is finished, it will enter the flat pressing section of the composite plate for flat pressing, and then it will be transferred to the turning table automatically..

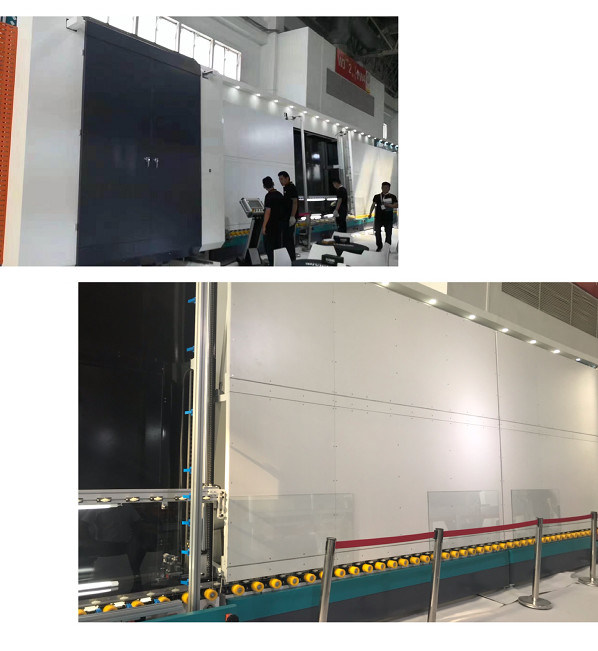

Automatic Insulating Glass Production Line With Double Gas Filling 2Automatic Insulating Glass Production Line With Double Gas Filling 3

Shaped, the first piece of glass automatically stop at the end of the aluminum frame assembly period, artificial put aluminum frame,

the second piece of glass at the same time automatic stop at the end of the cleaning discharging period, artificial glass moved close to aluminum frame assembly, after the piece, stepping on foot switch, or better ones for pressing the glass into the close to the specified size

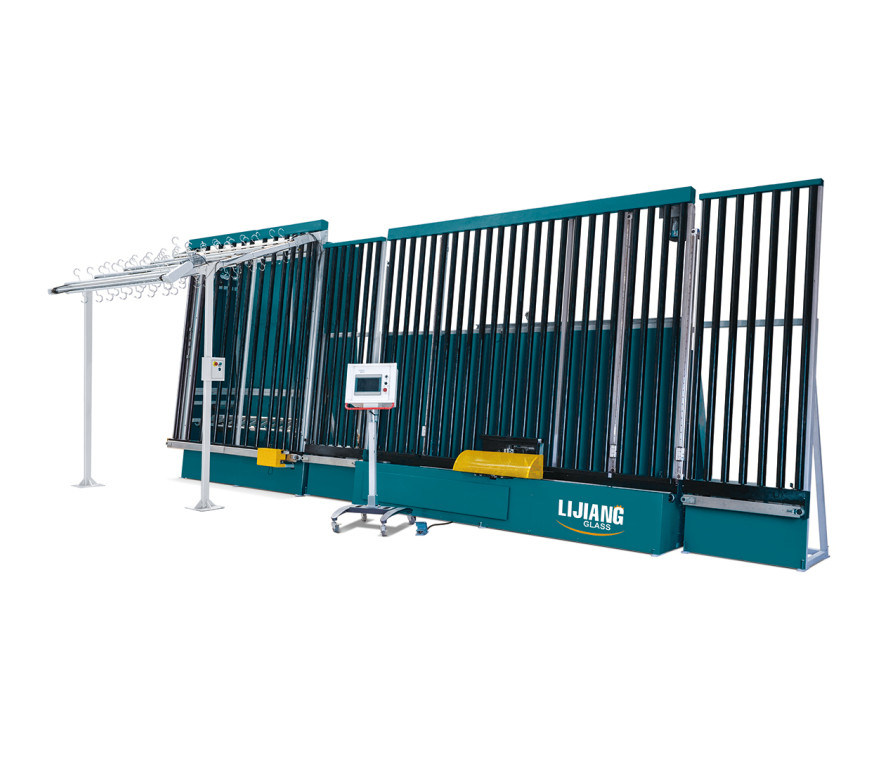

Automatic Insulating Glass Production Line With Double Gas Filling 4







Max.glass size

2500*3500mm
Min.glass size 450*280mm
glass thickness 3-15mm
insulating glass thickness 50mm
voltage 3P 380V 50HZ
control system Siemens PLC
air pressure ≥0.8Mpa

FAQ
1.Question:The delivery time ?
answer: normally no more than 10 days
2.Question:electric parts use ?
answer : SIEMENS
3. Where is the factory?
answer : JINAN CITY. SHANGDONG PROVINCE , CHINA .
