Product Details:
|
| Production Name: | Double Glass Processing Line | Application: | Double And Triple Glass |
|---|---|---|---|
| Maximum Glass Size: | 3000*4000mm | Minimum Glass Size: | 400mm*280mm |
| Glass Thickness: | 3 - 19mm | Gas Filling Way: | Filling Gas From Bottom |
| Pressing Solution: | Screw Pressing | Gas Consentration: | 99% |
| High Light: | double glazing production,insulating glass line |
||
1. IG line with gas filling
2000mm*2500mm / 2500mm*3200mm / 3000mm*4000mm / 3300mm* 4000mm
2. IG line without gas filling
2000mm*2500mm / 2500mm*3500mm / 2500mm*4000mm / 2500mm*4500mm/ 3000mm* 4000mm/ 3300* 6000mm
3. IG line with double filling and pressing
2500mm*3500mm
4. Glass thickness for single flat glass : 3 - 15mm / 3- 18mm / 3-19mm
5. IG thickness : 12 - 50mm / 12 - 60mm
1. German Siemens PLC control system, stable performance
2. New design of air knife, intelligent energy saving
3. 6 pieces of brushes are all used soft brushes
4. Automatically recognize low-e glass film
5. Display the washing speed online
6. Air knife of the washer can be adjusted automatically
7. Inspection lamps can be changed
8. Automatic centering of aluminum frame
9. Ultra-long (2500mm*3500mm) insulating glass can be compressed twice
10. Adopts conveyor belt to transfer glass, uses servo motor to press glass
11. The pressing plate can be opened for easy maintenance
12.Pressing board with adjustable structure to guarantee long-lasting service life
| NAME | ORIGIN | BRAND |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Transfer motor | Taiwan | LINHAI |
| Brush motor | Taiwan | LINHAI |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |

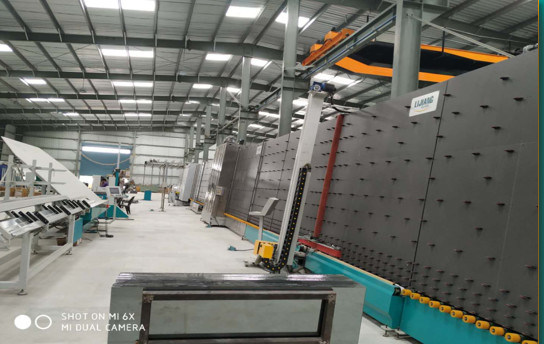

| IG line with gas filling online | ||
• Automatically fill argon gas with significant sealing effect, higher argon content
• Set zones to fill different size of glass with follow-up sealing method reduces argon loss
• Can set gas value and show the process of filling gas on the touch screen
• Fast reacting sensor for permanent control of gas filling process
• Gas concentration can reach more than 90%
• No need to drill holes on the spacer frame
• Standard gas is Argon gas
