Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $60000-65000/set
Packaging Details: wooden
Delivery Time: 30days
Supply Ability: 5sets/month

Automatic Insulating Glass Production Line,Insulating Glass Production Line.GLASS LINE

Description
Voltage: 3P 380v 50hz Weight: 6500kg
Color: The Color Can Be Customized Control System: Siemens PLC
Min.Glass Size: 450*280mm Power(W): 40KW
Brand Name: LIJIANG GLASS Dimension(L*W*H): 23500*3500*3700mm
The Optional: Gas Filling,double Gas Filling,Gas Float Line Function: No Gas Filling
Model: LJBZ 2535 Type: Vertical
Brand: LIJIANG GLASS Total Power: 3P 380V 50HZ
Glass Thickness: 3-15mm Max.Glass Size: 2500mm*3500mm
Air Pressure: ≥0.8Mpa Insulating Glass Thickness: 50mm
Washing Brushes: 3 Pairs
High Light:

double glazing production

,

insulating glass line

                                                           Automatic Insulating Glass Production Line



  • APPLICATION

LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits.



                                          Automatic Insulating Glass Production Line,Insulating Glass Production Line.GLASS LINE 0

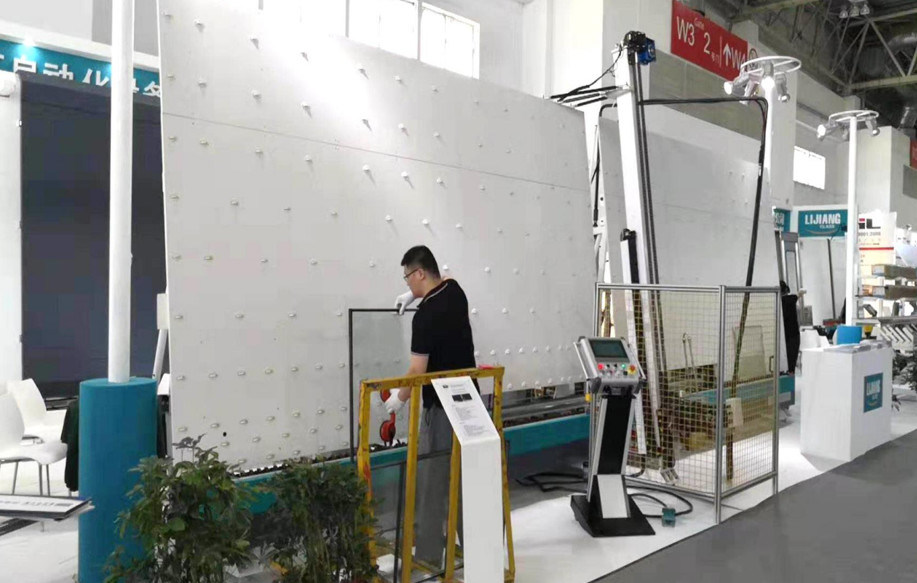

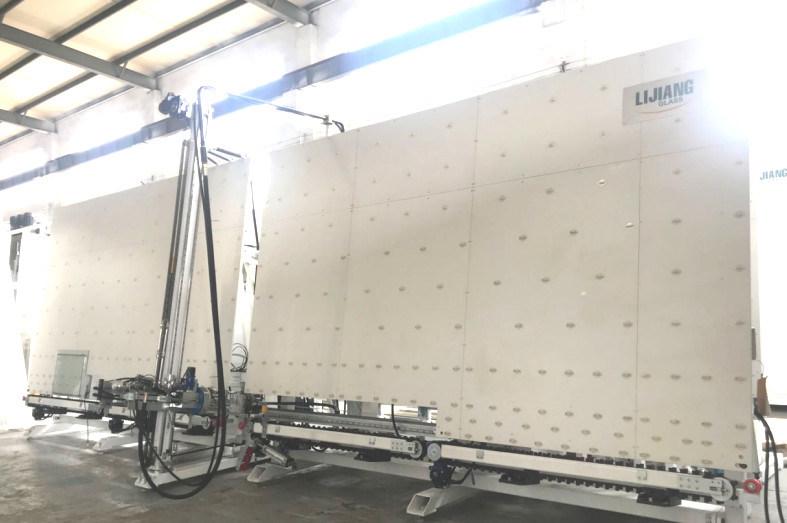

 Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass.

This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.



  • Detailed description
  • Transfer wheels VS air-floating technology



The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big and thick glass pass through smoothly.



The new air – floating technology uses air to support glass and transfer glass. When glass is washed clearly from the washing machine, using air to transport the glass, it won't be contaminated. Ensure that the produced insulating glass is of the highest quality.



                                                         Automatic Insulating Glass Production Line,Insulating Glass Production Line.GLASS LINE 1                        VS                     Automatic Insulating Glass Production Line,Insulating Glass Production Line.GLASS LINE 2





  • There is the Low-e glass sensor in the washing machine



This sensor is installed before washing machine. It can automatically recognize Low-e glass surface fast and precisely, preventing the glass from dropping Low-e surface.



                                    Automatic Insulating Glass Production Line,Insulating Glass Production Line.GLASS LINE 3               Automatic Insulating Glass Production Line,Insulating Glass Production Line.GLASS LINE 4



Max.glass size 2500*3500mm
Min.glass size 450*280mm
glass thickness 3-15mm
insulating glass thickness 50mm
voltage 3P 380V 50HZ
control system Siemens PLC
Type Vertical
