Product Details:
|
| Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
| Speed: | 0-47m/min | ||
| Highlight: | double glazing production,insulating glass line |
||

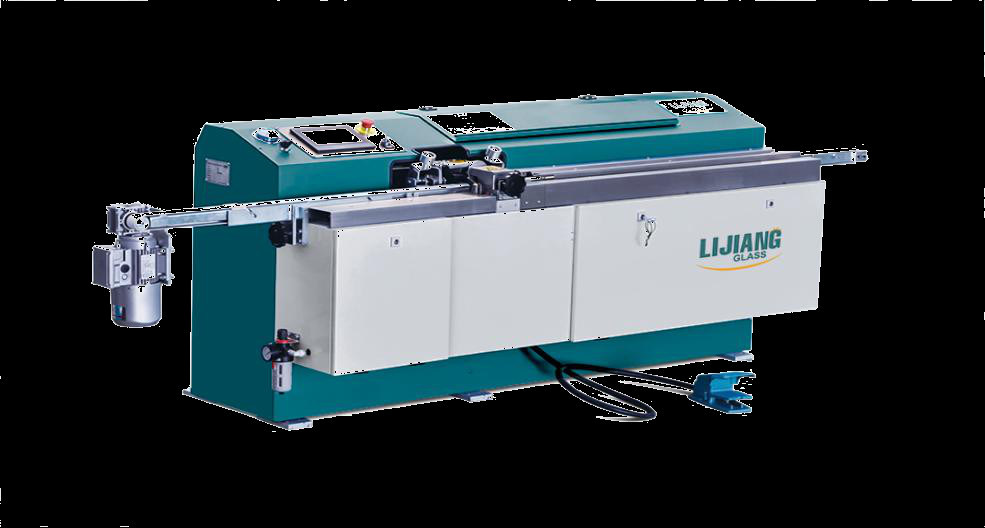

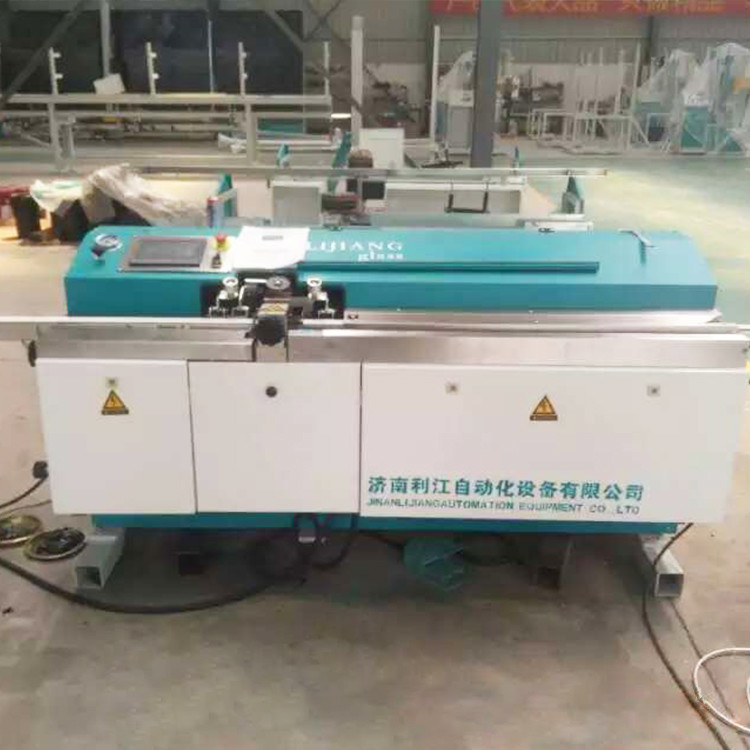

LJTB01 Butyl Extruder Machine
Application
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly
with hot melt butyl. This equipment use large electrical control panel which makes the operation
more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can
be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular
with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system,
which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support
system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the
heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be
adjusted automatically according to different aluminum spacer. The machine has reached the worldwide
technology with the characteristic of complete function and stable working mode.
Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
Main components
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
