Product Details:
|
| Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
| Speed: | 0-47m/min | ||
| Highlight: | double glazing production,insulating glass line |
||

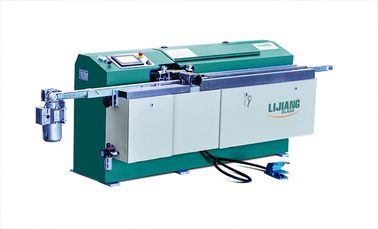

LJTB01 Butyl Extruder Machine
Application
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly
with hot melt butyl. This equipment use large electrical control panel which makes the operation
more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can
be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with
energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which
makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support
system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the
heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted
automatically according to different aluminum spacer. The machine has reached the worldwide technology
with the characteristic of complete function and stable working mode.
² Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
Germany Siemens spares
Adopt Siemens brand, extending working life, stable performance.
Beijing Expo
The device was showed in Beijing expo of May, 2017. It attracted many people’s eyes.
JINAN KATION TRADING CO.,LTD.
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery
and related auxiliary equipment for the glass deep processing industry and the door and window construction
industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows &
doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass
processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported
glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries
and regions. We have established a perfect international business relationship with 10 powerful agents and made an
endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and
honesty, wins the future with you together!
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding
customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
