Place of Origin:
China
Brand Name:
Lijiang
Certification:
CE
Model Number:
LJTB01
LIJIANG GLASS-FOR WORLD PROCESSING GLASS MANUFACTURE SERVICE

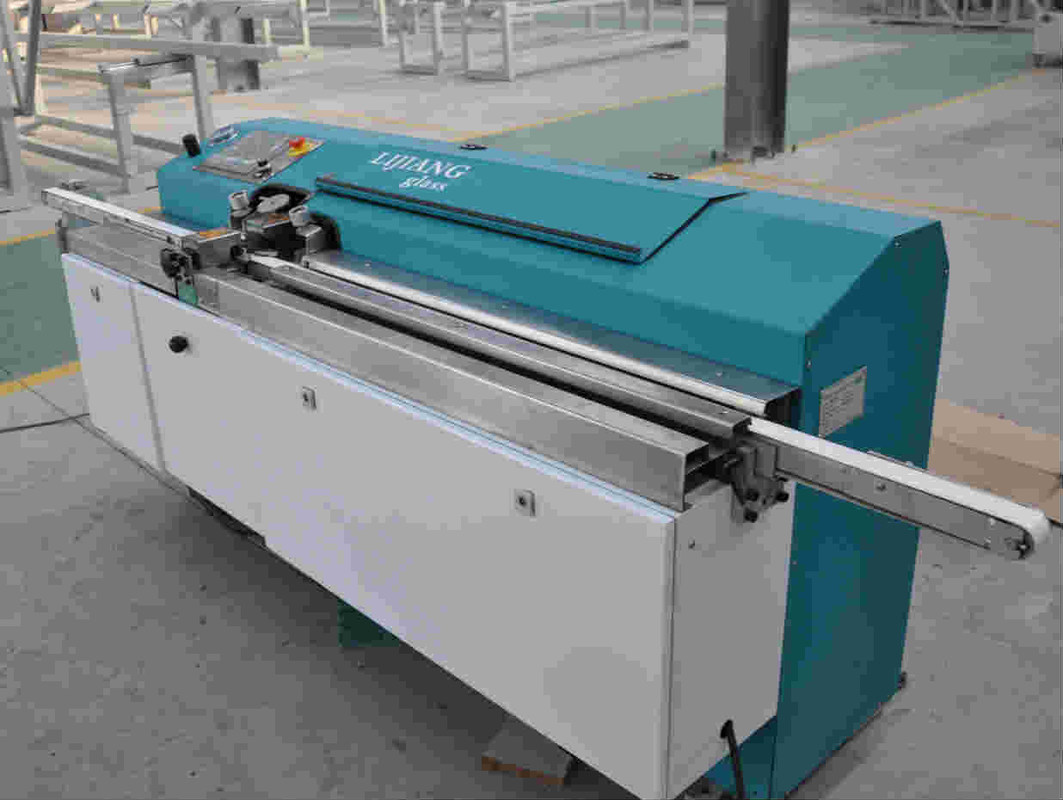

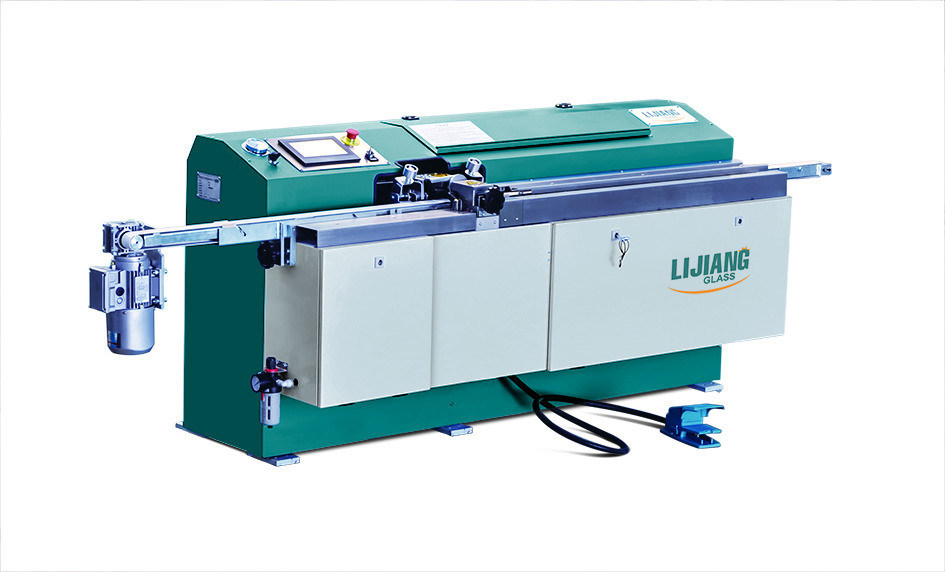

Butyl Extruder Machine LJTB 01
Butyl Extruder Machine LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now.
² Technical Data
|
Squeeze pressure |
10-18MPa |
|
Temperature |
110~140℃ |
|
Aluminum spacer width |
4-30mm |
|
Speed |
0-47m/min |
|
Diameter of butyl cylinder |
200mm |
|
Air supply |
0.4m³/min |
|
Air pressure |
≥0.6MPa |
|
Total power |
380V, 5KW, 50HZ |
|
Dimension |
2600×680×1100mm(L×W×H) |
|
Weight |
650kg |
• PLC control system, touch screen interface
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
• with preheating function
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of butyl
