Product Details:
|
| Production Name: | Glass Cleaning And Drying Machine | Application: | Glass Washing |
|---|---|---|---|
| Brushes: | 6 Soft Brushes | Material: | Stainless Steel 304 |
| Working Speed: | 2- 10 M/min | Glass Thickness: | 3 - 15mm |
| Usage: | Glass Processing | ||
| Highlight: | vertical glass washer,industrial glass washer |
||

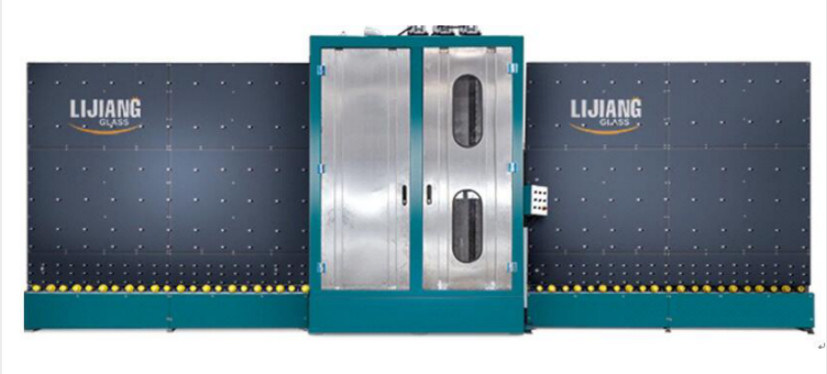

Product Name: Vertical Glass Washing Mashing
Machine Type: Insulating glass production line
Fuction:vertical washing machine can complete the following functions: pre-cleaning, cleaning and drying of white glass and low-e glass.
Feature of Glass Washing Machine
1.Automatic identify first glass and second glass, no waiting time for glass washing
2.PLC control system, touch screen interface.
3.High product efficiency, continuous glass washing.
4.Cleaning Area is used by stainless steel and anti rust material, durable long time use.
5.Water tank automatic temperature control water refining system.
6.Automatic detect low-e & high performance glass
7.Wash online and offline low-e glass, automatically recognizes Low-e film

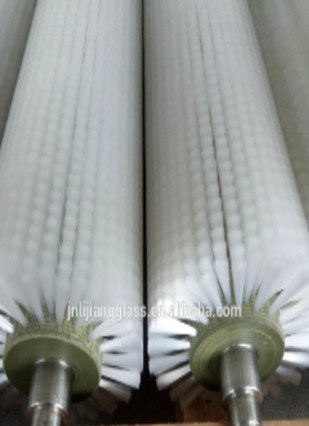

8.The washing machine uses six soft (Low-e) brushes with the 01mm diameter only.
It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.
9.The air knife can automatically adjust the width of the air knife according to the thickness
Tech Parameters
| Power supply | Voltage(V) | 380 |
| Frequency (Hz) | 50 | |
| Main power | kW | ≈35 |
| Washing speed | m/min | 1~7 |
| Max high speed | m/min | 10 |
| Min glass size | mm | 450×280 |
| Max glass size | mm | 2500×4000 |
| Glass thickness | mm | 3~15 |
| Roller height | mm | 500±20 |
| Total weight | kg | ≈3500 |

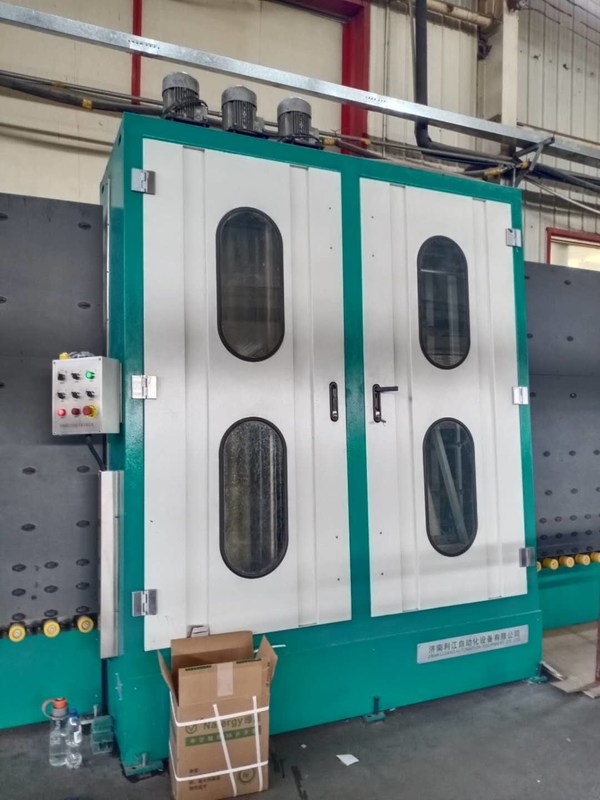

Detail picture
Related products
Vertical Automatic Insulating Glass Production Line
Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
Main feature
1.Adopt siemens control system ,keep stable performance
2.Using intelligent intermittent energy-saving working methods
3.Applicable to produce stepped IG,triple IG and shaped IG.
4.Pressing way presses IGUs by hydraulic station with pressure, it guarantees the precise pressure.
It adopts 3 micro switches,which divide the pressing part into 4 sections.Each micro switch receives the signal and adds a part of the working area. When the corresponding micro switch is not touched, the region does not work.The work area can be divided in this way.
Main Parameters
| Washing speed | 2~10m/min |
| Max.working speed | 45m/min |
| Washing glass thickness | 3~15mm |
| Max.insulating glass thickness | 60mm |
| Conveyor height | 500mm |
| Min.glass size | 450×280 |
| Max.glass size | 2500×3500 |
