Automatic Desiccant Filling Machine For Filling Molecular Sieve Drying

Large Image : Automatic Desiccant Filling Machine For Filling Molecular Sieve Drying

Product Details:

Place of Origin:	JINAN CHINA
Brand Name:	LIJIANG GLASS
Certification:	CE
Model Number:	LJGZ2020

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD
Packaging Details:	Wooden box or Container
Delivery Time:	15 days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per month

Contact Now

Automatic Desiccant Filling Machine For Filling Molecular Sieve Drying

Description

Production Name:	Automatic Desiccant Filling Machine	PLC:	Siemens
Filling Time:	Adjustable	Drying Barrel:	Big Barrel Or Normal Barrel
Spacer Type:	Rectangle	Arc Corner Frame:	Maximum Radium 120mm
Highlight:	double glazing production , insulating glass line

Automatic Desiccant Filling Machine For Filling Molecular Sieve Drying

Automatic Desiccant Filling Machine For Filling Molecular Sieve Drying 0

Max. frame size	2000mm2000mm (2500mm2500mm)
Min. frame size	300mm*250mm
Aluminum specifications	6A- 27A
Air source	≥0.65MPa
Power supply and power consumption	AC220V 50Hz 1KW
Molecular sieve diameter needed	0.5-0.9 mm or 1.0 – 1.5mm
Dimension	1100mm1100mm3600mm

Main Features of the automatic desiccant filling machine :

1. Adopt Siemens PLC control system

2. Touch screen interface, simple and visible

3. The machine height can be adjusted according to the size of spacer frame

4. Automatically loading and replenish molecular sieve

5. Double tubes for unloading to increase filling speed

6. Filling time can be adjusted

7. Automatically drilling, filling and sealing

8. Core parts are imported brands

9. Using big plastic barrel, save feeding time and improve efficiency (Optional)

10. Protection device for machine head (Optional)

11. Filling arc frame (Optional)

12. Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes

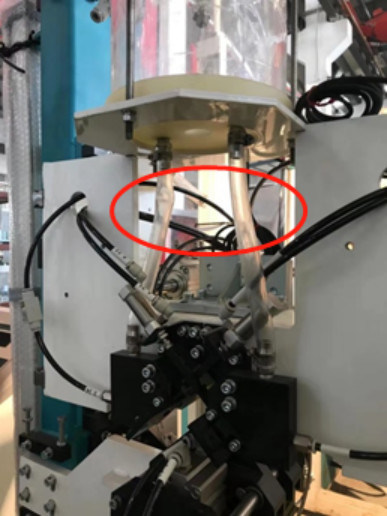

Automatic Desiccant Filling Machine For Filling Molecular Sieve Drying 1

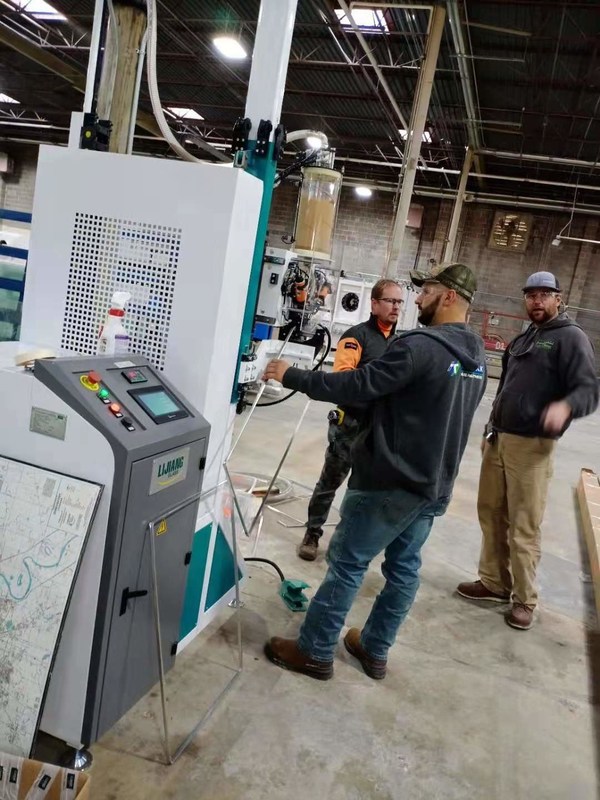

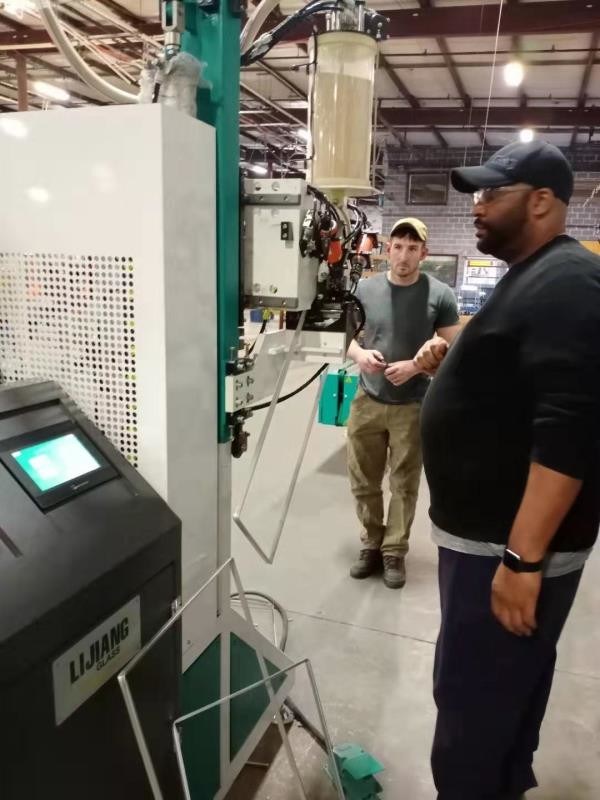

The desiccant filling machine in customers' factory:

Automatic Desiccant Filling Machine For Filling Molecular Sieve Drying 2

LIJIANG COMPANY INTRODUCE:

LIJIANG’ new factory covers an area of 20000 square meters, has more than 100 employees, 6 people with middle and senior technical titles, 8 full-time technical R & D personnel, 3 production workshops (welding sheet metal workshop, machining workshop and assembly workshop) and technical R & D department, and has an independent international trading company (JINAN KATION). The production management and sales system of the enterprise adopts the advanced ERP and CRM management software in China to build an efficient, accurate, united and orderly high-end team.

JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD

Address: Block B 1307, Green Square, Huaiyin District, Jinan, China

Tell : 0086 0531-85960498 Fax : 0086 0531-87562846

Salesperson: Hermione (+86 18353163989 / +86 13001733235)

Email: sales01@lijiang-glass.com

Website : www.lijiang-glass.com / www.insulatingglassproductionline.com

Automatic Desiccant Filling Machine For Filling Molecular Sieve Drying 5
