Product Details:
|
| Production Name: | Vertical Glass Washing Machine | Brand: | JINAN LIJIANG AUTOMATION EQUIPEMNT CO.,LTD |
|---|---|---|---|
| Brushes: | 6 Soft Brushes | Material: | Stainless Steel |
| Glass Thickness: | 3 - 15mm | ||
| High Light: | glass cleaning machine,vertical glass washer |
||
1. Use way

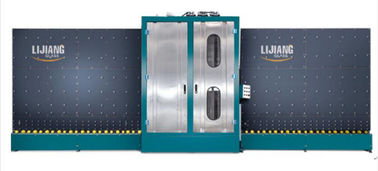

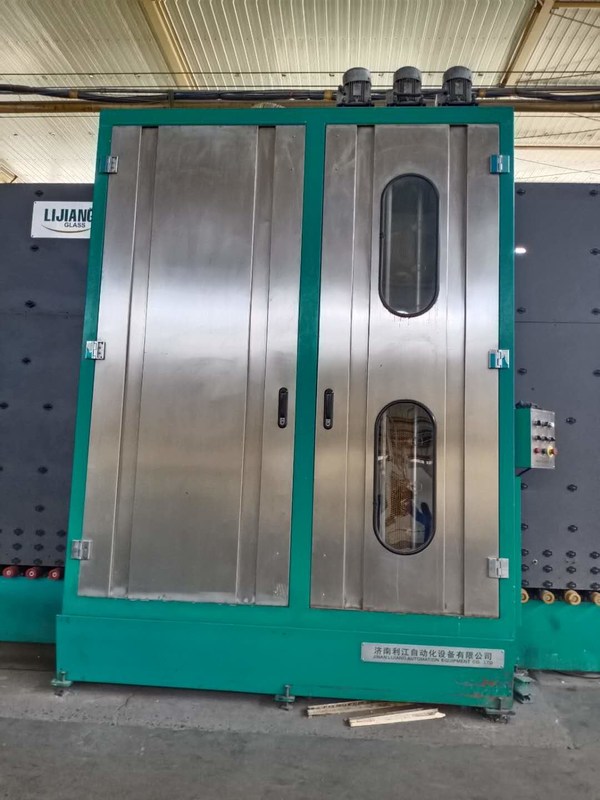

LJQXJ2535 vertical washing machine can complete the following functions: pre-cleaning, cleaning and drying of white glass and low-e glass.
LJQXJ2535 vertical washing machine is in the production of slot aluminum insulating glass. The washing machine has the advantages of small occupation area, high efficiency, reliable performance and convenient maintenance.
2. Parameters
| Power supply | Voltage(V) | 380 |
| Frequency (Hz) | 50 | |
| Main power | kW | ≈35 |
| Washing speed | m/min | 1~7 |
| Max high speed | m/min | 10 |
| Min glass size | mm | 450×280 |
| Max glass size | mm | 2500×4000 |
| Glass thickness | mm | 3~15 |
| Roller height | mm | 500±20 |
| Total weight | kg | ≈3500 |
3.Main feature of glass washing machine

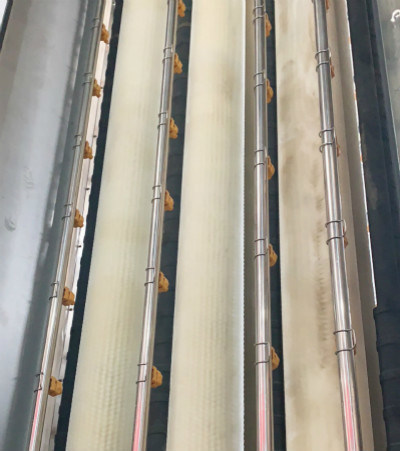

Cleaning and water tanks are made of stainless steel and corrosion resistant materials, and the transfer rollers are acid and alkali resistant rubber rollers, which are automatically adjusted according to the glass thickness. The pre-cleaning section adopts stepless frequency conversion speed regulation, and the glass can run smoothly at the right speed.
4.Related products
Automatic Insulating Glass Production Line LJBZ2535G
Automatic Insulating Glass Production Line LJBZ2535G adopt a new technology that uses air-floating technology to transport glass,it is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
The new air – floating technology uses air to support glass and transfer glass. When glass is washed clearly from the washing machine, using air to transport the glass, it won't be contaminated. Ensure that the produced insulating glass is of the highest quality.
Main functions
1). Making double IG units
2). Making triple (3-layer) IG units
3). Making low-e IG units
4). Making four-sides IG units
5). Making shaped IG units
6). Filling argon gas automatically
Technical data
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
