Product Details:
|
| Production Name: | Aluminum Spacer Bending Machine | Spacers Racks: | 4 Groups |
|---|---|---|---|
| Spacer Width: | 5.5mm - 27mm | Minimum Spacer Size: | 250mm*200mm |
| Maximum Spacer Size: | 2000mm*2000mm | Application: | For Glass Windows And Insulating Glass |
| High Light: | double glazing production,insulating glass line |
||

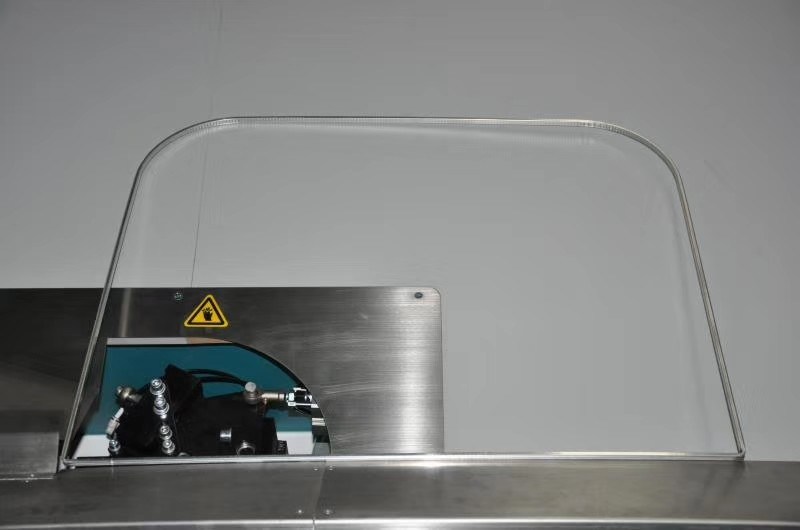

LJZW2020 automatic spacer bending machine is used to bend aluminum spacer frame for making glass windows and insulating glass. The spacer bending machine is always used together with desiccant filling machine and butyl extruder machine. The based function of the LJZW2020 spacer bending machine are bending rectangle and other 8 shapes. However, the spacer frame with arc corner is optional function. There are also other many optional functions to help you working easily and efficiently.
Optional functions :
• Connect to ERP system (Optional)
• USB input function, read the excel format file directly
• Automatically drill holes for filling argon gas (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)

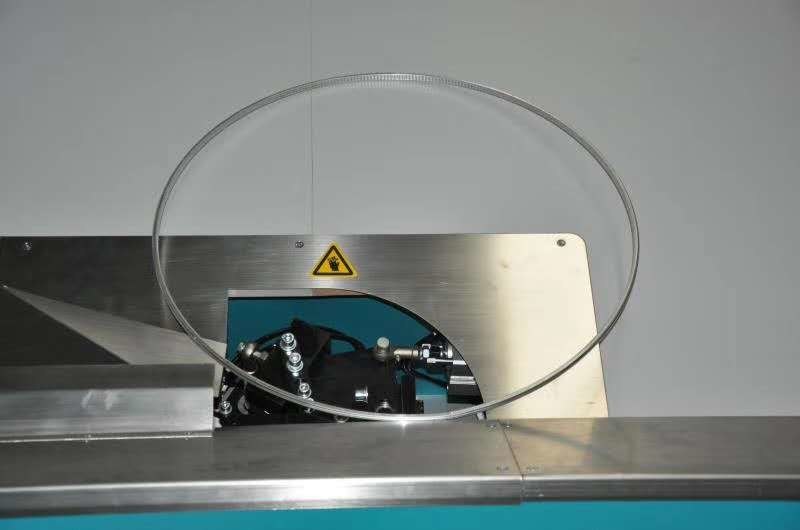

• Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A).
Different sizes of aluminum bars require different size tools. (Optional)
• 4 groups of storages (2 or 12 groups of storages can be optional)
1. Automatically cutting, feeding and bending aluminum spacers.
2. Continuous bending aluminum spacer.
3. 4 racks for storing different sizes of aluminum spacers.
4. Using Germany siemens PLC.
5. USB function can directly read datas.
6. Automatic framing of large size aluminum frame
7. Automatically avoid the pins of spacers.
Other types of spacer bending machine for warm-edge spacer and stainless steel bars are customerized by customers' needs.
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
LIJIANG COMPANY :

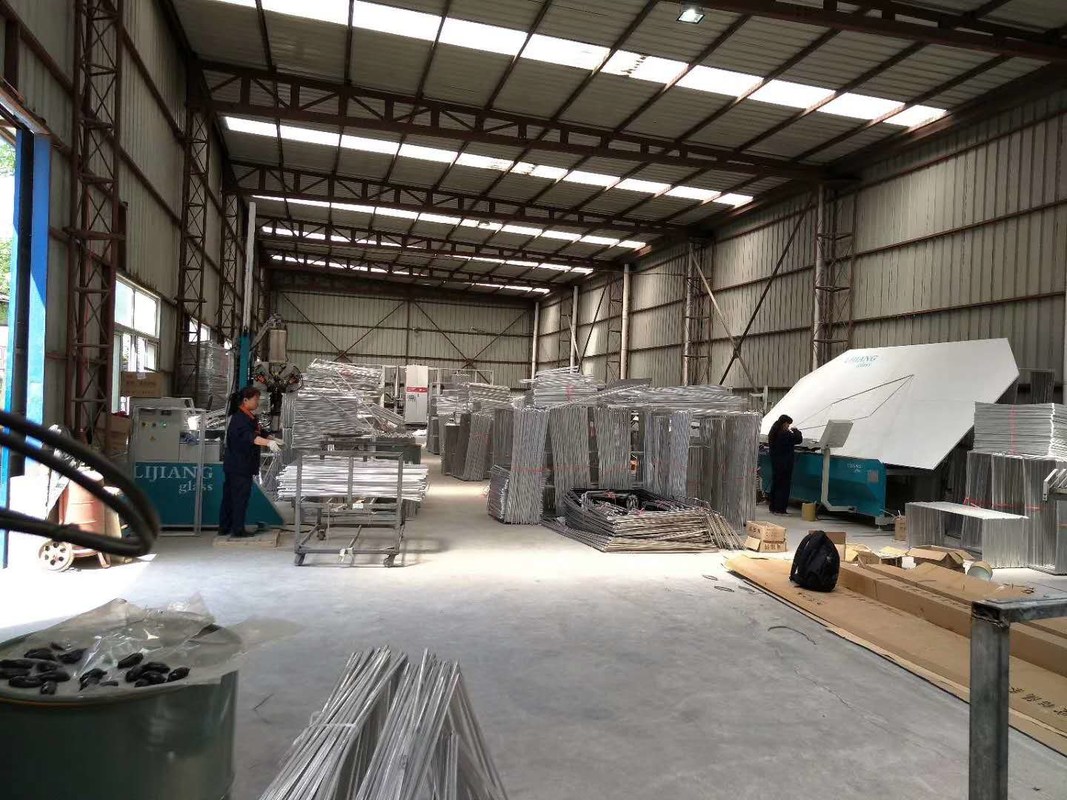

LIJIANG’ new factory covers an area of 20000 square meters, has more than 100 employees, 6 people with middle and senior technical titles, 8 full-time technical R & D personnel, 3 production workshops (welding sheet metal workshop, machining workshop and assembly workshop) and technical R & D department, and has an independent international trading company (JINAN KATION). The production management and sales system of the enterprise adopts the advanced ERP and CRM management software in China to build an efficient, accurate, united and orderly high-end team.
