Product Details:
|
| Name: | Automatic Butyl Adhesive Coater | Usage: | Butyl Coating |
|---|---|---|---|
| Application: | Insulating Glass Processing | Speed: | 0-47m/s |
| Brand: | Siemens | Aluminum Spacer Width: | 6A-27A |
| Diameter Of Butyl Cylinder: | 200mm | Power: | 380V,5.7kw |
| Dimension: | 2800*700*900mm | ||
| High Light: | silicone extruder machine,double glazing equipment |
||
Application: coating the first layer of sealant butyl rubber for hollow glass
Brand: Lijiang glass
Model:LJTB01
Function: apply butyl rubber on both sides of the middle space strip
Processing material: butyl rubber

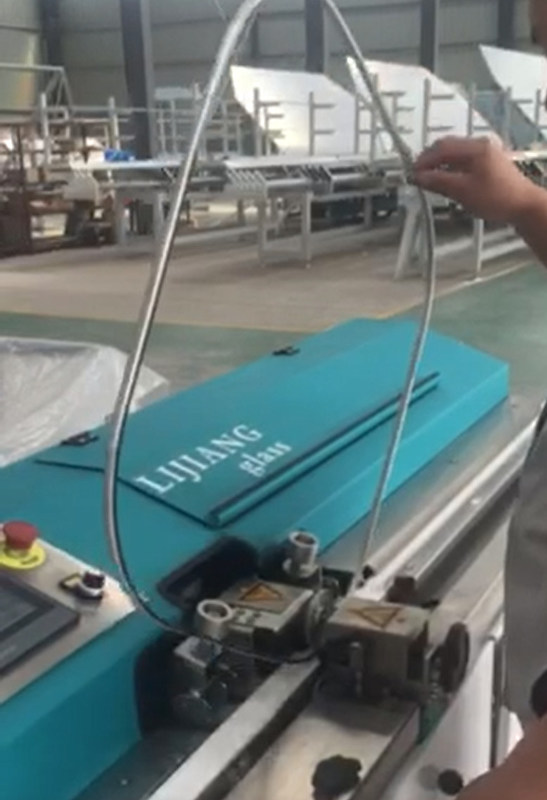

Product overview of automatic butyl adhesive coater
Butyl adhesive coater is used for spreading aluminum spacer frames evenly with hot melt butyl. Butyl coating machine uses large electrical control panel which makes the operation more easier than before.
Butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode.
The feature of Butyl Extruder machine
1.The coating machine can be Quickly speed of warming,Up to 47m / min,improve work effect.
2.KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
3.Glue cylinder of Butyl coating equipmen adopt the upright structure, easy to change butyl.
4.The coating machine can Filter out debris automatically through auto exhaust, keep spreading quickly and evenly without bubbles.
5.Butyl extruder have Extruder head height adjustment structure for glue to leave blank
6.Germany Siemens parts
Butyl coating machine adopt Siemens brand, stable performance.
Technical Data of butyl coating machine
| Coating speed | 0-47m/min |
| Aluminum spacer width | 6A-27A |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Air pressure | >0.6MPa |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Dimension | 2800*700*900mm |
| Total power | 380V, 5KW, 50HZ |
Related products
Main feature
Automatic butyl extruder spreading machine can automatic spread butyl extruder .
1.Automatic butyl extruder spreading machine can automatic spreading circular frame ,in addition,aim to big frame,it has mechanical hand to support and can load two barrels if butyl.
2.Single function partsare equipped with manual functions,easy adjustment.
Technical parameter
| Aluminum spacer width | 6-24mm |
| Gluing Speed | 2-50m/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 7KW,50HZ |
| Dimension | 10000×1310×3150mm |
