Product Details:
|
| Name: | Glass Film Remover | Application: | Glass Processing |
|---|---|---|---|
| Max Glass Size: | 2500*4500mm | Min Glass Size: | 300*350mm |
| Edge Deleting Speed: | 0-15m/min | Glass Thickness: | 3-15mm |
| Conveyor Speed: | 30m/min | Grinding Wheel Width: | 10/12/15mm |
| Servo Control System: | 6 | Usage: | Insulating Glass Processing |
| High Light: | glass grinding equipment,glass edge polishing machine |
||
Low-E glass film remover is used to delete the edge film of the Low-e glass. High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Production name: Automatic low-e glass edge deleting machine
Product name: Low-E glass film remover
Brand and Model: LIJIANG GLASS LJCM2545
Voltage: 380V
Certification: CE
Warranty: 1 year
After - sales:Engineers available to service machinery overseas
Main feature :
1.Automatically distinguish low-e surface
2.Two-way glass access
3.Edge deletion is adjustable
4.PLC control system,touch screen interface
5.Automatically measure size
6.High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
7.Intelligent control system, can recognize batch processing
8.The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation.
Technical data of vertical edge deleting machine
| Max.glass processing size | 2500*4500mm |
| Min.glass processing size | 350*500mm |
| Glass thickness | 3-15mm |
| Edge deleting width | 10-50mm |
| Glass conveyor speed: | 30m/min |
| Edge deleting speed | 0-15m/min |
| Abrasive wheel width | 10/12/15mm |
| Air supply | Flow 0.2m3/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | 8000*2500*3400mm |

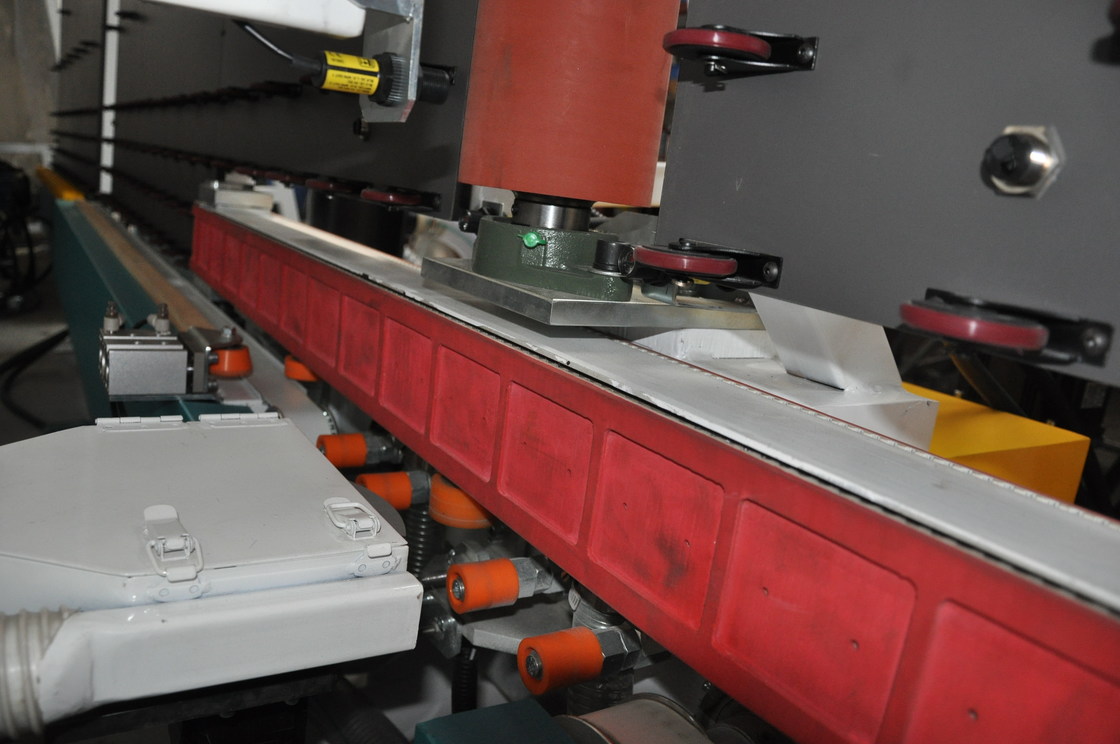

Product picture
Related products
Mainly designs :
(1) Seal double units, triple units, (four sizes) step units and shaped units.
(2) Could seal eight shapes of IG units.
Mainly feature :
1.Adopt 8 servo motors
2. Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
3.The glass corners are full without air bubbles, smooth surface, no need to
4. Full automatic and high-efficiency machine
5. Automatically measure glass size, glue depth and glue speed with linear adjustment
6. Adopt timing belt to keep smooth convey with accurate position
Factory
FAQ
Q:Is LIJIANG GLASS a factory or a trading company?
A: A factory in Jinan city.
Q: What is the system of LIJIANG’s after sale service?
A: LIJIANG has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
