Product Details:
|
| Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
| Speed: | 0-47m/min | ||
| Highlight: | double glazing production,insulating glass line |
||
LJTB01 Butyl Extruder Machine
Application

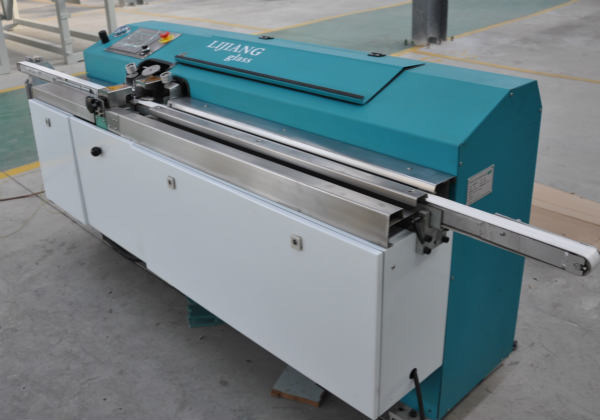

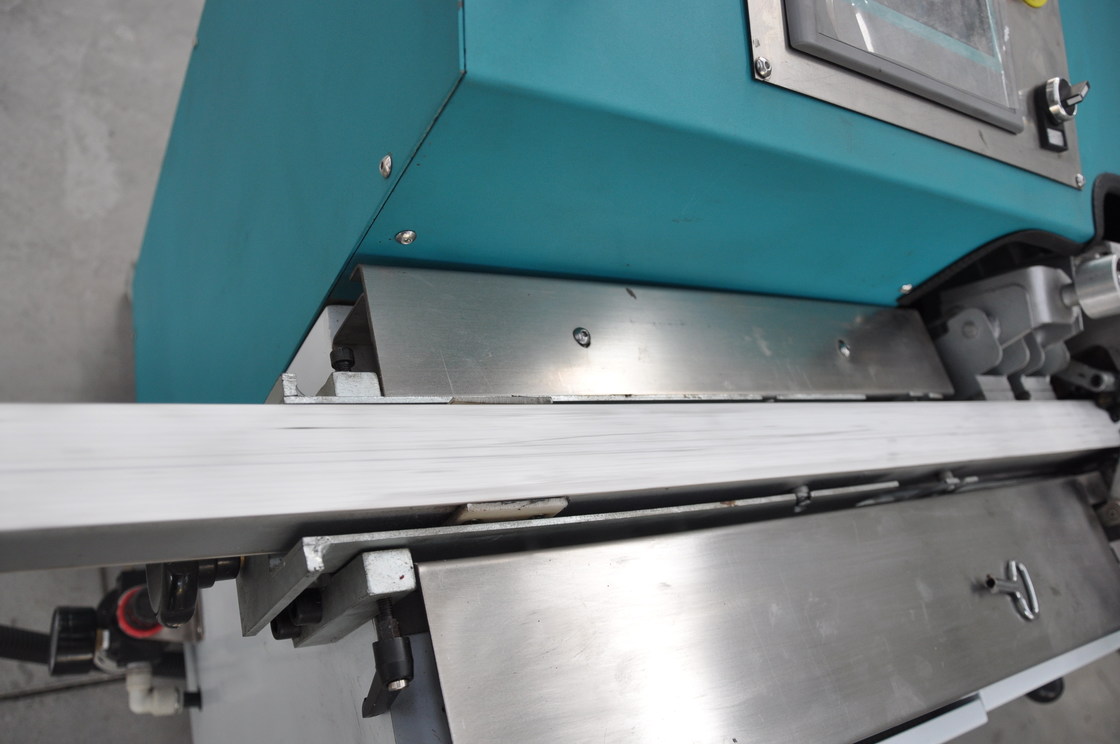

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames
evenly with hot melt butyl. This equipment use large electrical control panel which makes the
operation more easier. The conveyor of aluminum is controlled by frequency converter, and
the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China.
It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic
supercharging system, which makes the squeezing pressure more stable. The dispensing
cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong
the life of squeezing system and set the heating time in 24 hours with electricity and air pressure.
The distance of squeezing head can be adjusted automatically according to different aluminum
spacer. The machine has reached the worldwide technology with the characteristic of complete
function and stable working mode.
Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
² Other features
1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.
JINAN KATION TRADING CO.,LTD.
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery and
related auxiliary equipment for the glass deep processing industry and the door and window construction
industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows
& doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive
glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019,
we exported glass machines and materials to America, South America, Europe, the Middle East, India and so
on, nearly 30 countries and regions. We have established a perfect international business relationship with 10
powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech,
with craftsmanship, profession and honesty, wins the future with you together!
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding
customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
